Weidmüller 1007920000 ZP 2.5/1AN/QV GN Technical Overview

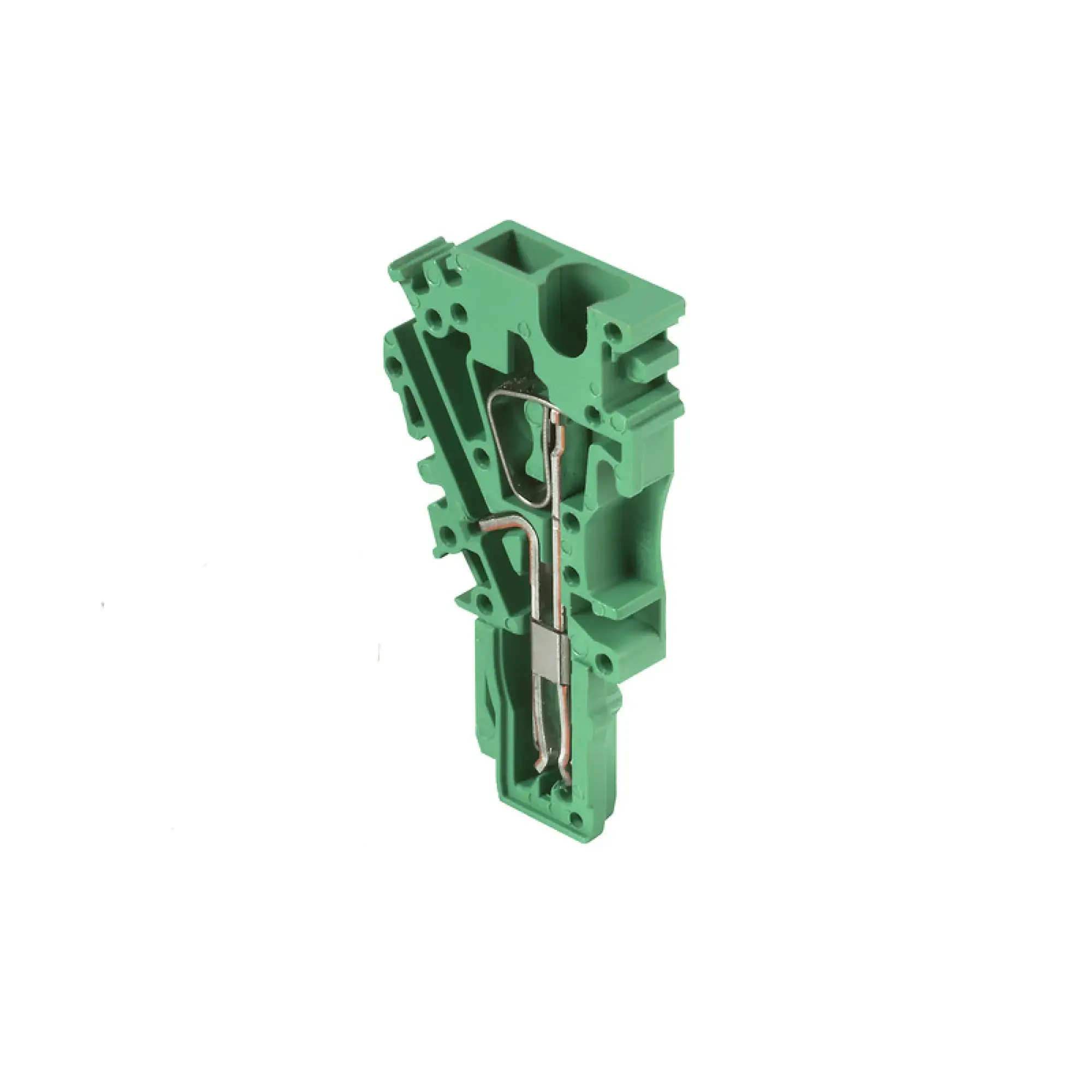

The Weidmüller 1007920000 ZP 2.5/1AN/QV GN plug-in connector is a green, single-pole Z-series accessory created for direct mounting in terminal block systems. In industrial panel design, color variants are not merely cosmetic. They can contribute to identification strategy, maintenance clarity, and more intuitive system organization. That makes the Weidmüller ZP 2.5/1AN/QV GN connector particularly relevant wherever visual differentiation is part of the electrical design language.
The product is listed as a Z-series, plug-in connector, direct mounting variant with a published size of about 41 mm depth, 23 mm height, and 5.1 mm width. It is a 1-pole plug in the 2.5 mm² class. Product data for this variant and its closely related family members shows a conductor range from 0.13 mm² to 4 mm², AWG 26 to 12, and a technical profile centered on 500 V rated voltage and 24 A nominal current.
Why the Green Version Matters
The green housing of the Weidmüller 1007920000 can be useful in terminal assemblies where color coding supports function grouping, maintenance logic, or safety-oriented differentiation. In many cabinets, visual structuring saves time during troubleshooting because it reduces the effort required to identify the correct accessory position.
This is one of the practical reasons users search for specific color variants instead of a generic part family. Color becomes part of the operational usability of the cabinet, especially over long service intervals.
Technical Format and Handling
As a single-pole plug-in connector, the product is suitable for modular wiring approaches that prioritize flexibility over multi-pole density. The published 41 mm depth, 23 mm height, and 5.1 mm width also make it a compact solution for terminal systems that need controlled spacing.
Comparable product data in the same family indicates a 10 mm stripping length, top connection direction, and support for both solid and finely stranded conductors. These are the kinds of features that support smooth day-to-day work in professional panel-building environments.
Electrical Performance
The Weidmüller ZP 2.5/1AN/QV GN plug-in connector belongs to a family with 2.5 mm² rated cross-section, 500 V rated voltage, and 24 A nominal current. Approval-related values on family pages also include 20 A / 300 V and 5 A / 600 V in certain certification categories. These figures help position the connector as a serious industrial accessory rather than a low-demand convenience component.
Because the product is intended for the additional assembly of terminal blocks, the electrical performance must be considered together with overall terminal system compatibility and panel design.
Where It Fits Best
The Weidmüller 1007920000 terminal plug is well suited to machine control cabinets, automation panels, retrofit terminal expansions, and installations where color-based organization is a real operational benefit. It also makes sense in service-heavy environments where future troubleshooting speed matters.
Weidmüller 1007920000 For more information about Weidmüller, it helps to compare the green and non-green Z-series variants as part of a complete terminal identification strategy.
Weidmüller 1007920000 FAQ
What is the Weidmüller 1007920000 ZP 2.5/1AN/QV GN?
It is a green 1-pole Z-series plug-in connector for direct mounting in terminal block systems.
What dimensions are listed for this variant?
The product page shows approximately 41 mm depth, 23 mm height, and 5.1 mm width.
What conductor range does the family support?
Comparable family data lists conductor sizes from 0.13 mm² to 4 mm², including solid and fine-stranded conductors.
Why choose the green version?
The green housing helps with visual organization, maintenance logic, and functional differentiation inside terminal block assemblies.
What are the key electrical values?
The ZP 2.5 family is associated with 500 V rated voltage, 24 A nominal current, and a 2.5 mm² rated cross-section.
Where is this connector commonly used?
It is commonly used in industrial control panels, machine cabinets, and modular terminal layouts where compact single-pole connectivity is preferred.
