Weidmüller 1007930000 ZP 2.5/1AN/QV ZA Connector Guide

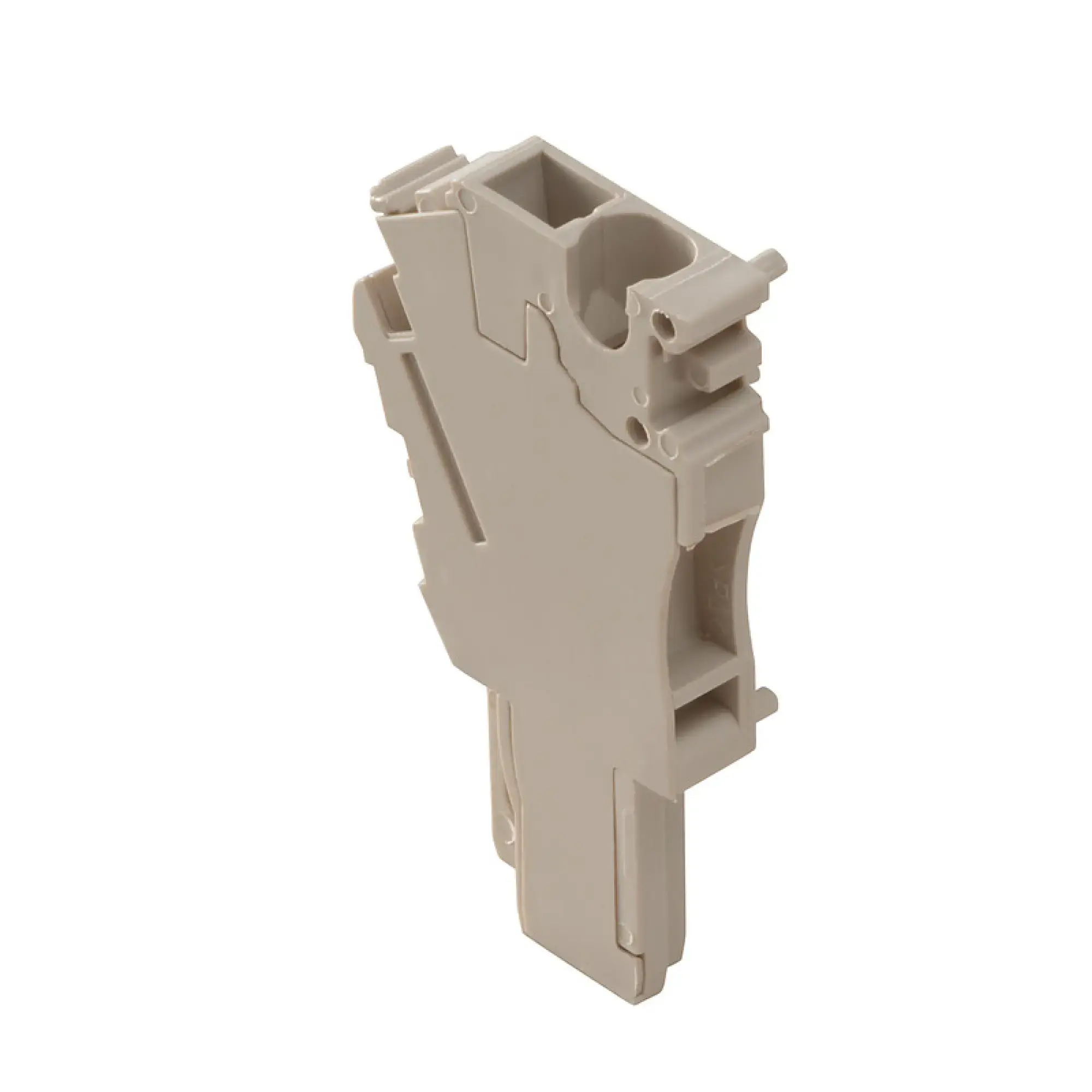

The Weidmüller 1007930000 ZP 2.5/1AN/QV ZA plug-in connector is a single-pole Z-series accessory intended for direct mounting within terminal block systems. It is designed for users who need a compact, modular, and standards-based solution for terminal expansion or structured cabinet assembly. In professional control panel work, these connector variants matter because they support repeatable installation quality and simplify future service access.
The product is listed as a Z-series, plug-in connector, direct mounting version. It belongs to the 2.5 mm² class and follows the same general technical profile as related ZP 2.5 single-pole variants, including support for 0.13 mm² to 4 mm² conductors, AWG 26 to 12, and 500 V / 24 A family-level rating values. That makes the Weidmüller 1007930000 connector a practical choice in industrial terminal systems where compactness and modularity are both priorities.
Purpose of the Weidmüller 1007930000
The connector is intended for the additional assembly of terminal blocks, which means it helps extend or adapt a terminal layout without requiring a completely different connection approach. This kind of modular accessory is valuable in industrial systems because it allows engineers and panel builders to keep cabinet architecture organized while also reducing assembly effort.
Single-pole plug-in accessories are especially useful when terminal layouts need flexible circuit-by-circuit structuring. They also support maintenance work because individual positions can be handled more selectively than with larger grouped accessories.
Core Technical Profile
The Weidmüller ZP 2.5/1AN/QV ZA belongs to a family with a 2.5 mm² rated cross-section, 500 V rated voltage, and 24 A nominal current. Published family data also shows approval-related values such as 20 A / 300 V and 5 A / 600 V in cCSAus and cURus categories. Those details are useful in multinational project planning and product documentation.
Conductor compatibility from 0.13 mm² to 4 mm² gives the connector a broad practical range, while AWG 26 to 12 improves its usability in projects that combine metric and AWG-based wiring references. In many cabinets, that versatility is more important than headline current values alone.
Material and Standards Considerations
Comparable family variants reference IEC 60947-7-1, Wemid insulation material, and UL 94 V-0 flammability classification. These characteristics matter because terminal accessories must remain reliable over long service periods under varying thermal and environmental conditions.
Even when users search by part code only, the material and standards profile of the family gives useful context for evaluating compatibility and long-term reliability. That is especially relevant in industrial control cabinets that remain in operation for many years.
Typical Use Cases
The Weidmüller 1007930000 single-pole plug-in connector is suitable for machine control panels, industrial automation cabinets, terminal retrofits, and modular wiring strategies where one connection position at a time is preferred. It is a sensible choice wherever direct-mounting accessories help streamline assembly or future maintenance.
Weidmüller 1007930000 For more information about Weidmüller, comparing the full ZP 2.5 single-pole range is usually the best way to confirm the right variant for a specific terminal layout.
Weidmüller 1007930000 FAQ
What is the Weidmüller 1007930000 ZP 2.5/1AN/QV ZA?
It is a single-pole Z-series plug-in connector designed for direct mounting and the additional assembly of terminal blocks.
What conductor sizes can it handle?
Comparable family data shows support from 0.13 mm² to 4 mm², which covers many common industrial conductors.
What are the main electrical ratings?
The family is associated with a 2.5 mm² rated cross-section, 500 V rated voltage, and 24 A nominal current.
Why would a user choose a single-pole variant?
A single-pole variant allows more selective circuit organization and greater flexibility in terminal layouts, especially in modular cabinets.
What standard is relevant to this family?
The published family data references IEC 60947-7-1, which is central to terminal block accessory evaluation.
Where is this connector most often used?
It is commonly used in industrial control cabinets, terminal block expansions, and machine-building projects where modular direct mounting is preferred.
