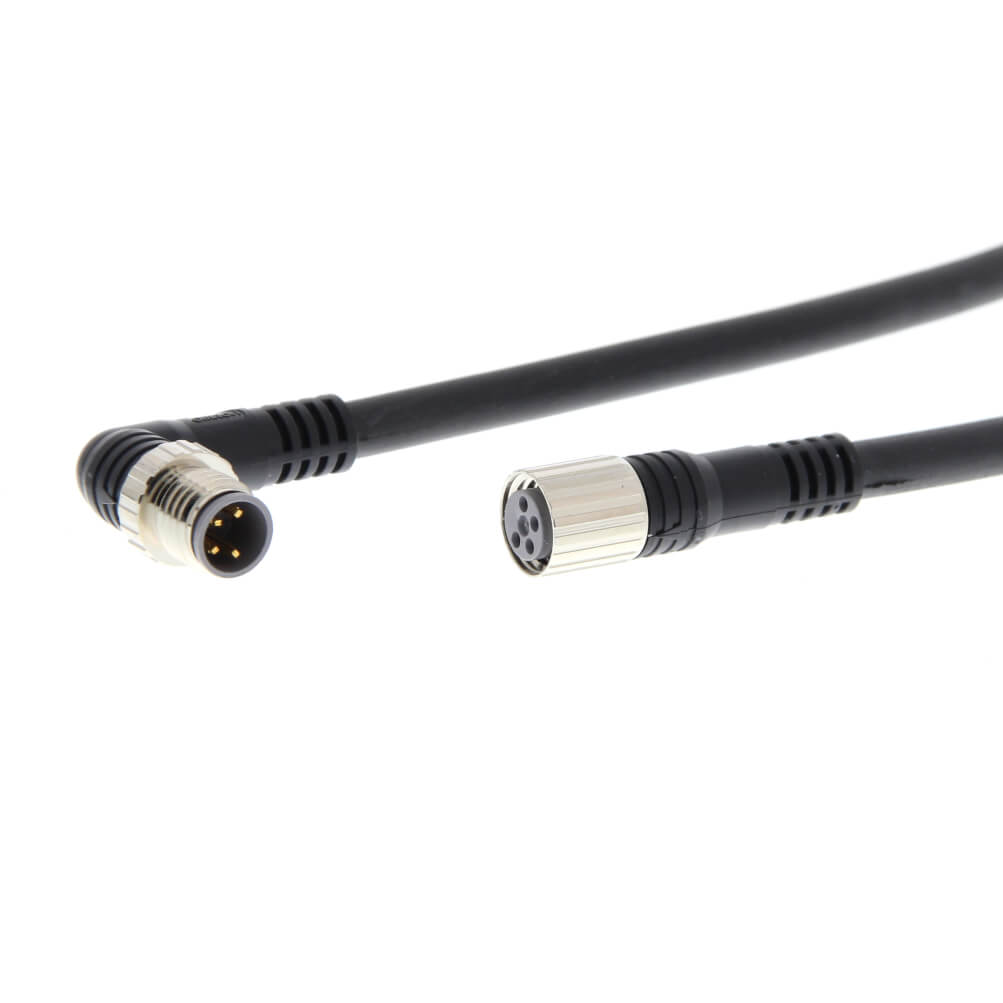

Omron XS3W-M423-405-PR Extension Cable Technical Overview
| Feature | Value |
|---|---|
| Product Type | Extension Cable |
| Series | Omron XS3 Water-resistant Connectors |
| Connector 1 | M8 Straight Socket (Female) |
| Connector 2 | M8 Right-angle Plug (Male) |
| Number of Contacts | 4 |
| Cable Length | 5 m |
| Cable Jacket | PUR Oil-resistant Robot Cable |
| Protection Rating | IP67 |
| Connector Nut Material | Brass |
| Cable Color | Black |
| Primary Application | Industrial Sensor Extension |
The Omron XS3W-M423-405-PR Extension Cable is designed to provide a reliable extension for four-pin M8 industrial connections used in automation systems. Featuring a straight female M8 connector on one end and a right-angle male M8 connector on the other, this cable supports flexible installation while maintaining standardized connectivity. According to the manufacturer’s published specifications, the cable assembly incorporates a 5-meter PUR oil-resistant robotic cable and an IP67-rated sealing structure for industrial operating environments.
Technical Description
The Omron XS3W-M423-405-PR Extension Cable is supplied as a fully assembled extension cable with molded connectors that eliminate the need for field termination. The straight socket enables convenient connection to sensors and field devices, while the right-angle plug helps reduce cable bending where installation space is restricted.
The cable uses a polyurethane outer jacket developed for industrial environments where repeated movement, oil exposure, and mechanical stress are expected. The Omron XS3W-M423-405-PR Extension Cable provides a standardized extension for compatible four-pin M8 devices without altering the electrical characteristics of the connected equipment.
Operating Principle
This extension cable transfers electrical power and signal lines directly through its four internal conductors. As a passive component, it performs no signal conditioning or conversion. Proper connector engagement ensures stable electrical continuity between field devices and control systems.
When both connectors are securely tightened, the sealing mechanism provides IP67 protection against dust ingress and temporary water immersion under the installation conditions defined by Omron.
Typical Applications
- Photoelectric sensor extension
- Proximity sensor wiring
- Machine automation equipment
- Distributed I/O installations
- Packaging systems
- Robotic automation cells
- Automated inspection stations
- Material handling equipment
Industrial Applications
The five-meter cable length is particularly suitable for applications where sensors are installed at greater distances from controllers or distributed I/O modules. It enables organized cable routing while preserving standardized M8 connectivity throughout the installation.
Robotic manufacturing systems, conveyor automation, machine tools, packaging lines, and electronics production equipment commonly require durable extension cables capable of withstanding continuous industrial operation. The PUR robotic cable helps address these requirements while supporting flexible installation.
Advantages
- Factory-installed molded connectors.
- Five-meter extension for longer cable routing.
- Combination of straight and right-angle connectors.
- PUR cable designed for industrial robotic applications.
- Oil-resistant cable construction.
- Four-pin M8 standardized interface.
- IP67 environmental protection.
- Brass coupling nuts for secure mechanical connection.
Industry Examples
Automotive Production
Production fixtures often require longer sensor cable runs between robotic workstations and distributed control panels.
Food and Packaging Equipment
Machines with compact enclosures benefit from the right-angle connector while the extended cable simplifies routing between modules.
Warehouse Automation
Conveyor-mounted sensors can be connected over longer distances using standardized M8 extension assemblies.
Machine Building
Equipment manufacturers can integrate standardized extension cables to simplify maintenance and component replacement.
Selection Considerations
Before selecting an extension cable, verify connector orientation, required cable length, contact configuration, and environmental protection requirements. The five-meter version is appropriate where equipment layout requires extended cable routing without additional junction points.
Omron XS3W-M423-405-PR Additional Omron sensor products are available for compatible industrial sensing and connection solutions.
Omron XS3W-M423-405-PR Frequently Asked Questions
1. What connector configuration does this cable use?
It combines one M8 straight female socket with one M8 right-angle male plug.
2. How many contacts are provided?
The cable includes four electrical contacts.
3. What is the cable length?
The overall cable length is 5 meters.
4. Is the cable intended for robotic applications?
Yes. It uses a PUR oil-resistant robotic cable specified by the manufacturer.
5. Does the cable provide ingress protection?
Yes. When correctly assembled, it meets the IP67 protection rating.
6. Can it be used with M8 industrial sensors?
Yes. It is designed to extend compatible four-pin M8 sensor and device connections.
7. Does the cable change signal characteristics?
No. It functions as a passive extension cable that transfers signals directly.
8. Why choose the 5-meter version?
The longer cable supports installations where sensors must be connected across greater distances while maintaining standardized industrial connectivity.
