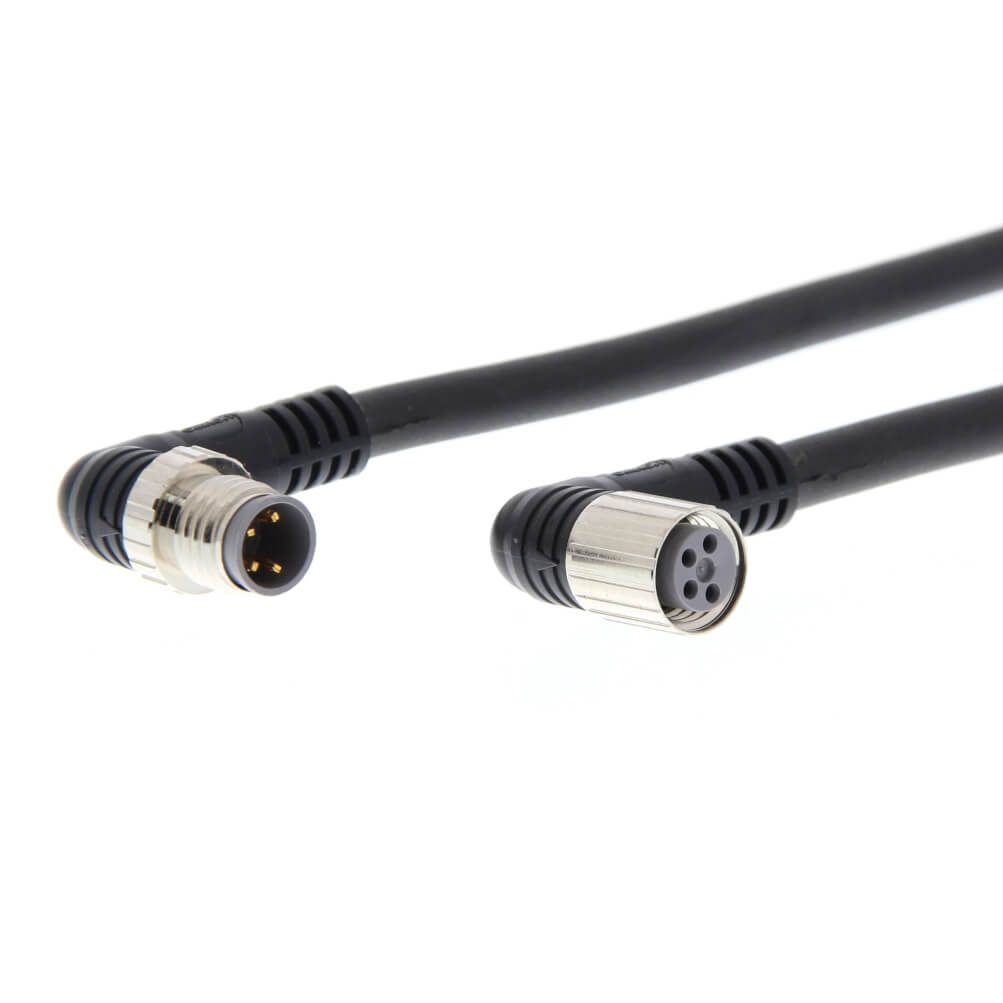

Omron XS3W-M422-402-PR Extension Cable
| Feature | Value |
|---|---|
| Product Type | M8 Extension Cable |
| Manufacturer | Omron |
| Connector 1 | M8 Right-Angle Female |
| Connector 2 | M8 Straight Male |
| Number of Contacts | 4 |
| Cable Length | 2 m |
| Cable Material | PUR Oil-Resistant Robot Cable |
| Rated Voltage | 125 VDC |
| Rated Current | 1 A |
| Protection Rating | IP67 |
| Operating Temperature | 0°C to +70°C |
| Outer Diameter | Ø4 mm |
| Contact Resistance | 40 mΩ max. |
| Insulation Resistance | 1000 MΩ min. at 500 VDC |
| Dielectric Strength | 1000 VAC for 1 minute |
The Omron XS3W-M422-402-PR Extension Cable is designed for industrial automation systems that require dependable M8 connectivity while optimizing cable routing in confined installation spaces. By combining a right-angle M8 female connector with a straight M8 male connector, this cable assembly allows sensors and field devices to be connected without placing unnecessary stress on the connector interface.
Featuring a durable PUR oil-resistant robot cable, the Omron XS3W-M422-402-PR Extension Cable is suitable for applications involving repetitive movement, cable carriers, and environments where oils or mechanical abrasion are present. Its factory-molded construction also helps maintain consistent sealing performance throughout long-term operation.
Technical Description
This model is part of the Omron XS3 waterproof connector series developed for industrial automation equipment. The cable includes four electrical contacts using the standard M8 connection system that is widely adopted for compact sensors, actuators, and distributed automation devices.
The right-angle female connector is particularly useful where installation depth is limited. Instead of extending directly outward, the cable exits at a 90-degree angle, allowing more efficient routing inside compact machinery and reducing cable bending immediately behind the connector.
Working Principle
The extension cable transfers electrical power and signal communication through four conductors while preserving the standard M8 wiring configuration. Both molded connectors are equipped with threaded locking mechanisms that securely fasten the connection and help resist vibration commonly encountered in industrial equipment.
When connected to compatible M8 devices, the sealing structure provides IP67 protection against dust ingress and temporary water immersion, supporting reliable operation in demanding production environments.
Typical Applications
- Photoelectric sensors
- Inductive proximity sensors
- Capacitive sensors
- Machine automation systems
- Packaging equipment
- Assembly machinery
- Robot peripheral devices
- Distributed I/O installations
Industrial Applications
Automotive Production Lines
Compact sensors installed on welding fixtures and assembly stations often require angled cable exits to avoid interference with tooling and moving equipment.
Packaging Automation
The cable enables efficient sensor connections inside machines where available installation space is limited by guards, conveyors, or mechanical components.
Robotic Systems
The flexible PUR cable performs well in robotic applications that involve continuous cable movement while maintaining reliable electrical connectivity.
Material Handling Equipment
Conveyor-mounted sensors positioned near structural frames benefit from the low-profile cable routing made possible by the right-angle connector design.
Omron XS3W-M422-402-PR Advantages
- Right-angle connector reduces installation depth requirements.
- PUR cable offers high resistance to oils and mechanical wear.
- Factory-molded connectors eliminate field termination.
- Four-pin M8 interface supports common industrial devices.
- IP67 protection helps safeguard electrical contacts.
- Suitable for dynamic cable routing applications.
- Threaded locking mechanism improves connection stability.
Selection Considerations
- Confirm that a right-angle female connector matches the equipment layout.
- Verify that the 2-meter cable length is appropriate for the installation.
- Ensure compatibility with four-pin M8 devices.
- Review voltage and current requirements.
- Consider cable movement and bending radius.
- Inspect connector sealing after installation to maintain IP67 protection.
For additional connector configurations and compatible accessories, visit
Omron sensor products.
Omron XS3W-M422-402-PR Frequently Asked Questions
1. What connector configuration does this model use?
It features a right-angle M8 female connector on one end and a straight M8 male connector on the other.
2. What is the cable length?
The cable has an overall length of 2 meters.
3. How many electrical contacts are included?
The cable contains four contacts based on the standard M8 interface.
4. What cable material is used?
The assembly uses a PUR oil-resistant robot cable suitable for industrial environments with repeated movement.
5. Is the cable suitable for moving machinery?
Yes. The PUR cable is designed for applications where flexibility and mechanical durability are important.
6. What protection rating does the cable provide?
When correctly connected to compatible devices, it provides IP67 environmental protection.
7. Does the cable require field assembly?
No. Both connectors are factory molded, allowing immediate installation without manual connector termination.
8. Where is the Omron XS3W-M422-402-PR Extension Cable commonly used?
The Omron XS3W-M422-402-PR Extension Cable is commonly installed in sensor networks, packaging equipment, robotic systems, conveyor lines, and industrial automation machines that use M8 connector technology.
