Omron S8FS-G10012CD

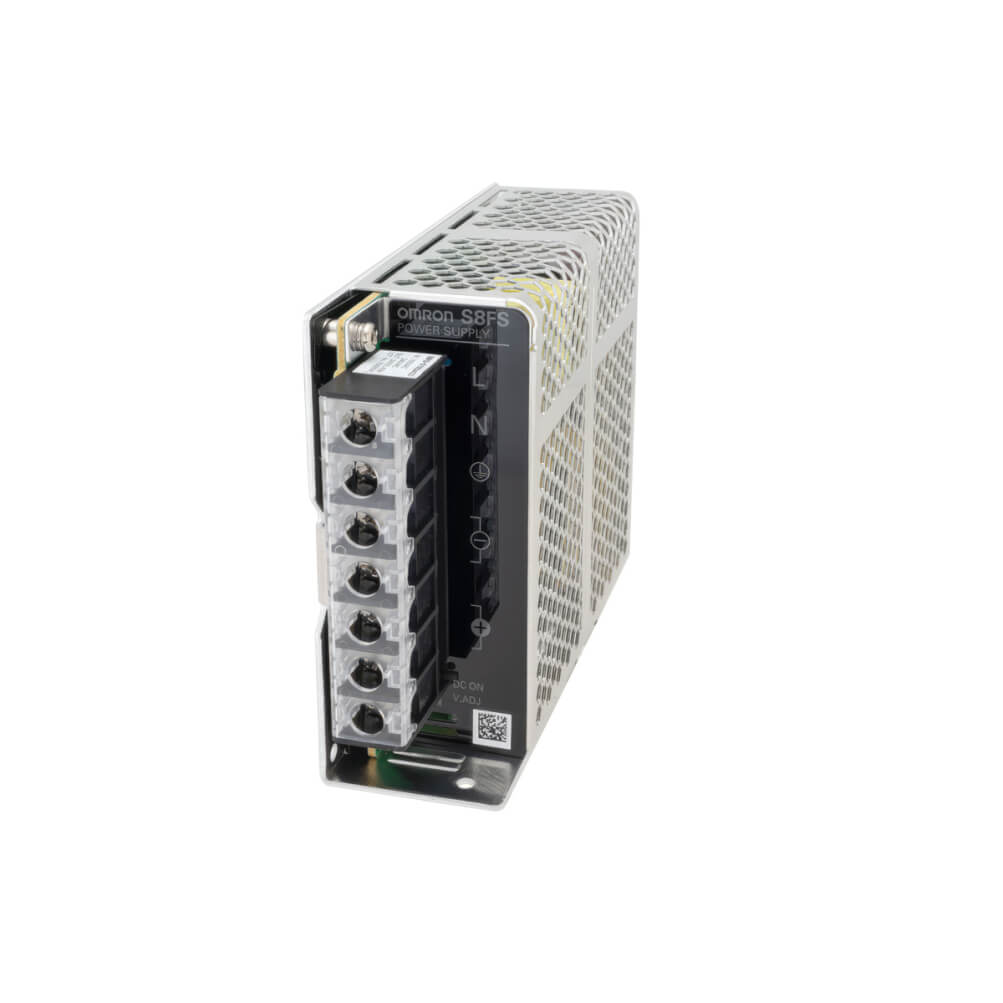

Omron S8FS-G10012CD 100 W 12 VDC DIN Rail Power Supply

The Omron S8FS-G10012CD DIN rail power supply is an enclosed switch-mode unit designed to deliver regulated 12 VDC power within industrial control panels and machinery. It provides 100 W of output power with a rated current of 8.5 A, supporting compatible control electronics, interface devices, relays, indicators, and OEM equipment. Emaconn can assist customers with current pricing, stock checks, delivery information, quotation preparation, and technical product selection.

Electrical Performance for 12 VDC Loads

The S8FS-G10012CD operates from a rated input of 100 to 240 VAC at 50 Hz. Its allowable AC input range extends from 85 to 264 VAC, supporting machinery designed for installation across different regional power networks. The unit also has an allowable DC input range of 80 to 370 VDC.

Any installation using a DC input should be evaluated against the manufacturer’s technical documentation. Engineers must confirm upstream protection, conductor selection, isolation requirements, and compliance with applicable electrical standards.

The 12 VDC output provides a rated current of 8.5 A and a total output capacity of 100 W. Both limits must be observed when calculating the connected load. Continuous consumption, startup peaks, cable losses, ambient temperature, and an appropriate engineering reserve should be included in the assessment.

Technical Specifications

  • Product type: Enclosed switch-mode power supply
  • Phase: Single phase
  • Mounting method: DIN rail
  • Rated AC input: 100 to 240 VAC
  • Allowable AC input: 85 to 264 VAC
  • Allowable DC input: 80 to 370 VDC
  • Output voltage: 12 VDC
  • Rated output current: 8.5 A
  • Output power: 100 W
  • Efficiency: 86%
  • Terminal type: Forward-facing screw terminal block
  • Temperature range: -20 to 70°C
  • Number of output branches: One
  • Dimensions: 97 mm wide, 38 mm high, and 129 mm deep

The 86% efficiency rating should be considered as part of the control-panel thermal calculation. Even when the connected load remains below 100 W, ventilation, spacing, mounting orientation, enclosure temperature, and adjacent heat sources can influence operating conditions.

Applications in Industrial Automation

The Omron S8FS-G10012CD can be evaluated for packaging equipment, assembly systems, inspection machinery, production monitoring installations, test equipment, and material-handling systems. It may also be suitable for OEM electrical assemblies requiring a dedicated 12 VDC control supply.

Compatible loads may include interface circuits, relays, indicators, communication accessories, and selected electronic control devices. The nominal voltage of every connected component must be confirmed before installation. Equipment designed only for 5 VDC, 15 VDC, or 24 VDC should not be connected directly to this output.

The 8.5 A rating offers more current capacity than lower-power models within the same product family. However, suitability depends on the complete load profile. Groups of relays, solenoids, or other inductive devices may create temporary current peaks that should be considered separately from their normal operating demand.

DIN Rail Integration and Wiring

DIN rail mounting supports structured installation inside industrial control enclosures. The unit can be positioned alongside terminal blocks, circuit protection, relays, controllers, and other panel components when appropriate spacing has been provided.

The forward-facing screw terminal block improves access during initial wiring and scheduled maintenance. Conductors should be selected according to current capacity, cable length, voltage-drop calculations, terminal requirements, and applicable panel-building standards.

Voltage drop is particularly relevant in 12 VDC systems because conductor losses can represent a meaningful percentage of the available voltage. Engineers should measure the voltage at the connected equipment when long output cables or higher-current loads are present.

How to Confirm Product Suitability

Before ordering, calculate the combined continuous current of all connected equipment. The total requirement must remain within the rated 8.5 A output and 100 W capacity. Startup current, operational variations, and planned machine modifications should also be considered.

The product dimensions of 97 × 38 × 129 mm should be compared with the available enclosure space. DIN rail position, cabinet depth, terminal accessibility, cable routing, ventilation, and surrounding components must be reviewed during panel design.

For replacement projects, confirm the complete code S8FS-G10012CD. Similar S8FS-G models may have different output voltages, current ratings, mounting arrangements, dimensions, or terminal designs. Selection based only on the product family could result in an unsuitable replacement.

Commissioning and Preventive Maintenance

Installation should be performed by qualified personnel after all electrical power has been isolated. The power supply must be secured to a compatible DIN rail within a suitable industrial enclosure. Input and output wiring should follow the applicable technical documentation and local electrical requirements.

During commissioning, technicians should verify the input voltage, output polarity, measured output voltage, operating current, and screw-terminal tightness. Protection devices must be selected as part of the complete electrical design rather than solely from the output rating.

Routine maintenance can include inspecting terminals, removing excessive dust, checking ventilation paths, and looking for abnormal heating, noise, odour, or discoloration. Recording operating current and cabinet temperature may help maintenance teams identify changes before they lead to unplanned downtime.

Purchase and Project Support from Emaconn

Emaconn supports industrial customers sourcing the Omron S8FS-G10012CD for new machinery, replacement requirements, maintenance inventory, and equipment modernisation. Procurement support may include current price information, availability checks, estimated lead times, international supply coordination, and formal project quotations.

When requesting a quotation, provide the full part number, required quantity, destination country, and preferred delivery schedule. Application details such as connected load, input source, mounting requirements, and operating environment can support more accurate product evaluation.

If this specific model is unavailable or does not meet the application requirements, Emaconn can help investigate alternative Omron power supplies. Any alternative should be compared for output voltage, current capacity, total power, input range, dimensions, mounting method, and terminal arrangement.

Additional power supplies and automation components can be reviewed through the Emaconn Omron product portfolio. Electrical and mechanical compatibility should be confirmed before an order is finalised.

Conclusion

The Omron S8FS-G10012CD DIN rail power supply provides a regulated 12 VDC output at 8.5 A with a total power rating of 100 W. Its broad allowable input range, enclosed construction, DIN rail mounting, and forward-facing screw terminals support professional industrial panel integration. Before purchasing, verify the complete load profile, input source, dimensions, temperature conditions, wiring requirements, and full model code. Contact Emaconn to request current pricing, check availability, obtain a quotation, or evaluate a technically suitable alternative.

Omron S8FS-G10012CD Frequently Asked Questions

What is the Omron S8FS-G10012CD?

It is an enclosed single-phase switch-mode power supply designed for DIN rail installation in industrial control panels.

What output voltage does this model provide?

The power supply provides a regulated nominal output of 12 VDC.

What is its rated output current?

The rated output current is 8.5 A, with a total output power capacity of 100 W.

What AC input voltage can be used?

The rated input is 100 to 240 VAC, while the allowable AC input range extends from 85 to 264 VAC.

Can the S8FS-G10012CD accept a DC input?

An allowable DC input range of 80 to 370 VDC is specified. The applicable installation requirements must be verified before using it.

How is this power supply mounted?

It is designed to be installed on a compatible DIN rail inside an appropriate industrial enclosure.

Can it replace another S8FS-G power supply?

Only after confirming the output voltage, current, power, dimensions, terminals, mounting method, and complete product code.

How can the current price be requested?

Provide the full part number, quantity, and delivery destination to request current commercial information and a formal quotation.

How can stock availability be checked?

Availability should be confirmed when submitting an enquiry because stock conditions can change according to demand and supply.

Can Emaconn support international orders?

International procurement options can be evaluated according to the destination, required quantity, and requested delivery schedule.

Is support available for volume purchases?

Yes. Project and volume requirements can be assessed using the quantity, schedule, delivery location, and technical specifications.

Can an alternative power supply be evaluated?

Yes. Alternative models can be compared according to voltage, current, power, input range, dimensions, terminals, and mounting compatibility.
