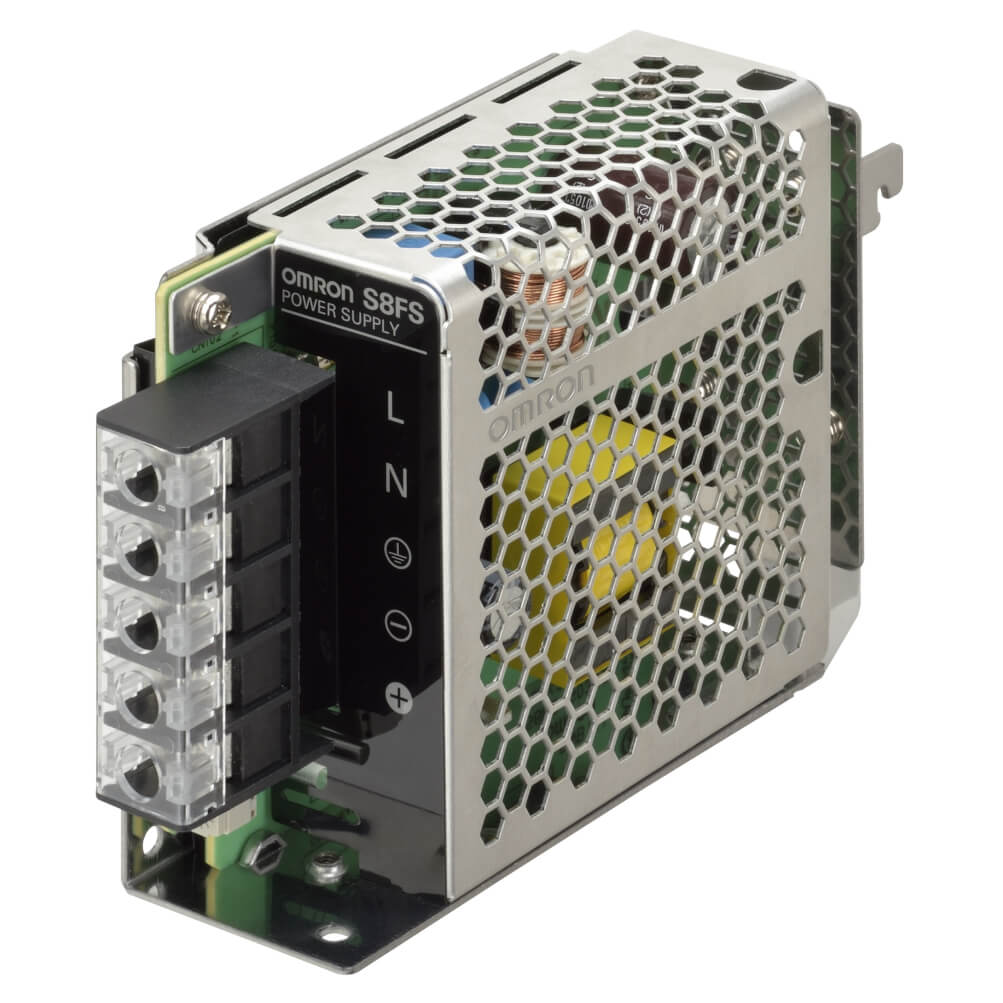

Omron S8FS-G03024CD 30 W 24 VDC DIN Rail Power Supply
The Omron S8FS-G03024CD power supply is an enclosed switch mode power supply designed to deliver 24 VDC to compatible industrial control equipment. It provides 30 W of rated power and 1.5 A of output current in a compact DIN rail format. The unit can be evaluated for automation panels, compact machinery, monitoring systems, and OEM electrical assemblies. Emaconn can assist international buyers with current pricing, availability, lead-time checks, and project quotations.
Compact DC Power for Automation Panels
A stable 24 VDC supply is commonly required by sensors, relays, interface modules, indicators, controllers, and other low-power automation components. The S8FS-G03024CD can support these devices when their total electrical demand remains within the specified output capacity.
The rated current of 1.5 A should not be considered in isolation. Engineers must calculate continuous consumption, switching peaks, start-up demand, cable losses, and planned system expansion. Retaining an appropriate operating margin helps reduce the risk of overload and supports better thermal performance inside the enclosure.
Technical Specifications
- Product type: Enclosed switch mode power supply
- Rated output power: 30 W
- Output voltage: 24 VDC
- Rated output current: 1.5 A
- Rated AC input: 100 to 240 VAC
- Allowable AC input range: 85 to 264 VAC
- Allowable DC input range: 80 to 370 VDC
- Efficiency: 89%
- Specified temperature range: -20°C to 70°C
- Mounting method: DIN rail
- Terminal configuration: Front-facing screw terminals
- Output branches: One
- Communication port: None
- Alarm function: Not included
- Dimensions: 82 mm wide, 35 mm high, and 99 mm deep
Industrial Application Areas
The unit can be incorporated into compact packaging equipment, assembly fixtures, inspection stations, production monitoring systems, material-handling equipment, and general machine control panels. It may also be used as a dedicated supply for a smaller group of 24 VDC loads within a larger electrical system.
Using a separate low-power supply may help organise auxiliary circuits and simplify fault isolation. However, the final architecture should be based on the machine’s protection strategy, availability requirements, maintenance plan, and applicable electrical standards.
The DIN rail design supports orderly panel construction alongside circuit protection devices, relays, terminal blocks, and automation components. Its compact dimensions can conserve rail space, but the enclosure must still provide access for wiring, ventilation, inspection, and replacement.
Compatibility Checks Before Ordering
The connected devices must be designed for 24 VDC operation. A similar housing or product family does not guarantee electrical compatibility with models that provide 5 VDC, 12 VDC, or another output voltage.
Total current demand should remain below the 1.5 A rating under all expected operating conditions. Loads with high starting or switching currents require particular attention. If the calculated demand approaches the rated limit, a higher-capacity power supply may offer a more appropriate reserve.
Panel designers should also verify the available DIN rail space, mounting orientation, terminal accessibility, input voltage, conductor sizes, grounding arrangement, and environmental conditions. The absence of an integrated communication port or alarm output must be considered when remote diagnostics or status reporting is required.
Omron S8FS-G03024CD Installation and Commissioning
Installation should be carried out by qualified personnel in accordance with the current Omron instructions and applicable electrical regulations. Suitable input protection, grounding, conductor preparation, cable routing, and screw-terminal torque are essential for dependable operation.
Before energising the system, technicians should confirm input voltage, output polarity, connected load, protective-device selection, and terminal security. Voltage should be measured at the connected equipment, especially when long conductors are used, because cable resistance can reduce the voltage available at the load.
The published operating range extends from -20°C to 70°C. Full output capacity may depend on ambient temperature, mounting conditions, ventilation, and input voltage. The relevant derating curves should therefore be reviewed for warm or densely populated control cabinets.
Maintenance and Replacement Considerations
Routine inspections may include checking terminal tightness, keeping ventilation paths free from contamination, and looking for unusual heat, noise, or discolouration. The power supply must be safely isolated before inspection or wiring work begins.
Maintenance records should include the complete S8FS-G03024CD part number, output ratings, mounting details, and connected loads. Accurate documentation helps procurement teams avoid selecting a physically similar but electrically different replacement model.
Omron S8FS-G03024CD Supply and Quotation Support from Emaconn
Emaconn supports industrial procurement teams with price requests, availability checks, estimated delivery times, international sourcing, and quantity-based quotations. Buyers should provide the exact model number, required quantity, destination country, target delivery schedule, and documentation requirements.
Technical selection assistance can also help determine whether the 30 W capacity is appropriate. When an application requires more current, another output voltage, remote monitoring, or a different mechanical format, an alternative model can be evaluated before purchase. Review the Omron industrial automation portfolio from Emaconn for related products and sourcing options.
Omron S8FS-G03024CD Conclusion
The Omron S8FS-G03024CD power supply provides a compact 30 W source of 24 VDC power for compatible industrial control components. Its 1.5 A output, DIN rail installation, enclosed construction, broad input range, and front-facing terminals support practical panel integration. Final selection should account for current demand, load reserve, cable voltage drop, temperature derating, panel dimensions, and monitoring requirements. Contact Emaconn to request current pricing, verify stock, obtain a project quotation, or compare alternative models.
Frequently Asked Questions
What output does the S8FS-G03024CD provide?
It delivers 24 VDC with a rated current of 1.5 A and a total rated power of 30 W.
Is the model suitable for DIN rail mounting?
Yes. It is designed for installation on a compatible DIN rail inside an electrical enclosure.
What AC input range is allowed?
The allowable AC input range is 85 to 264 VAC, with a rated supply range of 100 to 240 VAC.
Can the product accept a DC input?
Omron specifies an allowable DC input range of 80 to 370 VDC, subject to the applicable installation instructions.
Does it have a communication interface?
No. The model does not include a communication port or integrated alarm function.
How can engineers determine whether 1.5 A is sufficient?
They should calculate continuous consumption, peak current, cable losses, operating conditions, and reserve capacity.
What must be checked before commissioning?
Input voltage, grounding, output polarity, connected load, terminal security, ventilation, and protective devices should be verified.
How can buyers request the current price?
Submit the exact part number, required quantity, destination, and commercial requirements for an updated quotation.
Can availability be confirmed before placing an order?
Yes. Current stock and sourcing conditions can be checked during the quotation process.
Is lead-time information available?
An estimated lead time can be provided after the required quantity and delivery destination are reviewed.
Can a higher-power alternative be evaluated?
Yes. A higher-capacity model should be considered when the expected load approaches or exceeds the 1.5 A rating.
