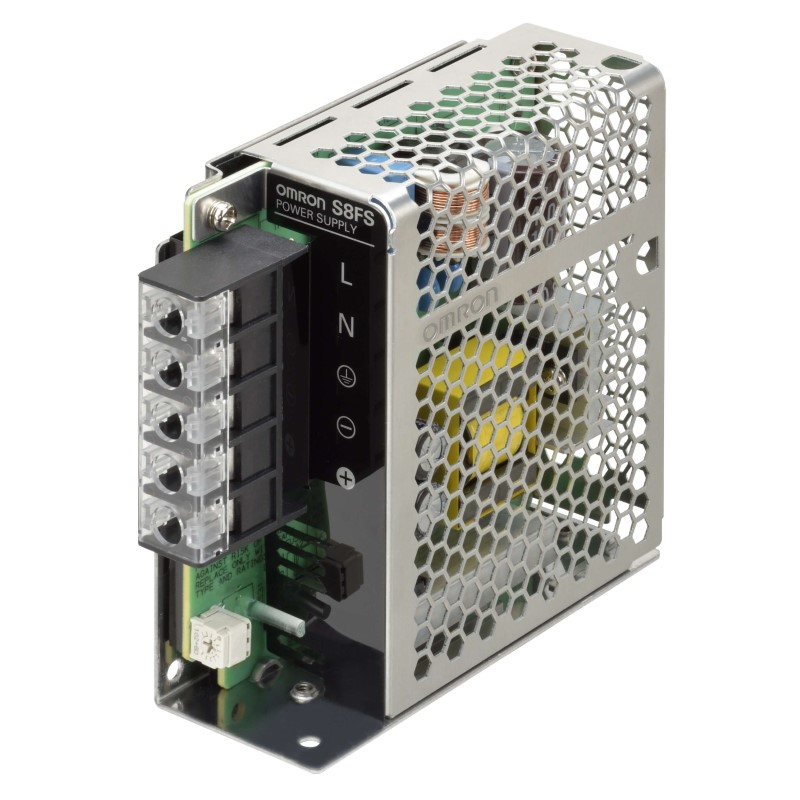

Omron S8FS-G05024C 50 W 24 VDC Direct-Mount Power Supply
The Omron S8FS-G05024C direct-mount power supply is an enclosed switch-mode unit designed to provide regulated 24 VDC power for industrial control panels, machinery, and OEM equipment. It delivers 50 W of output power with a rated current of 2.2 A. Engineering and purchasing teams can contact Emaconn for current pricing, availability, lead-time information, quotation preparation, and product selection support.
Powering Industrial 24 VDC Control Circuits
Many automation components operate from a 24 VDC control supply. The S8FS-G05024C can be evaluated for compatible sensors, relays, interface modules, indicators, control electronics, and other low-power devices installed within industrial machinery.
The unit has a rated input of 100 to 240 VAC at 50 Hz. Its allowable AC input range is 85 to 264 VAC, supporting equipment intended for use across different regional power networks. An allowable DC input range of 80 to 370 VDC is also specified, although the relevant protection and installation requirements must be verified before applying a DC input.
The rated output is 24 VDC at 2.2 A, with a maximum output power of 50 W. Engineers should calculate continuous demand, temporary startup current, cable losses, and an appropriate reserve margin before approving the unit for a project.
Technical Specifications
- Product type: Enclosed switch-mode power supply
- Mounting method: Direct mounting
- Phase: Single phase
- Rated AC input: 100 to 240 VAC
- Allowable AC input: 85 to 264 VAC
- Allowable DC input: 80 to 370 VDC
- Output voltage: 24 VDC
- Rated output current: 2.2 A
- Output power: 50 W
- Efficiency: 89%
- Terminal type: Forward-facing screw terminal block
- Temperature range: -20 to 70°C
- Number of output branches: One
- Dimensions: 97 mm wide, 36 mm high, and 99 mm deep
The 89% efficiency rating helps reduce power conversion losses, but thermal planning remains necessary. Cabinet temperature, nearby heat-producing components, ventilation, mounting orientation, and actual loading can influence long-term operating conditions.
Direct Mounting and Panel Integration
The S8FS-G05024C is configured for direct mounting rather than DIN rail installation. This distinction is important when designing a new enclosure or replacing an existing power supply. The mounting surface, fixing points, available dimensions, and wiring access should all be confirmed before ordering.
Direct mounting may be useful in machinery where the power supply must be secured to a panel, chassis, or dedicated mounting surface. The forward-facing terminal block supports accessible input and output wiring when sufficient working space has been included in the panel layout.
This configuration should not be confused with S8FS-G models whose codes include a DIN rail mounting variant. Although two models may share the same output voltage and power rating, their mechanical installation arrangements can differ.
Suitable Industrial Applications
The Omron S8FS-G05024C can be considered for packaging equipment, assembly systems, material-handling machinery, production monitoring installations, inspection equipment, and factory automation panels. It may also serve as a replacement power source in compatible OEM machines.
The 2.2 A output is suited to relatively low-power 24 VDC control loads. It may not be appropriate for systems containing multiple high-current actuators, large solenoid groups, motors, or other loads whose combined demand exceeds the unit’s rating.
Where several devices share the same output, their continuous and peak current requirements should be added together. Future modifications to the machine should also be considered so that later additions do not overload the power supply.
Selection Checks Before Purchase
Begin by confirming that the application requires 24 VDC and that the total demand remains within 2.2 A and 50 W. Check whether connected equipment creates startup peaks or rapidly changing loads that require additional capacity.
The physical dimensions of 97 × 36 × 99 mm must be compared with the available installation space. Buyers should also confirm the direct-mount arrangement, screw-terminal access, cable routing, enclosure depth, airflow, and operating temperature.
For replacement applications, verify the full code S8FS-G05024C. Similar Omron power supplies may differ in current capacity, dimensions, mounting method, terminal orientation, or other electrical characteristics. The complete part number should match the approved bill of materials or replacement specification.
Installation and Maintenance Guidance
Installation should be performed by qualified personnel after isolating all electrical power. The supply must be secured to a suitable mounting surface within an appropriate enclosure. Input and output conductors should be selected according to current, cable length, terminal requirements, and applicable panel-building standards.
During commissioning, technicians should verify the input source, output polarity, measured voltage, load current, and terminal tightness. The voltage should also be checked at the connected load, particularly where long cables may introduce a measurable voltage drop.
Preventive inspections can include checking screw terminals, cleaning excessive dust, examining ventilation paths, and looking for abnormal heat, noise, odour, or discoloration. Maintenance records can assist with replacement planning and help identify changes in operating conditions.
Procurement and Technical Support from Emaconn
Emaconn supports industrial customers sourcing the Omron S8FS-G05024C for new projects, scheduled maintenance, machine modernisation, and replacement requirements. Support may include current price information, stock checks, estimated delivery times, international procurement coordination, and formal quotations.
To request a project quotation, provide the complete product code, quantity, destination, and preferred delivery schedule. Sharing the application load and mounting requirements can help prevent selection errors before an order is finalised.
If the S8FS-G05024C is unavailable or does not meet the project requirements, Emaconn can help investigate alternative Omron power supplies. Any proposed alternative should be evaluated for output voltage, current, power, mounting method, dimensions, and terminal arrangement.
Further power supplies and automation products can be reviewed through the Emaconn Omron product portfolio. Technical compatibility should always be confirmed before purchase.
Conclusion
The Omron S8FS-G05024C direct-mount power supply delivers 24 VDC at 2.2 A with a total output rating of 50 W. Its enclosed design, broad allowable input range, forward-facing screw terminals, and direct-mount configuration support integration into compatible industrial equipment. Before ordering, confirm the load profile, mounting arrangement, dimensions, thermal conditions, and full model code. Contact Emaconn to request current pricing, check availability, obtain a quotation, or evaluate a suitable alternative.
Omron S8FS-G05024C Frequently Asked Questions
What is the Omron S8FS-G05024C?
It is an enclosed single-phase switch-mode power supply designed to provide 24 VDC power in industrial equipment.
What output current does this model provide?
The rated output current is 2.2 A, with a total output power rating of 50 W.
Is the S8FS-G05024C mounted on a DIN rail?
No. This specific model is designed for direct mounting to a suitable panel or mounting surface.
What is its allowable AC input range?
The allowable AC input range is 85 to 264 VAC, while the rated input is 100 to 240 VAC.
Can the unit operate from a DC input?
An allowable input range of 80 to 370 VDC is specified. Installation and protection requirements must be confirmed before using a DC source.
What devices can it power?
It can power compatible 24 VDC control devices when their combined continuous and peak demand remains within the supply rating.
What should be checked before replacing another power supply?
Confirm the complete part number, voltage, current, power, dimensions, direct-mount configuration, and terminal arrangement.
How can the current price be requested?
Provide the full product code, required quantity, and delivery destination to receive current commercial information.
How can availability be confirmed?
Stock status should be checked when requesting a quotation because availability can change according to supply conditions.
Can Emaconn prepare a volume quotation?
Yes. Quantity, destination, project schedule, and technical requirements can be submitted for a volume-order assessment.
Is international supply support available?
International procurement options can be evaluated according to the delivery country, quantity, and requested schedule.
Can an alternative Omron model be evaluated?
Yes. Alternatives can be compared based on output voltage, current capacity, power, dimensions, terminal design, and mounting method.
