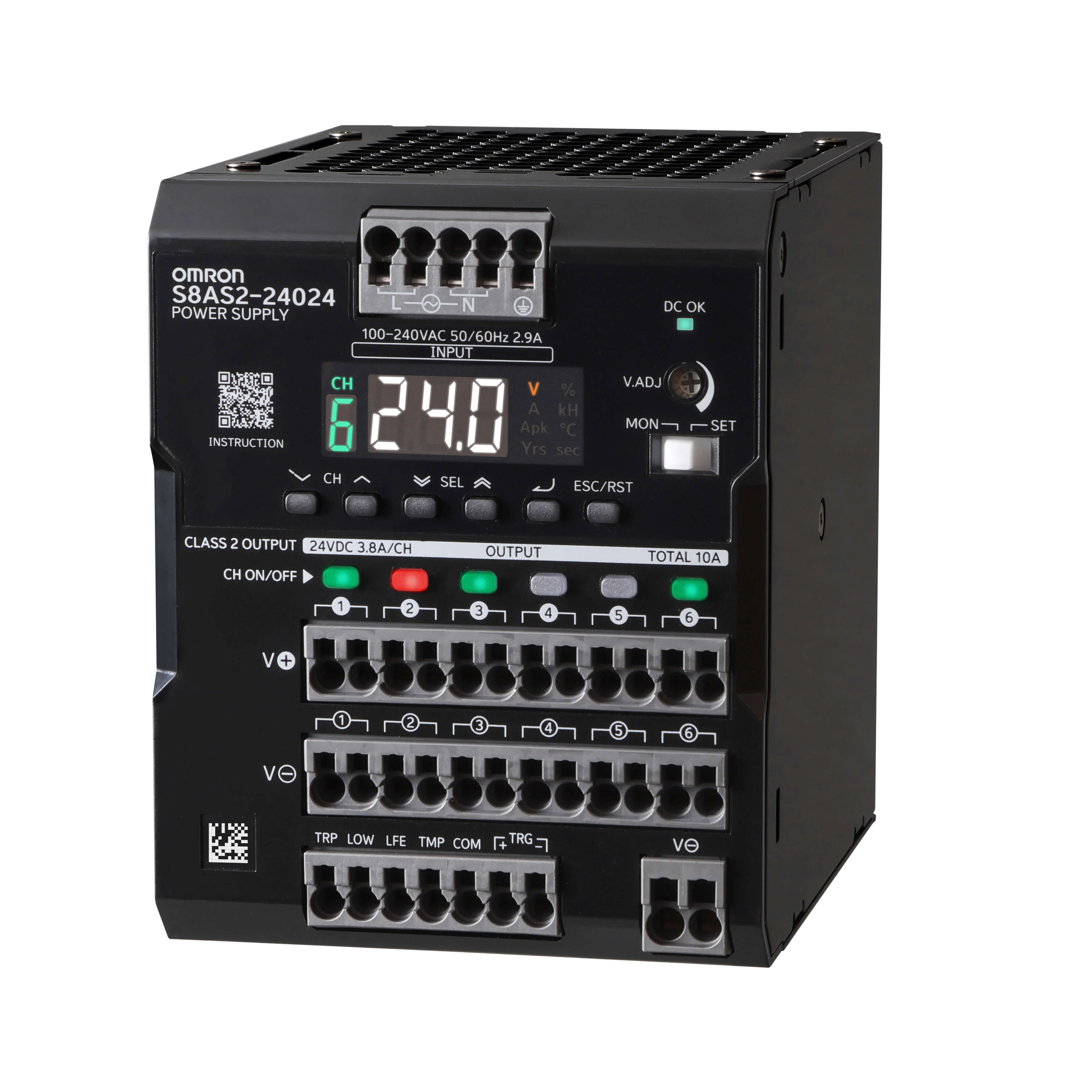

Omron S8AS2-24024-06S Smart Power Supply
The Omron S8AS2-24024-06S Smart Power Supply is a 240 W industrial power supply and electronic circuit protector designed to distribute controlled 24 VDC power across six output branches. It is intended for control panels, automated machinery, production equipment, and systems where engineers need individual branch monitoring and protection. Technical purchasing teams can contact Emaconn to request current pricing, stock information, delivery estimates, and product selection assistance.
Integrated Power Distribution and Circuit Protection
Conventional panel designs may require a separate DC power supply and multiple circuit protection devices. The S8AS2-24024-06S combines power conversion, branch distribution, monitoring, and electronic tripping functions in one unit. This integrated structure can help panel builders reduce component complexity while gaining clearer control over individual 24 VDC circuits.
The device accepts an input voltage range of 85 to 264 VAC at 50 or 60 Hz. Its total rated output current is 10 A, distributed through six branches. Each branch supports a maximum cutoff current of 3.8 A, allowing individual circuits to be protected against abnormal current conditions.
Important Technical Characteristics
- 240 W rated power capacity
- 24 VDC nominal output with a 24 to 28 V adjustment range
- Six independently managed output branches
- 10 A total rated output current
- Maximum cutoff output current of 3.8 A per branch
- 85 to 264 VAC input voltage range
- Adjustable abnormal-current tripping from 0.5 to 3.8 A
- Adjustable undervoltage alarm between 18.0 and 26.4 V
- External tripping input for branch control
- Configurable startup and shutdown sequences
- DIN rail installation for industrial control panels
- IP20 protective structure
The selectable current threshold enables engineers to coordinate protection with the connected load rather than relying on one fixed setting for every branch. This is particularly useful when PLC modules, sensors, relays, communication equipment, and other control devices have different current requirements.
Monitoring for Faster Fault Diagnosis
The integrated display provides access to operating information such as output voltage, branch current, peak current, total output current, temperature, running time, and maintenance forecast data. This visibility can help maintenance personnel identify overloaded circuits and deteriorating operating conditions without measuring every output separately.
When an abnormal current or voltage condition is detected, the relevant protection function can interrupt the affected circuit. Separating loads into six branches also helps technicians locate the source of a fault more efficiently. A problem affecting one circuit does not automatically require every connected 24 VDC load to be treated as a single troubleshooting group.
Suitable Industrial Applications
The Omron S8AS2-24024-06S can be evaluated for machine control cabinets, factory automation systems, packaging equipment, material-handling installations, assembly machinery, and production monitoring panels. Its branch-based design is useful where several DC loads must be supplied from a central panel while retaining individual protection and diagnostic visibility.
Typical connected loads may include PLC equipment, industrial sensors, relays, operator interfaces, communication devices, and control modules. The combined current demand of all loads must remain within the total output rating, while each branch must also comply with its configured protection threshold.
Selection and Compatibility Considerations
Before ordering, engineers should calculate both the continuous current and startup current of every connected device. Loads with high inrush current may require additional consideration because an unsuitable tripping setting can cause unnecessary circuit interruption during startup.
The six-branch configuration should match the required panel architecture. Projects requiring additional output branches or a higher total current capacity may need a different S8AS2 model. The 480 W models, for example, provide a different branch and current configuration and should not be selected solely as interchangeable replacements without an electrical and dimensional review.
The S suffix is also important. The S8AS2-24024-06S offers adjustable protection and sequencing parameters, while related fixed-setting variants may behave differently. Purchasing teams should verify the complete part number rather than ordering on the basis of the S8AS2 series name alone.
Omron S8AS2-24024-06S Installation and Commissioning Guidance
The power supply should be mounted inside a suitable control enclosure with the specified clearances and ventilation conditions. Installers must follow the official Omron documentation for wiring, protective earthing, conductor sizing, terminal tightening, and branch assignment. The IP20 construction means that appropriate enclosure protection remains necessary for industrial environments.
During commissioning, verify the AC input, output voltage, polarity, total load, and current assigned to each branch. Protection thresholds and startup sequences should be configured according to the connected equipment. Series and parallel operation are not supported, so capacity must not be increased by connecting multiple outputs in an unsupported arrangement.
Routine maintenance can include terminal inspections, ventilation checks, temperature review, load-current monitoring, and analysis of maintenance forecast information. Recording branch current during normal operation also provides a useful reference for future fault diagnosis.
Source the S8AS2-24024-06S Through Emaconn
Emaconn supports international industrial buyers seeking the Omron S8AS2-24024-06S for new machinery, control-panel projects, planned maintenance, or replacement requirements. Customers can request a quotation based on the required quantity, destination, and preferred delivery schedule.
Before preparing an order, Emaconn can assist with part-number verification, electrical requirement review, and comparison with related models. Current price, product availability, and lead time may vary, so these details should be confirmed for each enquiry. For related products and sourcing support, visit the Omron industrial automation product page.
Conclusion
The Omron S8AS2-24024-06S Smart Power Supply combines 240 W DC power conversion with six-branch distribution, adjustable electronic protection, operating-data display, and maintenance monitoring. It is suited to industrial panels that require organised 24 VDC distribution and faster circuit-level diagnosis. Confirm the load profile, branch requirements, panel conditions, and complete suffix before purchase, then contact Emaconn for current pricing, stock status, compatibility support, or a project quotation.
Omron S8AS2-24024-06S Frequently Asked Questions
What type of product is the Omron S8AS2-24024-06S?
It is a 240 W smart power supply that combines 24 VDC power conversion, six-branch distribution, electronic circuit protection, and operating-data monitoring.
How many output branches does this model provide?
The unit provides six output branches, enabling several DC circuits to be supplied and monitored separately.
What is the total rated output current?
The total rated output current is 10 A. The combined load across all six branches must remain within this rating.
Can the branch protection threshold be adjusted?
Yes. Abnormal-current tripping can be configured from 0.5 to 3.8 A in 0.1 A increments for appropriate load coordination.
What input voltage does the power supply accept?
It supports an allowable input range of 85 to 264 VAC at 50 or 60 Hz, subject to the installation conditions stated by Omron.
Can this unit be connected in series or parallel?
No. Series and parallel connections are not supported. Select a correctly rated model instead of using unsupported connections to increase voltage or capacity.
Where can the S8AS2-24024-06S be purchased?
The product can be sourced through Emaconn for industrial automation, maintenance, machine-building, and control-panel requirements.
How can I request the current price?
Submit the complete part number, required quantity, and delivery destination to receive an up-to-date commercial quotation.
Can stock status and lead time be confirmed before ordering?
Yes. Availability and estimated delivery time can be checked during the quotation process because supply conditions may change.
Can Emaconn help compare this model with an alternative?
Yes. Provide the required power, number of branches, load currents, protection settings, installation conditions, and project standards for a suitable model comparison.
