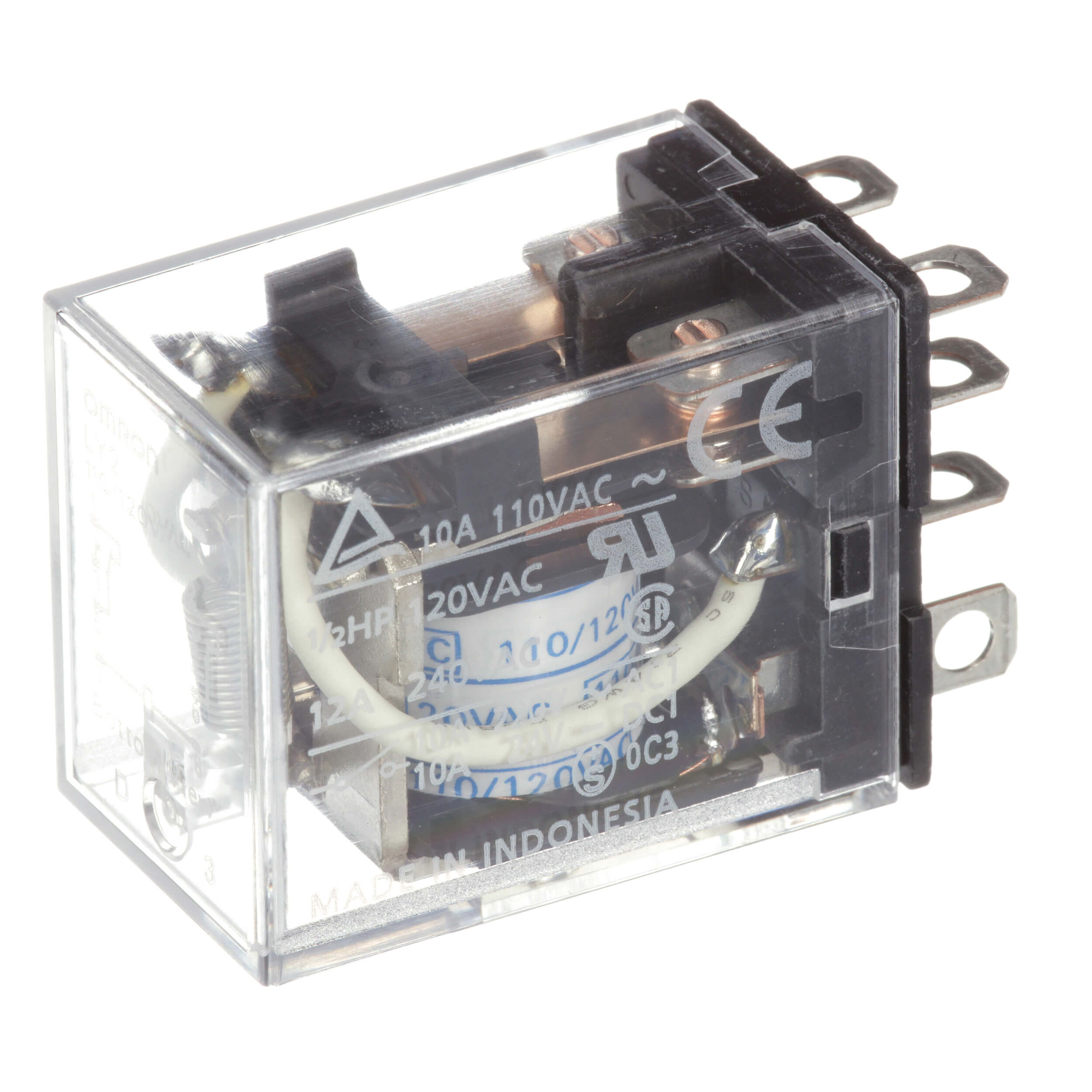

Omron LY2ZN 100/110VAC Relay: Practical Technical Overview
The Omron LY2ZN 100/110VAC relay is a general-purpose plug-in power relay designed for industrial control systems that use AC control voltage. It belongs to Omron’s LY relay series and is commonly applied in control panels, machine automation, signal switching, auxiliary circuits, and electrical interlocking systems. For engineers and maintenance professionals, this relay offers a recognizable balance of switching capacity, serviceability, and straightforward installation.
This model uses a 100/110 VAC coil, making it suitable for systems where AC control power is already available. It has a DPDT contact description, meaning it provides two changeover contact sets. This configuration allows the relay to switch two separate circuits from one coil signal, which is useful in panel designs that need coordinated switching.
Technical Profile of the Omron LY2ZN 100/110VAC Relay
The Omron LY2ZN 100/110VAC relay is specified as a two-pole relay with plug-in terminals. It uses silver alloy contacts, a common contact material for general-purpose switching due to its conductivity and durability in control applications. The relay also includes an LED indicator, which provides a quick visual signal when the coil is energized.
The rated carry current is 10 A, and the relay is categorized for general-purpose and high-power usage within the LY family. Its transparent case helps technicians visually inspect the relay condition and operation, while the plug-in format simplifies replacement during planned or corrective maintenance.
Why AC Coil Voltage Matters
The coil voltage is one of the most important selection factors. The Omron LY2ZN 100/110VAC relay is intended for AC control circuits, not 24 VDC control circuits. Using the wrong coil voltage can prevent operation or damage the relay. In a correctly designed AC panel, this relay can be energized by compatible control transformers, selector switches, limit switches, or automation outputs rated for the required AC voltage.
Because the coil is AC operated, it should be selected where the control architecture is built around 100 or 110 VAC logic. This is often seen in legacy control panels, machine tools, HVAC control cabinets, and industrial equipment where AC control circuits remain in service.
DPDT Switching Flexibility
The DPDT design allows one relay to perform two switching actions at the same time. For example, one contact set may control a pilot signal, while the other provides feedback to another device. Another use case is separating two electrically isolated circuits while operating them from the same coil command.
This flexibility can reduce component count in a panel and simplify troubleshooting because the relay state is visible through the LED indicator. When a technician sees the indicator active, the next diagnostic step is to check contact output, wiring, and downstream load conditions.
Common Industrial Applications
The Omron LY2ZN 100/110VAC relay is suitable for relay logic panels, alarm circuits, pump control systems, machine enable circuits, auxiliary motor control, indication circuits, and interface applications. Its 10 A rated carry current gives it more capacity than smaller signal relays, while the socket-mounted design keeps it practical for maintenance-heavy environments.
Before applying the relay, designers should verify the load category. Resistive loads are generally easier to switch than inductive loads. Coils, solenoids, and motors may require additional suppression or careful rating review to protect relay contacts from arcing and wear.
For additional product context, visit Omron information.
Frequently Asked Questions
What is the Omron LY2ZN 100/110VAC relay used for?
It is used for switching and control functions in industrial electrical panels, machine automation systems, auxiliary circuits, and relay logic applications.
Is the Omron LY2ZN 100/110VAC relay a DC relay?
No. This model is designed for AC coil operation at 100/110 VAC. It should not be used as a direct replacement for a 24 VDC coil relay.
What does the LED indicator do?
The LED indicator shows when the relay coil is energized. This helps technicians quickly identify relay status during commissioning, maintenance, or troubleshooting.
What does DPDT mean for this relay?
DPDT means the relay has two independent changeover contacts. Each pole can switch between normally open and normally closed positions when the coil is energized.
Can this relay be used with a socket?
Yes. It is a plug-in relay designed for use with compatible sockets. Socket mounting improves serviceability and allows faster relay replacement.
Is the transparent case useful?
Yes. A transparent case allows visual inspection of the relay mechanism and indicator, which can help during field checks and maintenance work.
What should be verified before installation?
Verify coil voltage, socket compatibility, contact rating, load type, wiring diagram, control voltage source, and environmental conditions before installation.
