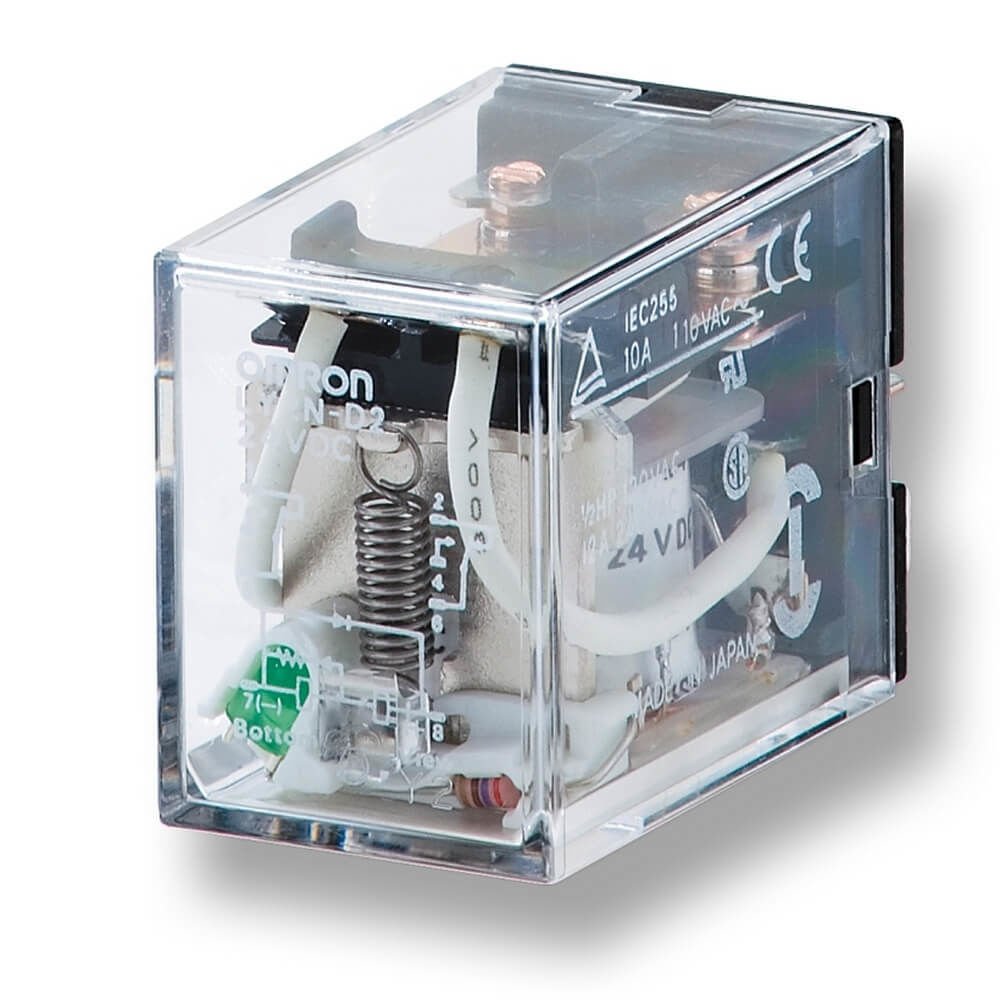

Omron LY2ZN-D2 24VDC Relay: Technical Guide for Industrial Control Circuits
The Omron LY2ZN-D2 24VDC relay is a plug-in electromechanical relay designed for industrial control panels, automation cabinets, machine interfaces, and auxiliary switching circuits. It is part of Omron’s LY relay family and is widely associated with dependable panel-level switching where compact installation, clear operating status, and service-friendly replacement are important.
This relay uses a 24 VDC coil and provides a DPDT contact configuration. DPDT means double pole double throw, allowing the relay to switch two independent circuits at the same time. This makes it useful when a single control signal must manage two separate electrical paths, such as a machine enable signal and a feedback signal, or an alarm output and an indicator circuit.
Main Technical Characteristics
The Omron LY2ZN-D2 24VDC relay is specified as a two-pole relay with a rated carry current of 10 A. It uses silver alloy contacts, which are commonly used in general-purpose industrial relays because they provide good conductivity and suitable durability for control applications. The relay is designed for plug-in socket mounting, making it practical for maintenance environments where fast replacement matters.
A key feature of this model is the built-in diode. In DC relay coils, a diode helps suppress reverse voltage generated when the coil is de-energized. This is especially important when the relay is controlled by PLC outputs, transistor outputs, control cards, or other sensitive electronic components. The relay also includes an LED indicator, allowing technicians to see whether the coil is energized without using a meter for the first diagnostic check.
Why the Built-In Diode Matters
When a DC relay coil turns off, the magnetic field collapses and can create a voltage spike. In control systems, this spike may stress nearby electronics or output devices. The built-in diode in the Omron LY2ZN-D2 24VDC relay helps reduce that electrical stress. This makes the relay a strong fit for PLC-based control panels, automation machinery, conveyor systems, packaging equipment, and signal isolation circuits.
Because the diode has polarity, correct coil wiring is essential. If the DC polarity is reversed, the relay may not operate correctly and may damage the control circuit. During installation, technicians should check the relay diagram, socket marking, and control power polarity before energizing the panel.
Typical Applications
The Omron LY2ZN-D2 24VDC relay is commonly used in industrial automation systems where a 24 VDC control supply is standard. It can be applied in machine interlocks, alarm circuits, motor control auxiliaries, signal isolation, indication circuits, pump controls, HVAC panels, and general relay logic systems.
Its DPDT structure is particularly valuable when designers need two coordinated switching actions from one coil command. One contact set can be used for the main control function, while the second contact set can provide monitoring, electrical isolation, or a separate auxiliary signal.
Installation and Selection Notes
Before selecting this relay, confirm the coil voltage, socket type, contact rating, load type, operating environment, and control output compatibility. The relay should be installed in a clean enclosure with suitable ventilation and protection from excessive moisture, conductive dust, chemical exposure, and mechanical vibration.
For more product context, visit Omron information.
Frequently Asked Questions
What is the Omron LY2ZN-D2 24VDC relay?
It is a plug-in general-purpose electromechanical relay with a 24 VDC coil, DPDT contacts, LED indicator, and built-in diode for coil suppression.
Omron LY2ZN-D2 24VDC What does DPDT mean in this relay?
DPDT means double pole double throw. The relay has two independent changeover contact sets, allowing two circuits to be switched from one coil signal.
Why does this relay include a diode?
The diode suppresses reverse voltage generated when the DC coil is switched off. This helps protect PLC outputs, transistor outputs, and sensitive control electronics.
Can this relay be used with a PLC?
Yes. It is suitable for PLC-controlled circuits when the output rating, relay coil current, polarity, and wiring design are compatible with the automation system.
Does polarity matter on this relay?
Yes. Because the relay includes a diode, DC coil polarity must be observed. Reversed polarity can prevent operation and may create electrical problems.
What is the rated carry current?
The relay is specified with a rated carry current of 10 A. Actual usable switching capacity depends on voltage, load type, contact category, and application conditions.
Is the LED indicator important?
Yes. The LED gives a quick visual confirmation that the coil is energized, which helps during troubleshooting, testing, and routine panel inspection.
