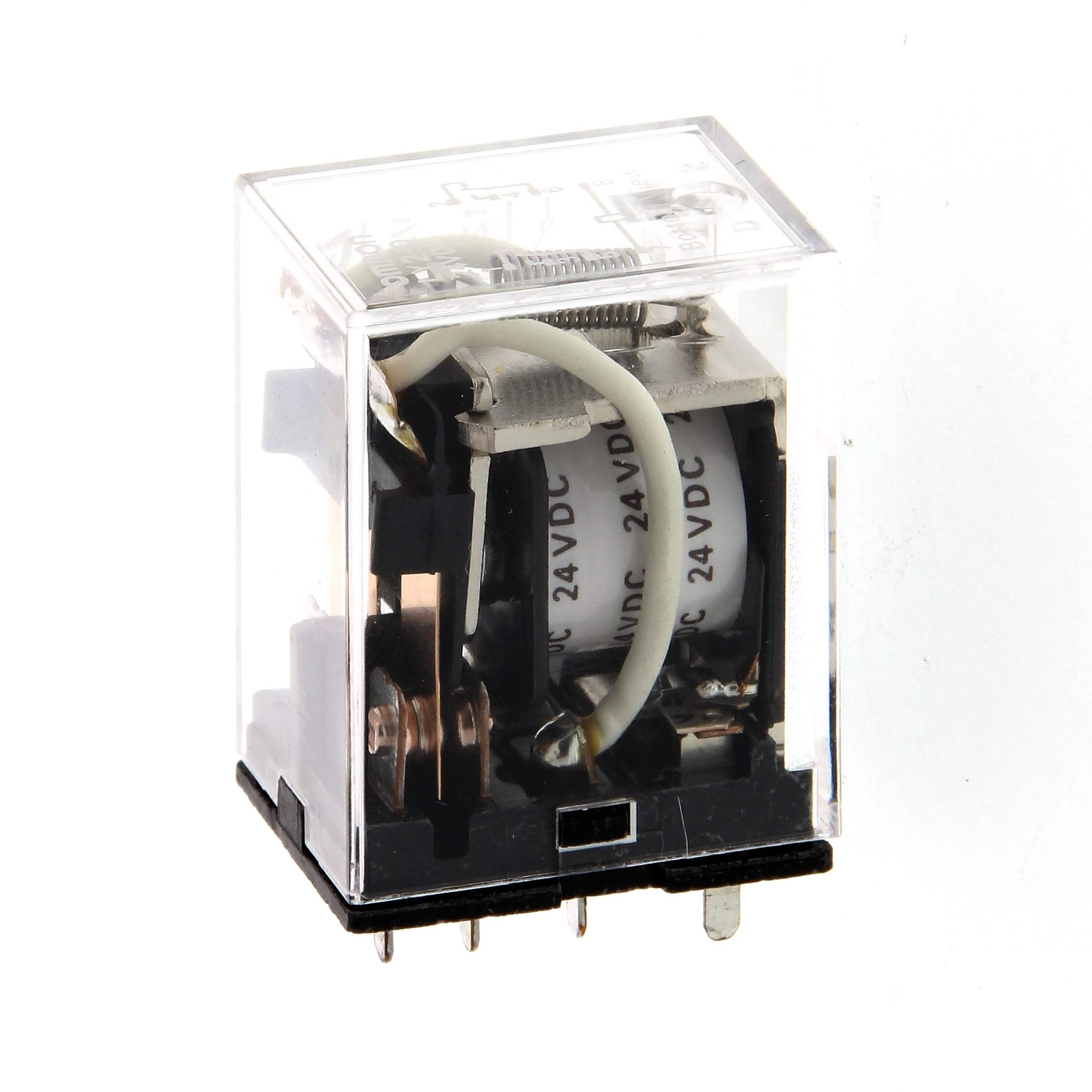

Omron LY2-0 12VDC General Purpose Relay
The Omron LY2-0 12VDC general purpose relay is a compact electromechanical relay designed for switching control loads from a 12 VDC coil signal. It belongs to the Omron LY relay family, which is widely used in industrial automation, machine control, test equipment, and panel-building applications where reliable mechanical switching is required.
Technical Overview
This model is commonly identified as a DPDT, or 2 Form C, relay. That means it includes two independent changeover contacts operated by one coil. The Omron LY2-0 12VDC version is listed with a 12 VDC coil, 10 A contact rating, silver alloy contacts, non-latching operation, and typical operate and release times of 25 ms. Distributor specifications for the LY2-0-DC12 model also list 75 mA coil current, 160 ohms coil resistance, 9.6 VDC must-operate voltage, and 1.2 VDC must-release voltage.
Best-Fit Applications
A 12 VDC relay is often selected when the control system uses battery-backed power, low-voltage automation signals, DC controller outputs, or embedded control boards. Typical applications include alarm panels, small machinery, interface modules, automotive-style control systems, battery equipment, and DC-powered test benches. Because this relay separates the coil circuit from the switched circuit, it helps control one electrical path while switching another.
Understanding the 12 VDC Coil
The coil voltage is one of the most important selection points. A 12 VDC coil should be driven by a suitable direct-current supply. It should not be connected directly to 24 VDC, 110 VAC, or 230 VAC control power. Incorrect coil voltage can damage the relay or prevent it from operating correctly. In design work, the available control voltage should always be confirmed before selecting the relay code.
Contact Rating and Load Planning
The relay can switch AC or DC loads within its rated limits, but the load type matters. A 10 A rating does not mean every 10 A application is identical. Lamps, motors, solenoids, and capacitive loads may produce inrush or transient behavior. For long service life, the relay should be applied with proper derating, suppression, and protection according to the final circuit.
Installation and Service Notes
The LY2-0 12VDC format is associated with through-hole or socket-related use depending on exact variant and sourcing. Always compare the physical terminal style, wiring layout, and socket requirement before replacement. For additional Omron resources, visit Omron information.
FAQ
What is the Omron LY2-0 12VDC used for?
It is used to switch electrical loads from a 12 VDC control signal. It is suitable for control panels, interface circuits, low-voltage automation, DC-powered equipment, and similar applications.
Is the LY2-0 12VDC a latching relay?
No. It is generally specified as a non-latching relay. The contacts change state when the coil is energized and return when coil power is removed.
What does 2 Form C mean?
2 Form C means the relay has two changeover contact sets. Each set includes common, normally closed, and normally open contact paths.
Can I replace a 24 VDC relay with this 12 VDC relay?
No. Coil voltage must match the control circuit. A 12 VDC coil relay should not replace a 24 VDC coil relay unless the circuit has been redesigned for 12 VDC operation.
Why is coil resistance important?
Coil resistance helps determine coil current and power consumption. It also helps engineers verify whether the control output can safely energize the relay.
Does this relay provide electrical isolation?
Yes. As an electromechanical relay, it provides separation between the coil circuit and contact circuits, subject to the insulation and safety ratings of the selected model and installation.
