Omron LY2-0 220/240VAC General Purpose Relay

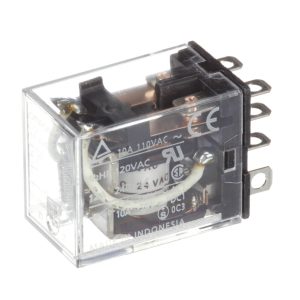

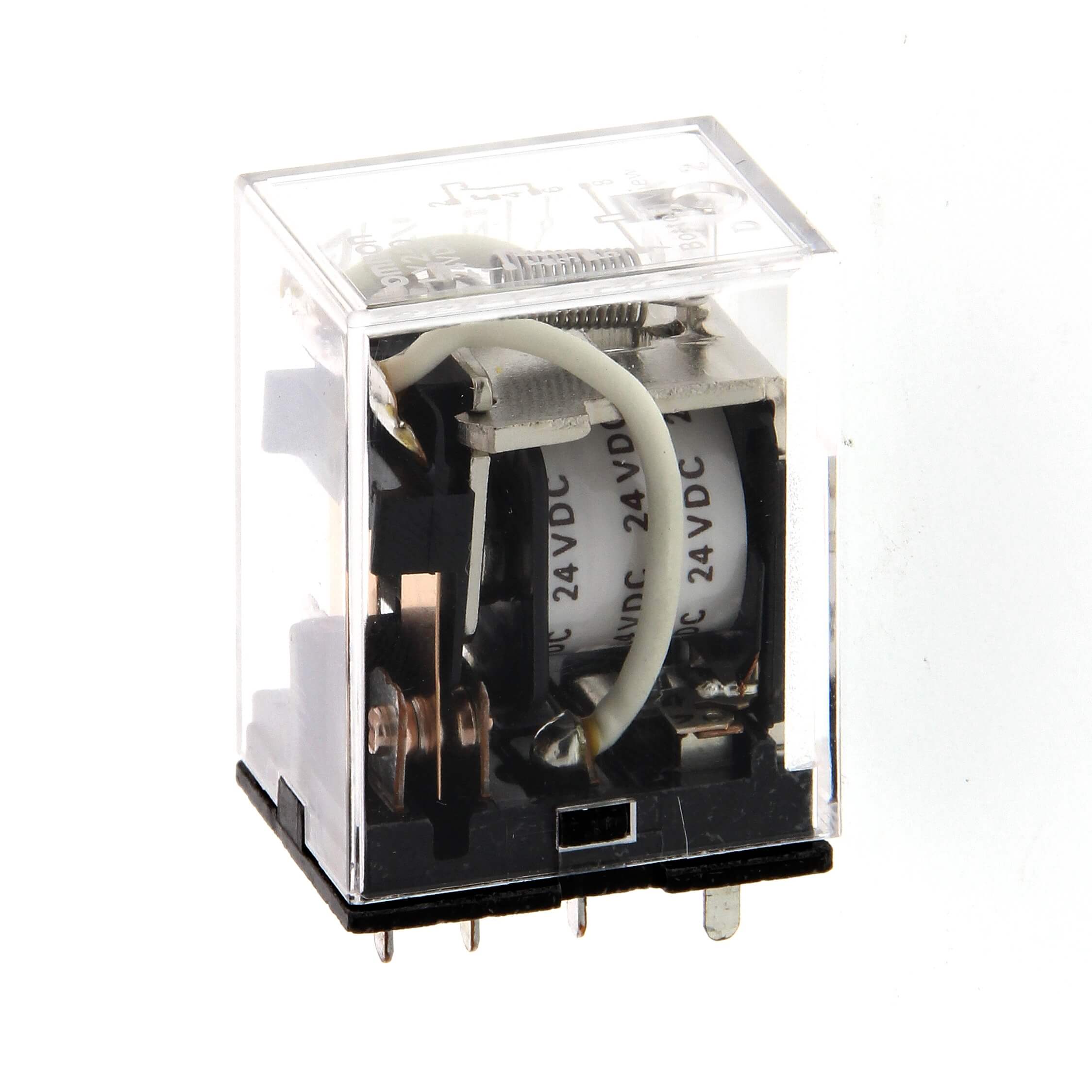

The Omron LY2-0 220/240VAC general purpose relay is a two-pole electromechanical relay designed for control systems using higher AC coil voltage. It is part of Omron’s LY series, a relay range frequently used in industrial panels, machine automation, HVAC control circuits, pump systems, lighting interfaces, and general electrical control applications.

Technical Overview

This relay uses a DPDT contact configuration and silver alloy contacts. Omron identifies the LY2 220/240 VAC version as a two-pole plug-in relay with a 10 A rated carry current. The coil rating covers 220 VAC and 240 VAC operation. Listed coil current values include 4.8 mA at 220 VAC 50 Hz, 4.2 mA at 220 VAC 60 Hz, 5.3 mA at 240 VAC 50 Hz, and 4.6 mA at 240 VAC 60 Hz. Omron also lists coil resistance as 18,790 ohms for this model.

Why Use a 220/240 VAC Coil Relay?

A 220/240 VAC coil relay is useful when the control cabinet already uses mains-level AC control voltage. Instead of adding a separate low-voltage control supply, the relay coil can be energized directly from a compatible AC control circuit. This can simplify wiring in certain installations, especially older industrial panels or applications designed around AC pilot devices.

DPDT Switching Advantage

The DPDT arrangement allows one coil to operate two changeover contacts at the same time. This is helpful when a control system needs to switch two signals, reverse logic states, separate control paths, or provide auxiliary indication. Each contact set should be evaluated independently according to voltage, current, load category, and expected switching frequency.

Omron LY2-0 24VAC Load and Safety Considerations

Although the relay is rated for 10 A, practical selection should consider the exact electrical load. Resistive loads are typically easier for contacts to switch. Inductive loads, such as contactor coils, valves, transformers, and motors, may produce arcs or voltage spikes. Circuit protection, fusing, surge suppression, and correct enclosure design are important for dependable operation.

Maintenance and Replacement

The plug-in relay format makes replacement straightforward when used with a compatible socket. Before replacing an existing relay, confirm the coil voltage, pin arrangement, contact rating, terminal style, and panel wiring. A visually similar relay with a different coil voltage is not an acceptable substitute. For additional Omron resources, see Omron information.

FAQ

What is the Omron LY2-0 220/240VAC relay?

It is a general purpose electromechanical relay with a 220/240 VAC coil and DPDT contacts. It is designed for switching control or load circuits within its rated limits.

Omron LY2-0 220/240VAC Is this relay suitable for low-voltage DC control?

No. This specific version requires a 220/240 VAC coil supply. For low-voltage DC control, a 12 VDC or 24 VDC coil version should be selected.

Omron LY2-0 24VAC What does the 10 A rating mean?

The 10 A value refers to the relay’s rated current under specified conditions. Actual suitability depends on load type, voltage, switching frequency, ambient temperature, and protection design.

Can this relay switch two circuits?

Yes. Its DPDT contact form provides two separate changeover contact sets operated by the same coil.

Why should the socket be checked before replacement?

Socket compatibility affects wiring, mechanical fit, terminal layout, and safety. Even within the same relay family, variants may differ in terminal style or installation format.

Is the relay intended for industrial panels?

Yes. The LY series is commonly used in control panels and industrial automation environments, provided the final application matches the relay’s ratings and approvals.
