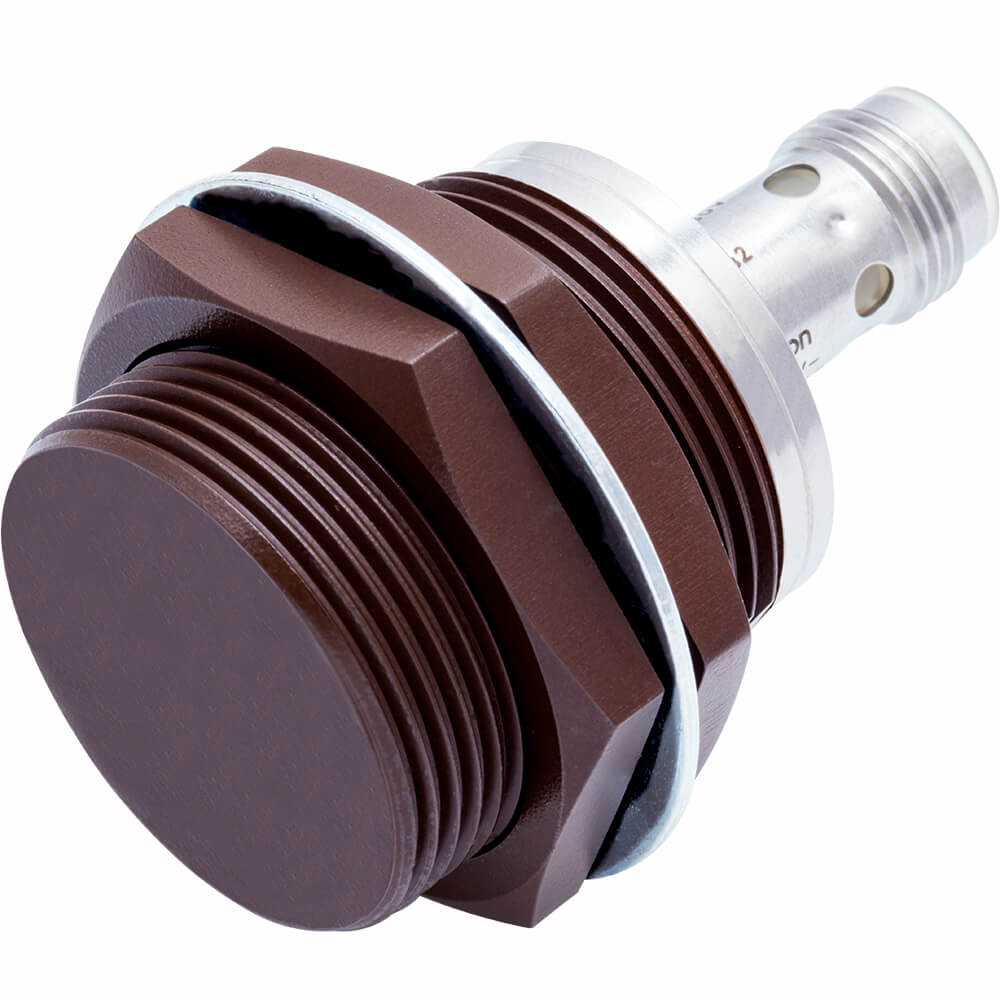

Omron E2EW-QX20B230-M1 Inductive Proximity Sensor

The Omron E2EW-QX20B230-M1 Inductive Proximity Sensor is engineered for reliable metallic object detection in industrial automation systems where environmental durability and installation flexibility are essential. Unlike permanently wired versions, this model features an M12 connector that simplifies installation, replacement, and maintenance while supporting standardized industrial wiring practices. The combination of an extended sensing distance, flush mounting capability, and protective fluoroplastic coating makes the sensor suitable for demanding manufacturing environments.

Technical Description

The Omron E2EW-QX20B230-M1 Inductive Proximity Sensor belongs to the E2EW family, developed for applications where conventional proximity sensors may experience reduced service life due to welding spatter, coolant, or abrasive particles. The stainless-steel housing is coated with fluoroplastic to reduce adhesion of molten metal particles while maintaining the mechanical strength required for continuous industrial operation.

This model operates with a 10 to 30 VDC supply voltage and provides a three-wire PNP normally closed switching output. The M12 four-pin connector supports quick sensor replacement without rewiring, reducing maintenance time in automated production systems.

Working Principle

The sensor generates a high-frequency electromagnetic field at its sensing surface. When a conductive metallic target enters the sensing zone, eddy currents are induced within the object. These currents absorb energy from the oscillator circuit, causing a measurable reduction in oscillation amplitude. The internal electronics detect this change and switch the output accordingly.

The Omron E2EW-QX20B230-M1 Inductive Proximity Sensor performs detection without physical contact, allowing stable operation even in applications involving repetitive machine movement or high production rates.

Typical Applications

• Robotic welding equipment
• Automated assembly systems
• CNC machining centers
• Metal stamping lines
• Automated transfer systems
• Industrial conveyors
• Fixture position verification
• Production automation equipment

Industrial Applications

In robotic welding cells, the sensor detects fixture positions and workpiece presence while resisting welding spatter that could interfere with conventional sensors. Its durable housing contributes to consistent operation in high-temperature manufacturing areas.

Machine tool builders integrate this model into machining centers to monitor slide positions, pallet transfer mechanisms, and automated clamping devices. The connectorized design allows maintenance personnel to replace sensors rapidly during scheduled service.

Metal fabrication facilities also use this sensor for automated handling equipment where reliable detection of steel components supports synchronized production processes.

Advantages

• 20 mm rated sensing distance
• Flush mounting installation
• M12 connector for simplified replacement
• PNP normally closed output configuration
• Fluoroplastic-coated stainless-steel housing
• Metal sensing face for demanding environments
• IP67 environmental protection
• Suitable for applications exposed to welding spatter

Industry Examples

Automotive Production

The sensor verifies component positioning before robotic joining and automated transfer operations.

Metal Fabrication

Detection of fabricated steel parts enables coordinated movement between processing stations.

Industrial Machinery

Equipment manufacturers integrate the sensor into automated systems requiring dependable position feedback and repeatable switching performance.

Factors to Consider During Selection

When selecting an inductive proximity sensor, engineers should confirm the required sensing distance, mounting style, electrical output, connector compatibility, available installation space, and environmental exposure. The connectorized version is often preferred in systems where maintenance efficiency is an important consideration.

Omron E2EW-QX20B230-M1 For installations requiring additional sensing solutions, the Omron sensor product range includes multiple housing sizes, sensing distances, and connection options for industrial automation.

Omron E2EW-QX20B230-M1 Frequently Asked Questions

1. What type of sensor is the E2EW-QX20B230-M1?

It is a flush-mounted inductive proximity sensor designed for non-contact detection of metallic objects.

2. What is the rated sensing distance?

The rated sensing distance is 20 mm.

3. Which electrical output does this model provide?

It features a PNP normally closed (NC) output.

4. What is the operating voltage?

The sensor operates from a 10 to 30 VDC power supply.

5. Why does this version include an M12 connector?

The connector allows faster installation and replacement compared with permanently wired sensor models.

6. Is the sensor suitable for welding applications?

Yes. Its fluoroplastic-coated housing is designed to improve resistance to welding spatter.

7. What environmental protection rating does it have?

The enclosure is rated IP67 for protection against dust and water ingress under specified conditions.

8. Which industries commonly use this sensor?

Typical applications include automotive manufacturing, robotics, machine building, metal processing, factory automation, and industrial material handling systems.
