Omron E2EW-QX12B3T18-M1TJ 0.3M Inductive Proximity Sensor
| Specification | Value |
|---|---|
| Manufacturer | Omron |
| Product Series | E2EW |
| Sensor Type | Inductive Proximity Sensor |
| Housing Size | M18 |
| Mounting Type | Quasi-flush |
| Sensing Distance | 12 mm |
| Supply Voltage | 10–30 VDC |
| Output Type | PNP NO + NC with IO-Link COM3 |
| Connection Type | 0.3 m Pigtail Cable with M12 Connector |
| Housing Material | Fluororesin-coated SUS303 Stainless Steel |
| Protection Rating | IP67 |
| Thread Size | M18 × 1 |

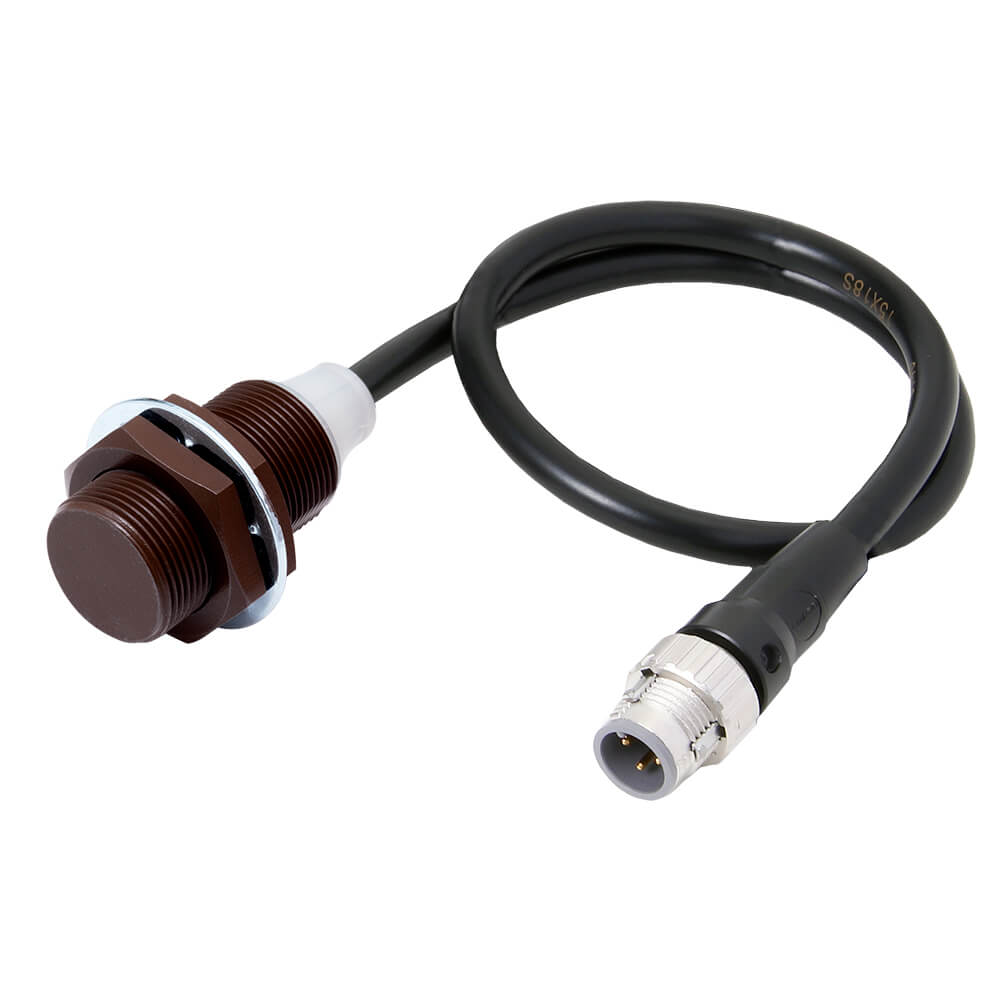

The Omron E2EW-QX12B3T18-M1TJ 0.3M Inductive Proximity Sensor is designed for industrial automation systems that require dependable metal detection together with flexible connector installation. Unlike fixed-cable versions, this model incorporates a short 0.3 m pigtail cable terminated with an M12 connector, providing convenient routing inside machine panels while simplifying sensor replacement.
As a member of the E2EW Series, the sensor combines a fluororesin-coated sensing surface with a stainless-steel housing to improve durability in environments exposed to welding spatter, oil, coolant, and mechanical stress. IO-Link COM3 communication supports parameter configuration, diagnostics, and device identification within modern automation architectures.
Technical Description
The Omron E2EW-QX12B3T18-M1TJ 0.3M Inductive Proximity Sensor features an M18 cylindrical body with quasi-flush installation and a nominal sensing distance of 12 mm. It operates on a 10–30 VDC supply and provides both Normally Open and Normally Closed PNP switching outputs.
The integrated 0.3 m pigtail cable allows installers to position the connector away from confined mounting locations while maintaining compatibility with standard M12 extension cables. This configuration is often selected for machinery where direct connector access would otherwise be restricted.
Operating Principle
The sensor detects conductive metal objects through electromagnetic induction. An oscillator inside the sensing head creates a high-frequency electromagnetic field. When a metallic object enters this field, eddy currents are induced within the target, causing measurable changes to the oscillator circuit.
The internal electronics continuously monitor these changes and activate the switching output when the defined sensing threshold is reached. Since detection occurs without physical contact, there is no mechanical wear during normal operation.
IO-Link communication enables parameter storage, sensor identification, status monitoring, and diagnostic information exchange with compatible IO-Link masters.
Applications
The Omron E2EW-QX12B3T18-M1TJ 0.3M Inductive Proximity Sensor is suitable for industrial equipment where flexible cable routing and reliable metal detection are required.
- Robotic welding stations
- Automated assembly machinery
- Machine tool systems
- Industrial conveyors
- Automotive production equipment
- Fixture verification systems
- Packaging machinery
- Transfer automation systems
Additional industrial sensing solutions are available in the
Omron sensor series.
Omron E2EW-QX12B3T18-M1TJ 0.3M Industrial Applications
The short pigtail configuration provides installation flexibility in compact automation equipment where standard connector versions may not fit comfortably. Maintenance personnel can disconnect the sensor without removing long cable runs, reducing service time.
Robotics
Supports accurate end-of-travel detection, gripper positioning, fixture monitoring, and workpiece verification.
Machine Automation
Used for slide positioning, clamp confirmation, and indexing mechanisms requiring repeatable non-contact sensing.
Automotive Manufacturing
Provides dependable detection in production environments exposed to vibration, coolant, and welding spatter.
Advantages
- 12 mm sensing distance.
- Compact 0.3 m pigtail cable design.
- M12 connector compatibility.
- IO-Link COM3 communication.
- PNP Normally Open and Normally Closed outputs.
- Fluororesin-coated sensing face.
- Stainless-steel housing for demanding environments.
- IP67 protection rating.
- Supports simplified maintenance and replacement.
Omron E2EW-QX12B3T18-M1TJ 0.3M Selection Considerations
When selecting a proximity sensor, engineers should evaluate sensing distance, installation accessibility, connection method, controller compatibility, environmental exposure, and communication requirements.
The Omron E2EW-QX12B3T18-M1TJ 0.3M Inductive Proximity Sensor is particularly suitable where connector flexibility and compact cable routing are important design considerations.
Frequently Asked Questions
1. What is the benefit of the 0.3 m pigtail cable?
It allows the connector to be positioned outside confined mounting spaces, simplifying installation and maintenance.
2. Does this model support IO-Link?
Yes. It supports IO-Link COM3 communication together with conventional PNP switching outputs.
3. What is the nominal sensing distance?
The sensor provides a nominal sensing distance of 12 mm.
4. Which supply voltage is required?
The operating voltage range is 10–30 VDC.
5. Is the sensor suitable for welding environments?
Yes. The fluororesin-coated sensing face is designed to improve resistance to welding spatter.
6. Which connector standard is used?
The sensor is designed for use with an M12 connector interface.
7. Which industries commonly use this model?
Automotive manufacturing, robotics, factory automation, machine building, packaging, and material handling systems.
8. What protection rating does the sensor provide?
The enclosure is rated IP67 for industrial environments requiring protection against dust and temporary water exposure.
