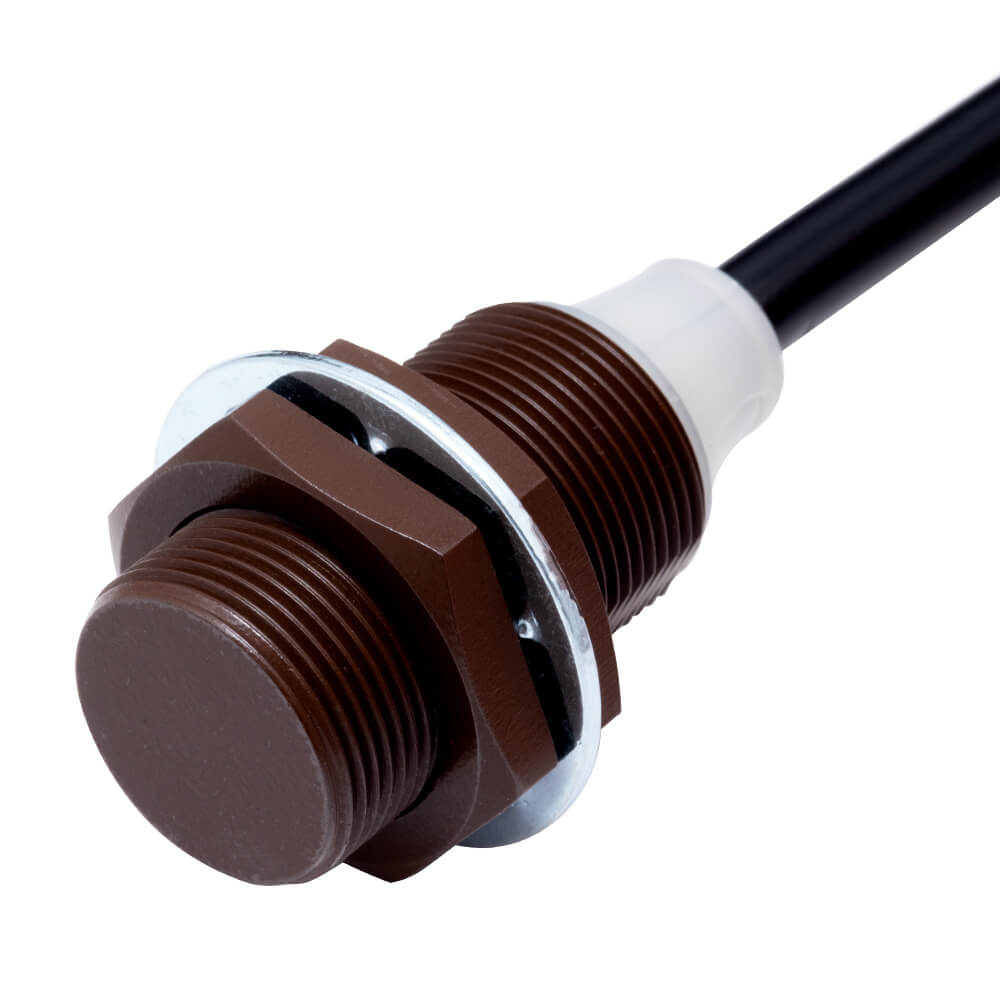

Omron E2EW-QX12C118 2M Inductive Proximity Sensor

The Omron E2EW-QX12C118 2M Inductive Proximity Sensor is designed for stable non-contact detection of metallic objects in industrial automation systems. Equipped with a fixed 2 m cable, this model combines reliable inductive sensing with IO-Link COM3 communication, allowing both conventional switching and digital diagnostics in modern manufacturing environments.

Its fluororesin-coated sensing face helps reduce welding spatter adhesion, while the SUS303 stainless-steel housing enhances mechanical durability in applications exposed to coolant, oil, dust, and vibration. The cable connection makes the sensor suitable for installations where permanent wiring is preferred.

Technical Description

The Omron E2EW-QX12C118 2M Inductive Proximity Sensor features an M18 cylindrical housing with a quasi-flush mounting design and a nominal sensing distance of 12 mm. It operates on a 10–30 VDC supply and provides an NPN Normally Open switching output together with IO-Link COM3 communication.

The robust construction allows reliable operation in demanding industrial environments. The fixed 2 m cable offers straightforward installation for machinery where connector interfaces are not required.

Operating Principle

The sensor generates a high-frequency electromagnetic field at its sensing surface. When a conductive metal object enters the sensing range, eddy currents are induced in the target. These currents alter the oscillator characteristics inside the sensor, allowing the internal electronics to recognize the presence of the object and activate the output.

Because the sensing method is completely contactless, mechanical wear is eliminated during normal operation. Through IO-Link communication, operating parameters, diagnostic information, and device identification data can be exchanged with compatible controllers.

Applications

• Machine tools
• Metal processing equipment
• Automated production lines
• Industrial conveyors
• Automotive assembly systems
• Material handling equipment
• Robotic automation cells
• Packaging machinery

Explore additional industrial sensing solutions in the
Omron sensor products
collection.

Industrial Applications

This sensor is commonly used in production systems requiring reliable detection of metallic machine components. The cable version is particularly suitable for fixed installations where long-term wiring stability is preferred.

Manufacturing Automation

Supports position confirmation, workpiece detection, fixture monitoring, and machine sequencing throughout automated production processes.

Metal Fabrication

Performs consistently in applications exposed to coolant, lubricants, and welding spatter while maintaining stable detection performance.

Material Handling

Detects metallic carriers, transfer pallets, and moving machine elements within conveyor and transport systems.

Advantages

• 12 mm sensing distance.
• NPN Normally Open switching output.
• Integrated IO-Link COM3 communication.
• 2 m factory-installed cable.
• Fluororesin-coated sensing face.
• SUS303 stainless-steel housing.
• IP67 environmental protection.
• Suitable for demanding industrial applications.
• Supports simplified diagnostics through IO-Link.

Selection Considerations

Engineers should verify controller compatibility, required output type, installation method, sensing distance, environmental exposure, and communication requirements before selecting an inductive sensor.

The Omron E2EW-QX12C118 2M Inductive Proximity Sensor is appropriate for systems requiring an NPN output together with permanent cable installation and IO-Link functionality.

Omron E2EW-QX12C118 2M Frequently Asked Questions

1. Which output configuration does this model provide?

It features an NPN Normally Open switching output with IO-Link COM3 communication.

2. What is the sensing distance?

The nominal sensing distance is 12 mm.

3. What supply voltage is required?

The operating voltage range is 10–30 VDC.

4. Is this sensor suitable for welding environments?

Yes. Its fluororesin-coated sensing surface improves resistance to welding spatter.

5. What connection method is used?

This version is equipped with a permanently attached 2 m PVC cable.

6. Which industries commonly use this sensor?

Automotive manufacturing, machine building, metal processing, robotics, packaging, and industrial automation.

7. What protection rating does the enclosure provide?

The sensor is rated IP67 for industrial operating environments.

8. What are the advantages of IO-Link?

IO-Link enables parameter management, diagnostics, device identification, and simplified maintenance within compatible automation systems.
