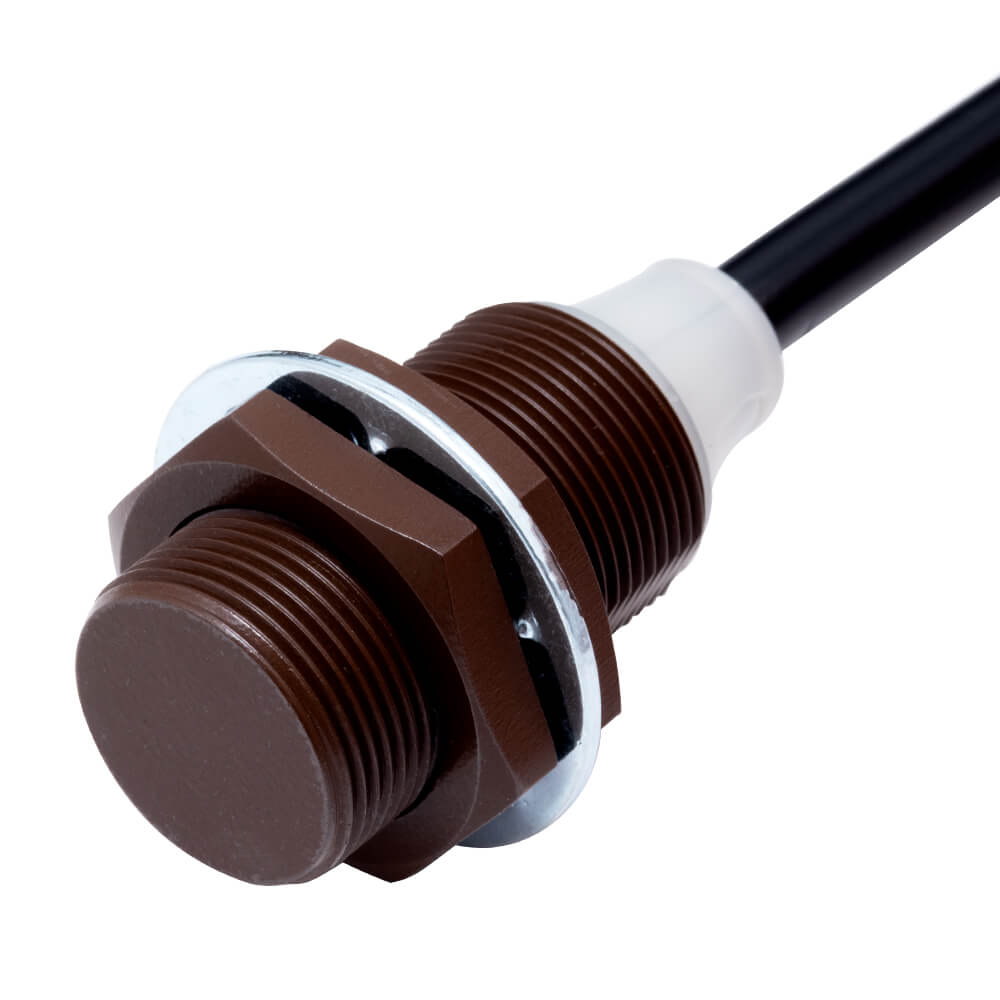

Omron E2EW-QX12C218 2M Inductive Proximity Sensor

The Omron E2EW-QX12C218 2M Inductive Proximity Sensor is intended for reliable detection of metallic objects in industrial automation systems where environmental durability is an important consideration. As part of the E2EW Series, this model combines an M18 quasi-flush threaded housing, a full metal sensing face, fluororesin-coated stainless-steel construction, and a 12 mm sensing distance. The sensor incorporates a three-wire DC NPN normally closed output together with a permanently attached 2-meter cable for direct installation into control systems. These specifications are based on the manufacturer’s documentation. :contentReference[oaicite:0]{index=0}

Technical Description

The Omron E2EW-QX12C218 2M Inductive Proximity Sensor is designed for stable non-contact detection of ferrous and non-ferrous metallic objects. The E2EW family utilizes an optimized sensing circuit that supports consistent sensing characteristics while the stainless-steel housing with fluororesin coating improves resistance against harsh industrial conditions including welding environments, coolant exposure, and mechanical wear.

The M18 threaded body allows installation using conventional mounting hardware, while the quasi-flush mounting configuration provides additional installation flexibility compared with fully shielded sensor designs.

Operating Principle

The sensor continuously generates a high-frequency electromagnetic field from its active sensing surface. When a conductive metal target enters the rated sensing zone, eddy currents are induced within the target. These currents modify the oscillator characteristics inside the sensor.

Once the internal switching threshold is reached, the NPN normally closed output changes state. Since the sensing process does not require physical contact, the device minimizes mechanical wear while maintaining repeatable detection throughout continuous production cycles.

Typical Applications

• Automated assembly stations
• Machine tool positioning
• Automotive body production
• Metal fabrication equipment
• Industrial conveyor systems
• Transfer and indexing mechanisms
• Robotic manufacturing cells
• Packaging machinery

Industrial Applications

Automotive Manufacturing

The sensor can detect metal body panels, welding fixtures, positioning pins, and workpiece carriers throughout automated production lines.

Metal Processing Equipment

Machining centers, stamping presses, and fabrication machines use inductive sensors for position confirmation without direct mechanical contact.

Material Handling Systems

Conveyor transfer units, pallet handling equipment, and indexing mechanisms benefit from repeatable metallic object detection during continuous operation.

Robotic Automation

Industrial robots use proximity sensors to verify fixture locations and component positioning before executing programmed handling or assembly sequences.

Advantages

• 12 mm sensing distance
• NPN normally closed output configuration
• Full metal sensing face
• Stainless-steel housing with fluororesin coating
• Quasi-flush mounting design
• Integrated 2-meter PVC cable
• IP67 environmental protection
• Suitable for demanding industrial environments

Additional models within this product family are available through Omron sensor series.

Omron E2EW-QX12C218 2M Industry Examples

In an automated welding cell, the sensor can verify fixture alignment before robotic welding begins. Within CNC machining systems, it may confirm pallet positioning before machining cycles start. Material handling equipment can use the sensor to detect transfer positions, while automated inspection systems employ inductive sensing to verify the presence of metallic workpieces before quality inspection procedures continue.

Selection Considerations

• Confirm that a 12 mm sensing distance meets application requirements.
• Verify compatibility with NPN normally closed PLC inputs.
• Ensure adequate installation clearance for quasi-flush mounting.
• Select the appropriate cable routing for the integrated 2 m connection.
• Evaluate environmental conditions including dust, moisture, and coolant exposure.
• Review installation spacing recommended in the manufacturer documentation.

Omron E2EW-QX12C218 2M Frequently Asked Questions

1. What type of objects can this sensor detect?

It is designed for non-contact detection of metallic objects using inductive sensing technology.

2. What is the rated sensing distance?

The specified sensing distance is 12 mm.

3. Which output configuration does this model provide?

The sensor uses a three-wire DC NPN normally closed (NC) output.

4. What is the connection method?

This version includes a permanently attached 2-meter PVC cable.

5. Is the sensor suitable for industrial environments?

Yes. The stainless-steel housing, fluororesin coating, and IP67 protection rating support operation in demanding industrial applications.

6. What mounting style does this sensor use?

It features an M18 threaded quasi-flush housing.

7. Where is the Omron E2EW-QX12C218 2M Inductive Proximity Sensor commonly installed?

The Omron E2EW-QX12C218 2M Inductive Proximity Sensor is commonly used in robotic systems, machine tools, conveyors, welding equipment, transfer systems, and automated production lines requiring reliable metal detection.

8. Why choose a non-contact sensing method?

Non-contact operation eliminates physical wear between the sensor and the target, helping maintain consistent switching performance over long operating periods.
