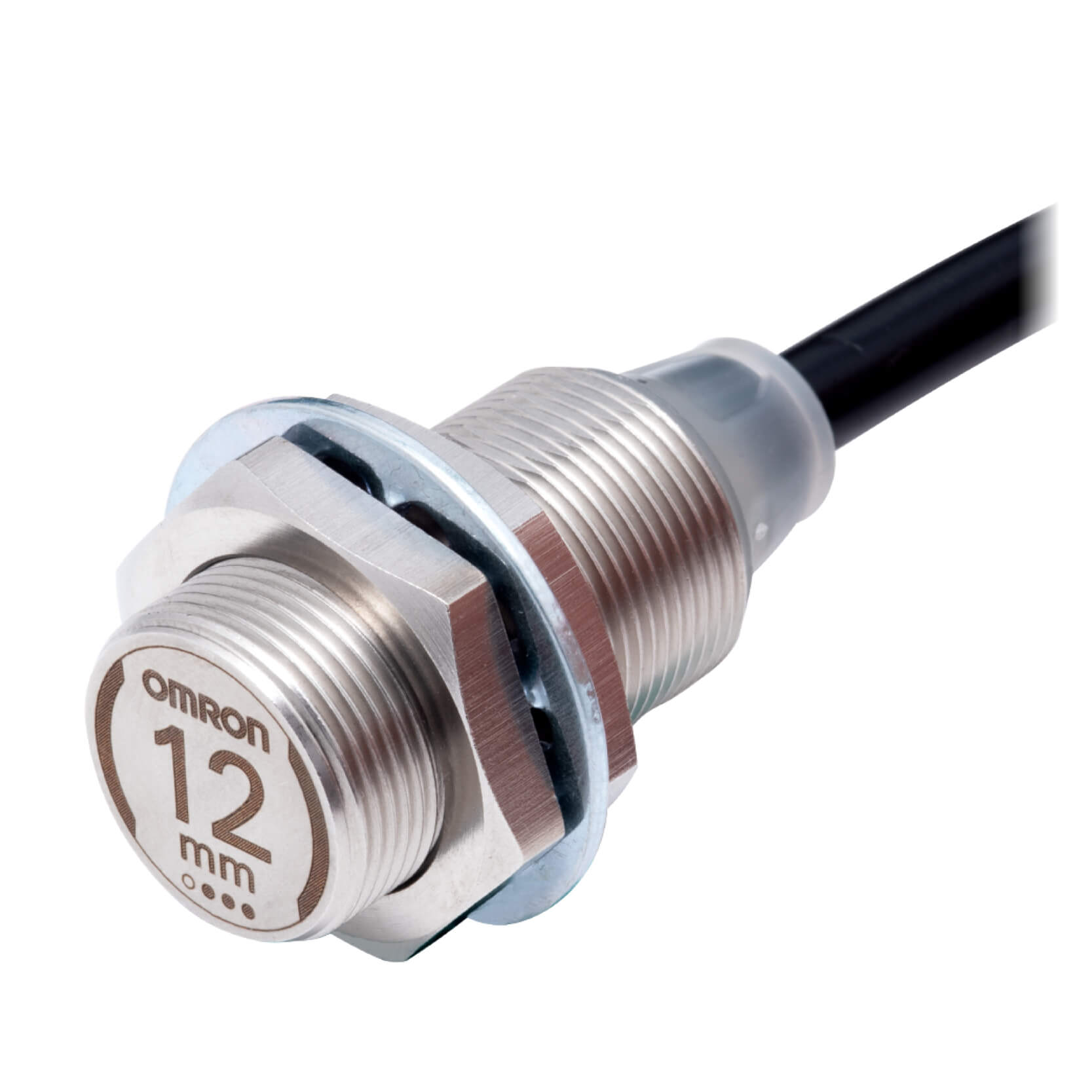

Omron E2EW-QX12C218-M1TJ 0.3M Inductive Proximity Sensor

The Omron E2EW-QX12C218-M1TJ 0.3M Inductive Proximity Sensor is engineered for non-contact detection of metallic objects in industrial automation systems where mechanical durability and environmental resistance are essential. As a member of the E2EW Series, this model incorporates a stainless-steel housing with a fluororesin coating and a full metal sensing face that helps withstand demanding manufacturing conditions. The sensor features a quasi-flush M18 threaded body, a rated sensing distance of 12 mm, an NPN normally closed output, and a compact 0.3-meter M12 Smartclick pigtail connection for streamlined installation.

Technical Description

The Omron E2EW-QX12C218-M1TJ 0.3M Inductive Proximity Sensor belongs to Omron’s E2EW family of heavy-duty inductive sensors developed for applications involving metallic targets. Its sensing circuit is designed to provide repeatable switching performance while maintaining stable operation in environments where oil mist, coolant, metal chips, or welding spatter may be present.

The stainless-steel threaded housing offers mechanical robustness, while the fluororesin coating improves resistance against adhesion of welding spatter and certain contaminants. The integrated M12 Smartclick pigtail connector enables quick replacement without rewiring long cable runs, reducing maintenance time in automated equipment.

Operating Principle

The sensor generates an alternating electromagnetic field at its sensing face. As a conductive metal object enters the detection zone, eddy currents are induced within the target material. These currents reduce the oscillation amplitude of the sensing circuit.

Once the internal detection threshold is reached, the sensor changes the state of its NPN normally closed output. Since no physical contact occurs between the sensor and the target, the sensing process minimizes mechanical wear while supporting reliable repetitive operation in automated machinery.

Typical Applications

• Automated assembly machines
• Industrial conveyor systems
• Robotic positioning systems
• Transfer equipment
• Machine tool monitoring
• Metal fabrication machinery
• Automotive production lines
• Packaging automation

The Omron E2EW-QX12C218-M1TJ 0.3M Inductive Proximity Sensor is suitable for installations requiring compact cable management together with dependable metallic object detection in continuous production environments.

Industrial Applications

Robotic Assembly

The sensor verifies fixture positioning and confirms component presence before robotic handling or assembly operations begin.

Automated Machining

CNC equipment uses inductive proximity sensors to monitor pallet position, machine slides, and clamping mechanisms throughout machining cycles.

Production Conveyors

Material transport systems use non-contact sensors to synchronize transfer stations and detect carrier positions without mechanical switches.

Metal Fabrication

Stamping presses and forming equipment rely on inductive sensing to monitor moving metallic components throughout repetitive production processes.

Advantages

• 12 mm rated sensing distance
• Three-wire DC NPN normally closed output
• M12 Smartclick pigtail connection
• Compact 0.3-meter cable
• Metal sensing surface
• Fluororesin-coated stainless-steel housing
• IP67 protection rating
• Suitable for demanding industrial environments

Additional information about compatible sensing technologies and related models is available within the Omron sensor product series.

Omron E2EW-QX12C218-M1TJ 0.3M Industry Examples

In automotive manufacturing, the sensor can verify the position of welding fixtures before robotic welding sequences begin. Within automated warehouse systems, it may detect lift mechanisms and indexing components. Packaging equipment can monitor metallic guide assemblies during product changeovers, while machine builders integrate the sensor into transfer systems to confirm carriage positioning before subsequent operations are executed.

Factors to Consider When Selecting the Sensor

• Verify that a 12 mm sensing distance matches application requirements.
• Ensure compatibility with NPN normally closed control inputs.
• Confirm that an M18 quasi-flush housing fits available installation space.
• Evaluate whether a 0.3-meter pigtail connection supports the intended wiring layout.
• Review environmental exposure, including moisture, coolant, and dust.
• Observe installation clearances recommended by the manufacturer to maintain sensing performance.

Omron E2EW-QX12C218-M1TJ 0.3M Frequently Asked Questions

1. What type of sensor is the Omron E2EW-QX12C218-M1TJ 0.3M Inductive Proximity Sensor?

It is a three-wire DC inductive proximity sensor designed for non-contact detection of metallic objects.

2. What is the rated sensing distance?

The sensor provides a rated sensing distance of 12 mm.

3. Which output configuration does this model use?

It features an NPN normally closed (NC) output.

4. How is the sensor connected?

This version includes a 0.3-meter M12 Smartclick pigtail connector for quick installation and replacement.

5. Is the sensor suitable for harsh industrial environments?

Yes. The stainless-steel housing, fluororesin coating, metal sensing face, and IP67 protection rating support operation in demanding manufacturing environments.

6. Where is this sensor commonly used?

It is widely applied in robotic systems, automated assembly equipment, conveyor systems, machine tools, and metal processing machinery.

7. Why is non-contact sensing beneficial?

Because there is no physical contact with the target, mechanical wear is minimized while consistent switching performance is maintained during repetitive production cycles.

8. What should be checked before installation?

Verify mounting space, controller input compatibility, connector type, sensing distance requirements, and recommended installation clearances to ensure reliable operation.
