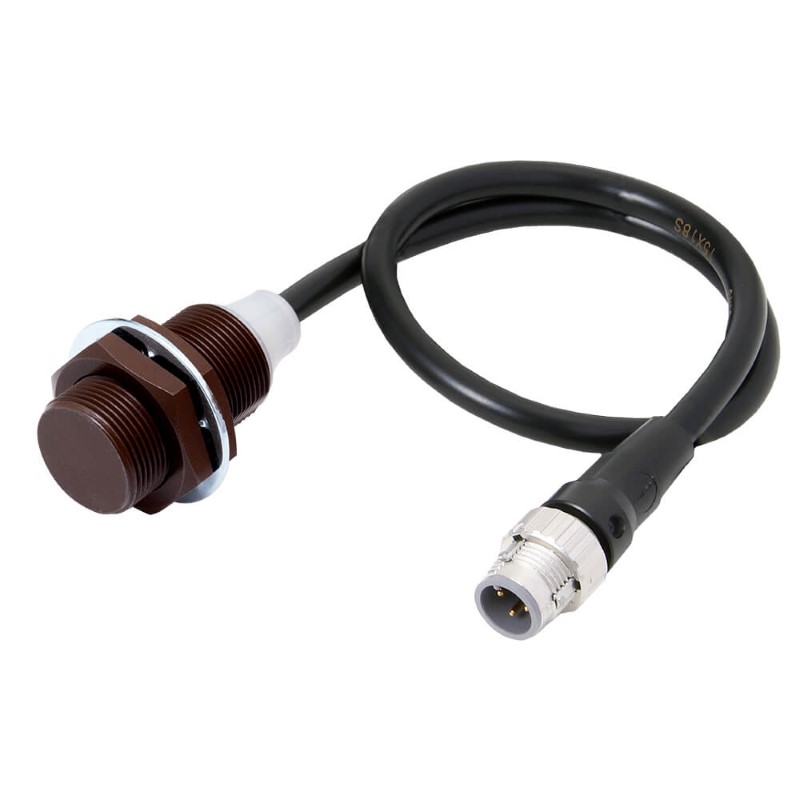

Omron E2EW-QX12C118-M1TJ 0.3M Inductive Proximity Sensor

The Omron E2EW-QX12C118-M1TJ 0.3M Inductive Proximity Sensor is designed for reliable metallic object detection in industrial environments where resistance to mechanical stress, coolant exposure, and welding spatter can be important considerations. This model belongs to the Omron E2EW family, which combines a stainless-steel housing with a fluororesin coating and a metal sensing face to improve durability in demanding production environments. The model features a quasi-flush M18 threaded body, a 12 mm sensing distance, an NPN normally open output, and an M12 Smartclick pigtail connection with a 0.3-meter cable. These specifications are provided by the manufacturer.

Technical Description

The Omron E2EW-QX12C118-M1TJ 0.3M Inductive Proximity Sensor operates as a three-wire DC inductive sensor intended for non-contact detection of metallic targets. The M18 threaded housing enables straightforward installation using standard industrial mounting hardware, while the quasi-flush mounting configuration provides flexibility when integrating the sensor into machinery.

The sensor housing is manufactured from stainless steel with a fluororesin coating. According to Omron, this construction helps improve resistance against environmental influences encountered in manufacturing systems. The IP67 protection rating also allows the sensor to operate in locations exposed to dust and temporary water immersion when installed correctly. :contentReference[oaicite:0]{index=0}

Operating Principle

The sensor generates a high-frequency electromagnetic field at its sensing face. When a conductive metallic object enters the specified sensing range, eddy currents are induced in the target material. These currents alter the oscillation characteristics inside the sensing circuit.

Once the internal detection threshold is reached, the sensor switches its NPN normally open output state. Since no physical contact is required, mechanical wear is minimized while maintaining repeatable switching performance for automated equipment.

Typical Applications

• Automated assembly equipment
• Robotic handling systems
• Machine tool position monitoring
• Metal component verification
• Production line indexing
• Transfer systems
• Packaging machinery
• Automotive manufacturing cells

Because the E2EW Series supports stable detection of various metal materials and incorporates a robust metal sensing face, it is frequently selected for production systems that require consistent object detection during repetitive operating cycles.

Industrial Applications

Automotive Production

The sensor can monitor fixture positions, detect stamped metal components, and confirm the presence of workpieces before automated operations continue.

Metal Processing

Presses, forming machines, and machining centers use inductive sensors to detect moving machine elements without mechanical contact.

Factory Automation

Material handling systems employ proximity sensors to synchronize conveyors, positioning units, and pneumatic actuators.

Robotics

Industrial robots use proximity sensors to verify component positioning before gripping, transferring, or assembling metallic parts.

Advantages

• 12 mm sensing distance
• Non-contact metal detection
• Stainless-steel threaded housing
• Fluororesin protective coating
• Metal sensing surface
• IP67 environmental protection
• M12 Smartclick pigtail connection
• Compact 41.5 mm overall length

Omron E2EW-QX12C118-M1TJ 0.3M Additional information about compatible models can be found under Omron sensor product series.

Omron E2EW-QX12C118-M1TJ 0.3M Industry Examples

In an automotive welding line, the sensor may verify the arrival of a metal fixture before robotic welding begins. Within CNC machining centers, it can monitor pallet positioning before machining cycles start. Packaging equipment may use the sensor to detect steel machine components during changeover procedures, while warehouse automation systems can monitor lift mechanisms and indexing assemblies containing metallic parts.

Selection Considerations

• Verify the required sensing distance.
• Confirm compatibility with an NPN control input.
• Select the appropriate mounting configuration.
• Check available installation space for the M18 body.
• Confirm connector compatibility with existing wiring.
• Review environmental protection requirements.
• Consider cable routing for the 0.3 m pigtail.
• Follow the installation clearances specified in the manufacturer documentation.

Omron E2EW-QX12C118-M1TJ 0.3M Frequently Asked Questions

1. What type of sensor is this?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

2. What is the sensing distance?

The rated sensing distance is 12 mm.

3. Which output configuration does it use?

The sensor provides a three-wire DC NPN normally open output.

4. What connection method is used?

It features an M12 Smartclick pigtail connector with a 0.3 m cable.

5. Is it suitable for wet industrial environments?

The IP67 protection rating supports operation in industrial environments where dust and temporary water exposure are present.

6. What housing material is used?

The housing is stainless steel with a fluororesin coating and incorporates a metal sensing face.

7. Where is this sensor commonly installed?

It is commonly used in manufacturing machinery, robotics, conveyors, assembly equipment, and machine tools.

8. Why is non-contact detection beneficial?

Non-contact operation minimizes mechanical wear while providing repeatable switching for automated industrial processes.
