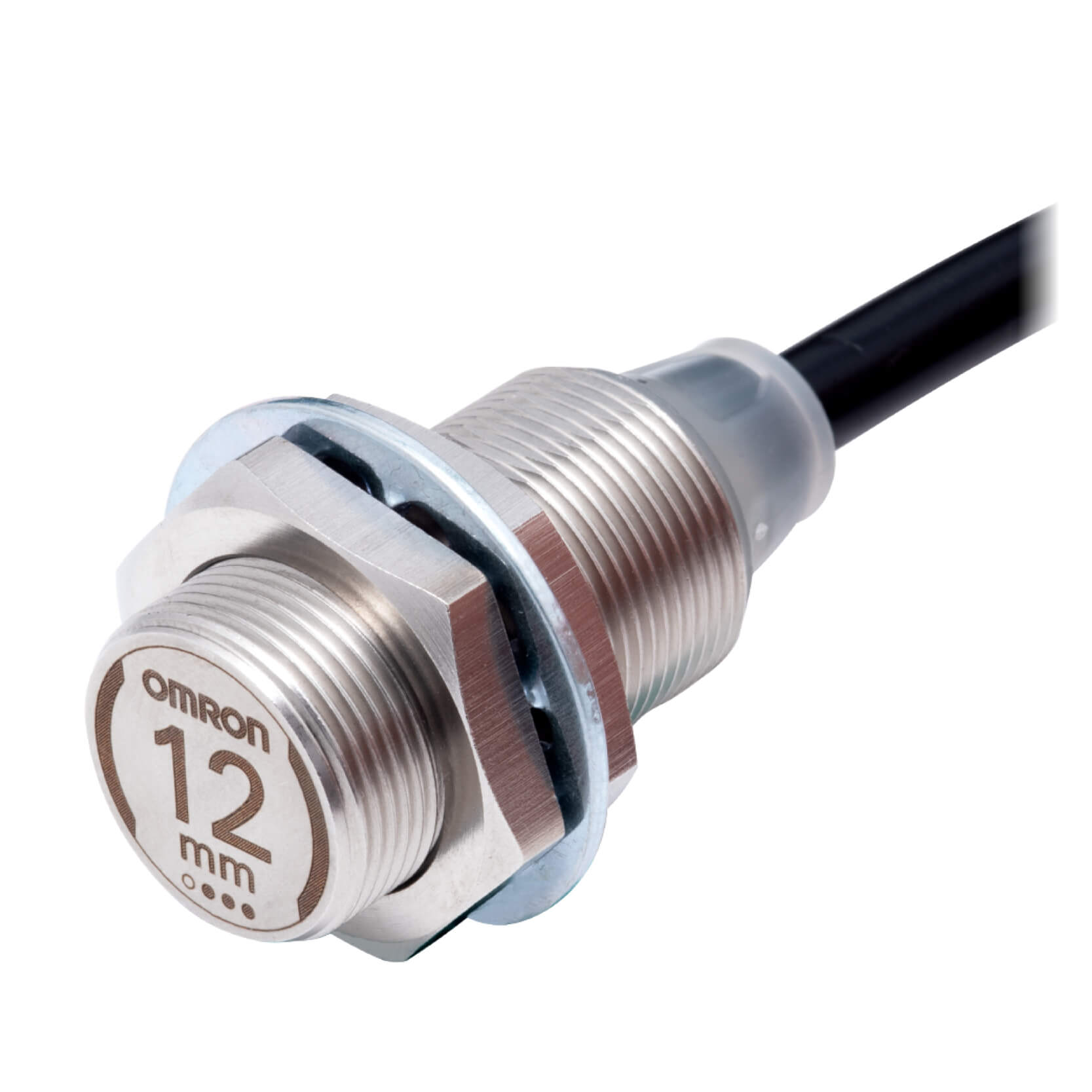

Omron E2EW-QX12B218-M1TJ 0.3M Inductive Proximity Sensor

The Omron E2EW-QX12B218-M1TJ 0.3M Inductive Proximity Sensor is designed for reliable metallic object detection in industrial systems where installation flexibility and resistance to harsh operating conditions are equally important. Equipped with a 0.3-meter pigtail cable and an M12 Smartclick connector, this model simplifies field wiring while maintaining a secure industrial connection. The stainless-steel construction and fluororesin-coated sensing face support continuous operation in environments exposed to welding spatter, lubricants, coolant, and airborne metallic particles. Product specifications are based on the official Omron documentation. :contentReference[oaicite:0]{index=0}

Technical Description

The Omron E2EW-QX12B218-M1TJ 0.3M Inductive Proximity Sensor belongs to the E2EW family of metal-face inductive sensors developed for demanding factory automation applications. The sensing circuit generates a high-frequency electromagnetic field capable of detecting conductive metallic targets without mechanical contact. When a metal object enters the 12 mm sensing area, the PNP normally closed output changes state, allowing the connected control system to monitor object presence with repeatable accuracy.

The fluororesin-coated sensing surface improves resistance to welding spatter adhesion, helping maintain stable sensing characteristics over extended operating periods. Combined with the rugged stainless-steel housing, the sensor is suitable for installations where contamination or elevated mechanical stress is expected.

Operating Principle

The sensing element continuously produces an alternating electromagnetic field at the active face of the sensor. When a conductive object approaches, eddy currents are generated within the target material. These currents reduce the oscillator amplitude, enabling the internal electronics to recognize the presence of the object and change the switching output.

Because the Omron E2EW-QX12B218-M1TJ 0.3M Inductive Proximity Sensor operates without physical contact, it eliminates mechanical wear while providing stable switching performance for repetitive industrial processes involving steel, iron, and aluminum workpieces.

Typical Applications

• Robotic welding systems
• Automated production machinery
• Machine tool positioning
• Metal fabrication equipment
• Industrial conveyor systems
• Assembly automation
• Fixture position verification
• Transfer and indexing mechanisms

Industrial Applications

Automotive Manufacturing

The fluororesin-coated sensing face helps reduce welding spatter accumulation, making the sensor suitable for robotic welding fixtures and automated body assembly lines.

Machine Building

The compact pigtail connector arrangement allows machine builders to simplify cable routing while maintaining quick replacement during maintenance activities.

Metal Processing

The sensor can detect metallic carriers, fixtures, dies, and workpieces without physical contact, supporting repeatable positioning throughout automated manufacturing processes.

Factory Automation

The M12 Smartclick connector enables efficient installation in modular production equipment where sensors are periodically replaced during preventive maintenance.

Advantages

• 12 mm sensing distance for metallic targets.
• PNP Normally Closed switching output.
• M12 Smartclick pigtail connection for simplified installation.
• 0.3 m integrated PVC cable.
• Fluororesin-coated sensing face.
• Stainless-steel housing for industrial durability.
• IP67 environmental protection.
• Suitable for welding and machining environments.

Selection Considerations

When selecting an inductive proximity sensor, engineers should verify the required sensing distance, switching logic, cable routing, connector style, installation space, and environmental exposure. Applications involving frequent sensor replacement often benefit from pigtail connector configurations because field maintenance can be completed without replacing the complete cable assembly. Fluororesin-coated models are particularly appropriate for equipment operating near welding stations or metal processing machinery.

Omron E2EW-QX12B218-M1TJ 0.3M Additional industrial sensing solutions are available within the Omron sensor products.

Omron E2EW-QX12B218-M1TJ 0.3M Frequently Asked Questions

1. What type of sensor is the Omron E2EW-QX12B218-M1TJ 0.3M?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

2. What is the rated sensing distance?

The sensor provides a rated sensing distance of 12 mm.

3. Which output configuration does it use?

This model features a PNP Normally Closed (NC) output.

4. Does this sensor support IO-Link?

No. This model is a conventional PNP NC sensor and does not include IO-Link communication.

5. What type of connection is provided?

The sensor uses a 0.3 m PVC pigtail terminated with an M12 Smartclick connector.

6. Why is the sensing face fluororesin coated?

The coating helps reduce welding spatter adhesion and improves long-term reliability in demanding industrial environments.

7. Which industries commonly use this model?

Automotive manufacturing, robotics, machine building, metal fabrication, conveyor automation, and general factory automation frequently use this sensor.

8. Where is the Omron E2EW-QX12B218-M1TJ 0.3M Inductive Proximity Sensor typically installed?

It is commonly installed on robotic welding cells, transfer equipment, automated fixtures, conveyor systems, machine tools, and positioning mechanisms where reliable non-contact metal detection is required.
