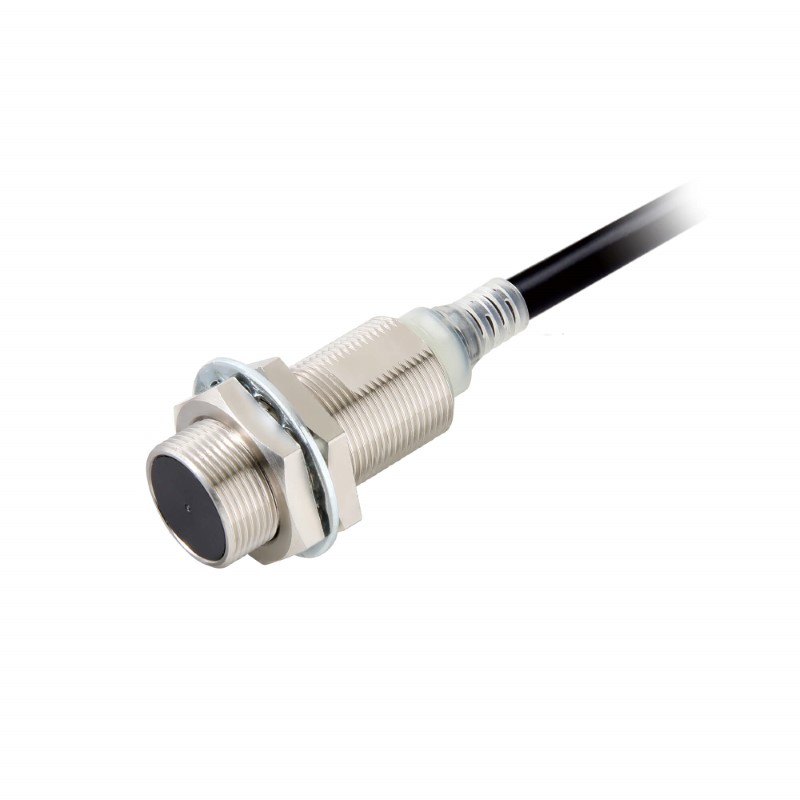

Omron E2E-X5D2-N 5M Inductive Proximity Sensor

Technical Description

The Omron E2E-X5D2-N 5M Inductive Proximity Sensor is designed for non-contact detection of metallic targets in industrial automation systems. As a member of the E2E NEXT family, it combines stable sensing performance with a robust cylindrical M18 housing. The model is equipped with a 5-meter integrated cable, making it suitable for installations where the sensor is positioned at a significant distance from the control cabinet or input module.

The Omron E2E-X5D2-N 5M Inductive Proximity Sensor is frequently selected for machinery, production lines, transfer systems, and automated equipment requiring dependable metal detection under demanding environmental conditions.

Operating Principle

The sensor operates through electromagnetic induction. An oscillator circuit creates a high-frequency electromagnetic field at the sensing surface. When a metallic object enters the sensing range, eddy currents are generated within the target material.

These eddy currents absorb energy from the electromagnetic field and alter the oscillator amplitude. Once the predefined switching threshold is reached, the sensor changes its output state and provides a signal to the connected control system.

This operating method eliminates mechanical contact and allows continuous detection without physical wear.

Applications and Usage Areas

The Omron E2E-X5D2-N 5M Inductive Proximity Sensor is suitable for a wide range of industrial detection tasks involving metallic components.

• Conveyor position monitoring
• Metal pallet detection
• Automated assembly equipment
• Packaging machinery
• Machine tool positioning systems
• Industrial transfer stations
• Automated storage systems
• Production line monitoring

The extended cable length allows engineers to reduce the need for additional extension wiring in large machine installations.

Industrial Applications

Automated Conveyor Systems

Conveyor manufacturers use the sensor to detect the arrival of metal carriers, indexing plates, and transport fixtures. The sensing signal can be integrated into PLC-controlled positioning sequences.

Manufacturing Equipment

Production machinery often requires confirmation of metal component presence before initiating the next process step. The sensor provides reliable feedback without introducing mechanical wear points.

Material Handling Installations

In automated handling systems, the sensor can verify the position of lifting mechanisms, transfer shuttles, and metal guide assemblies.

Assembly Automation

The Omron E2E-X5D2-N 5M Inductive Proximity Sensor can be integrated into assembly stations for detecting fixture locations and validating part positioning before automated operations begin.

Additional sensing technologies and related products can be explored through Omron sensor products for broader automation system design.

Omron E2E-X5D2-N 5M Advantages

• Non-contact metallic object detection
• Extended 5-meter cable for flexible installation
• Flush mounting configuration
• Compact M18 threaded housing
• Oil-resistant cable construction
• High environmental protection ratings
• Reduced maintenance requirements
• Suitable for demanding industrial environments

Selection Considerations

Engineers selecting an inductive sensor should evaluate the required sensing distance, installation geometry, environmental exposure, output requirements, and cable routing needs.

The Omron E2E-X5D2-N 5M Inductive Proximity Sensor is particularly suitable when a flush-mounted M18 sensor with a 5 mm sensing distance and long cable connection is required.

Frequently Asked Questions

What type of targets can this sensor detect?

The sensor is designed to detect conductive metallic objects.

What is the sensing distance?

The nominal sensing distance is 5 mm.

Does the sensor support flush mounting?

Yes, it is designed for flush installation.

What output configuration does it use?

The sensor uses a DC 2-wire NC output configuration.

What is the cable length?

The integrated cable length is 5 meters.

Is the cable resistant to industrial oils?

Yes, the sensor uses an oil-resistant PVC cable.

Can the sensor operate in washdown environments?

The IP67, IP67G, and IP69K protection ratings support operation in demanding industrial environments where exposure to moisture and contaminants may occur.

Where is the Omron E2E-X5D2-N 5M Inductive Proximity Sensor commonly used?

It is commonly used in conveyor systems, packaging equipment, automated machinery, assembly stations, and material handling applications.
