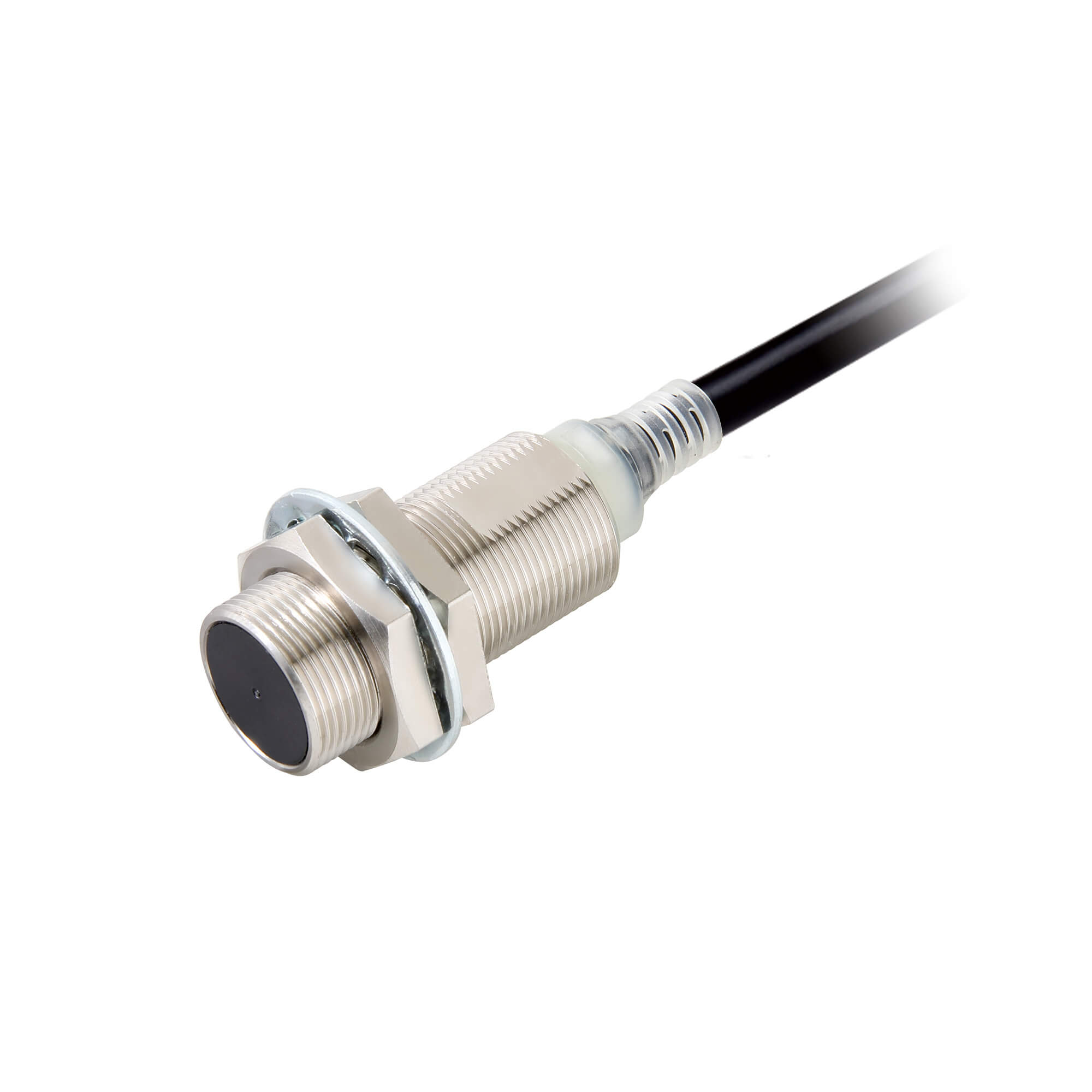

Omron E2E-X5D1-TR-N 5M Inductive Proximity Sensor

Industrial facilities often require reliable sensing solutions capable of operating across large machine structures and extended cable routing distances. The Omron E2E-X5D1-TR-N 5M Inductive Proximity Sensor is designed for these environments, providing dependable metal object detection together with a 5-meter cable that simplifies installation in complex automation systems.

As part of the E2E NEXT product family, this sensor combines robust mechanical construction, high environmental protection ratings, and a normally closed output configuration. The Omron E2E-X5D1-TR-N 5M Inductive Proximity Sensor is frequently integrated into production equipment, transfer systems, assembly stations, and industrial machinery where continuous monitoring of metallic components is required.

Technical Description

This model is a shielded inductive proximity sensor featuring a rated sensing distance of 5 mm. Its flush mounting capability allows installation directly into metallic machine frames and equipment structures without compromising sensing stability.

The sensor utilizes a DC two-wire normally closed output architecture. This configuration is commonly selected in applications where fault monitoring and circuit continuity verification are important aspects of machine operation.

The nickel-plated brass housing offers mechanical durability and resistance to industrial contaminants, while the sensing face is manufactured from PBT material for long-term reliability in demanding environments.

Working Principle

The sensor operates using electromagnetic induction. A high-frequency oscillator generates a magnetic field at the sensing surface. When a conductive metallic target enters this field, eddy currents are created within the object.

These eddy currents absorb energy from the oscillator circuit, causing a measurable reduction in oscillation amplitude. Once the detection threshold is reached, the sensor changes its output state and communicates the event to connected control equipment.

Because the sensing process occurs without physical contact, the sensor can perform consistently over extended operating periods while minimizing mechanical wear.

Common Areas of Use

• Machine position monitoring
• Metal component detection
• Automated assembly systems
• Conveyor and transfer equipment
• Packaging machinery
• Industrial robotics
• Material handling systems
• Production line automation

The Omron E2E-X5D1-TR-N 5M Inductive Proximity Sensor is particularly useful in installations where the sensor location is significantly separated from control cabinets and PLC input modules.

Industrial Applications

Automotive Production Systems

Automotive manufacturing facilities use inductive sensors to monitor fixtures, detect body components, and verify machine positions throughout assembly operations.

Warehouse Automation

Automated logistics systems require position feedback from transfer mechanisms, conveyors, and shuttle systems. The extended cable length simplifies deployment across large equipment layouts.

Packaging and Processing Equipment

Packaging machinery often relies on proximity sensors to monitor machine movement, carrier positions, and sequence control points without introducing contact-related wear.

Machine Tool Applications

Industrial machine tools use sensors to verify axis positions, monitor clamps, and detect metal workpieces during machining operations.

Omron E2E-X5D1-TR-N 5M Advantages

• 5 mm sensing distance
• Normally closed output configuration
• Flush mounting capability
• Extended 5-meter cable
• IP67, IP67G, and IP69K protection ratings
• Durable nickel-plated brass housing
• Oil-resistant cable construction
• Reliable operation in industrial environments

Additional Omron sensor solutions are available for engineers requiring different sensing distances, housing dimensions, or output configurations within automation projects.

Sector-Specific Usage Examples

• Monitoring pallet positions in automated warehouses
• Detecting steel components in fabrication systems
• Verifying actuator travel positions in machinery
• Tracking carriers in conveyor applications
• Monitoring robotic transfer stations
• Detecting machine fixture locations in production lines

Selection Considerations

When choosing an inductive proximity sensor, engineers should evaluate sensing range requirements, installation conditions, environmental exposure, wiring distances, and control system compatibility.

The Omron E2E-X5D1-TR-N 5M Inductive Proximity Sensor is suitable for applications requiring a normally closed output and extended cable routing. Careful assessment of target size and mounting conditions helps ensure optimal sensing performance.

Control system designers should also verify compatibility with PLC inputs, relay interfaces, and machine safety strategies before implementation.

Omron E2E-X5D1-TR-N 5M Frequently Asked Questions

What sensing distance does this sensor provide?

The rated sensing distance is 5 mm.

What output configuration is used?

The sensor features a normally closed (NC) DC two-wire output.

What is the cable length of this version?

This model is supplied with a 5-meter permanently attached cable.

Can it be mounted flush in metal?

Yes. The shielded design supports flush mounting within metallic structures.

Omron E2E-X5D1-TR-N 5M What materials can be detected?

The sensor is designed for the detection of metallic objects using electromagnetic induction.

What industries commonly use this sensor?

Automotive, logistics, packaging, machine building, and factory automation industries commonly utilize this model.

How does the sensing technology work?

The sensor generates an electromagnetic field and detects changes caused by eddy currents induced in nearby metal targets.

What protection ratings are available?

The sensor meets IP67, IP67G, and IP69K protection standards.

What temperature range supports operation?

The operating temperature range is -25°C to +70°C.

Why choose a normally closed output?

Normally closed configurations are often selected for applications requiring enhanced diagnostic monitoring and circuit continuity verification.
