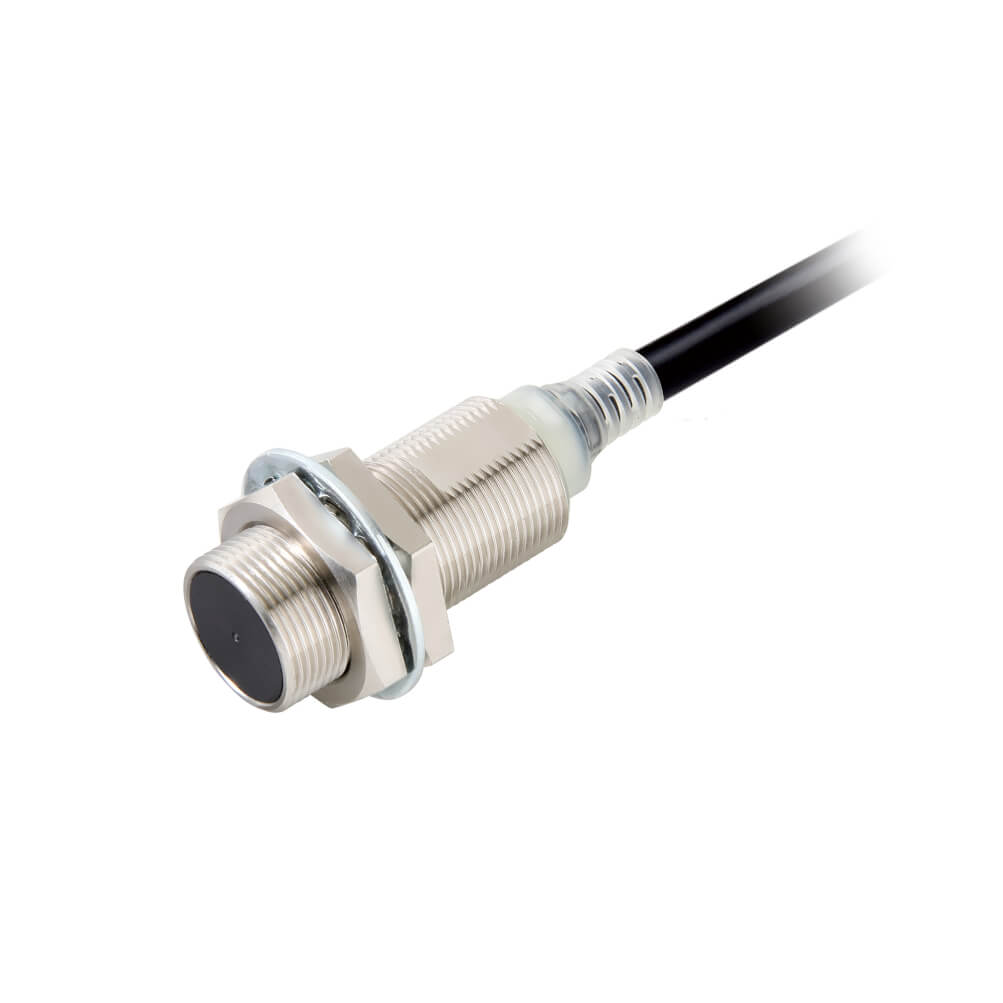

Omron E2E-X5D2-N 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | Omron E2E NEXT |
| Sensing Distance | 5 mm |
| Size | M18 |
| Mounting Type | Flush |
| Output Type | DC 2-Wire |
| Operation Mode | NC |
| Connection Method | Cable |
| Cable Length | 2 m |
| Cable Specification | PVC, Oil-Resistant |
| Housing Material | Nickel-Plated Brass |
| Overall Sensor Length | 54.3 mm |
| Thread Length | 37 mm |
| Protection Rating | IP67, IP67G, IP69K |
Technical Description
The Omron E2E-X5D2-N 2M Inductive Proximity Sensor is an M18 cylindrical sensor from the E2E NEXT family, designed for non-contact detection of metallic objects. It uses a flush mounting structure, allowing the sensing face to be installed level with a metal bracket or machine surface. This structure is useful in compact equipment where the sensor must be protected from mechanical contact while still maintaining a defined sensing position.
With a 5 mm sensing distance, DC 2-wire output, NC operation mode, and 2 m oil-resistant PVC cable, the sensor is suitable for control cabinets, conveyor frames, indexing mechanisms, and automated machine modules where a directly wired proximity signal is required.
Operating Principle
The sensor generates an electromagnetic field at its active face. When a conductive target enters this field, eddy currents are produced in the metal object. These currents reduce the oscillator energy inside the sensor circuit. When the change reaches the switching threshold, the output state changes.
Because the Omron E2E-X5D2-N 2M Inductive Proximity Sensor detects metal without physical contact, it helps reduce wear in repetitive position-checking tasks. The NC output behavior is often selected where the control circuit expects the signal to open when a target is detected or when a specific machine condition changes.
Omron E2E-X5D2-N 2M Usage Areas and Industrial Applications
This sensor is commonly used for detecting metal machine parts, slide positions, fixture presence, carrier plates, metal stops, and tooling references. In packaging equipment, it can monitor actuator end positions. In metalworking machinery, it can confirm part seating before a machining cycle starts. In conveyor systems, it can detect steel pallets or guide elements.
In industrial automation, the sensor may work together with PLC input modules, relay interfaces, safety-related monitoring circuits, pneumatic cylinders, indexing tables, and motor-driven transport systems. For additional product families, Omron sensor series can be reviewed within a broader automation context.
Advantages
- Flush M18 housing supports protected installation.
- 5 mm sensing distance is practical for many metallic targets.
- DC 2-wire output simplifies wiring in compatible control circuits.
- Oil-resistant PVC cable supports machine environments.
- Nickel-plated brass housing provides mechanical durability.
- IP67, IP67G, and IP69K ratings support demanding industrial areas.
Sector-Based Use Examples
Packaging Machinery
The sensor can confirm whether a metal guide, pusher, or actuator has reached its mechanical position before the next sequence begins.
Machine Tool Systems
It can detect a fixture clamp or reference plate to help the controller confirm that the workpiece is correctly positioned.
Omron E2E-X5D2-N 2M Material Handling
In transfer stations, the sensor can identify metal carrier arrival and provide a signal to stop or index the conveyor.
Omron E2E-X5D2-N 2M Selection Considerations
When selecting this model, engineers should check the required sensing distance, target material, mounting method, cable routing, input compatibility, and environmental exposure. The Omron E2E-X5D2-N 2M Inductive Proximity Sensor is appropriate where a flush M18 sensor, 5 mm range, 2 m cable, and NC DC 2-wire output match the machine design.
Frequently Asked Questions
What does this sensor detect?
It detects metallic objects using inductive sensing technology.
What is the sensing distance?
The rated sensing distance is 5 mm.
Is it flush mountable?
Yes, it is designed for flush installation.
Omron E2E-X5D2-N 2M What output type does it use?
It uses a DC 2-wire output.
What is the operation mode?
The operation mode is NC.
Can it be used near oil exposure?
The cable is oil-resistant PVC, and the sensor has industrial protection ratings.
What housing material is used?
The housing is nickel-plated brass.
Where is it typically installed?
It is typically installed on machinery, conveyors, fixtures, and metal position detection points.
