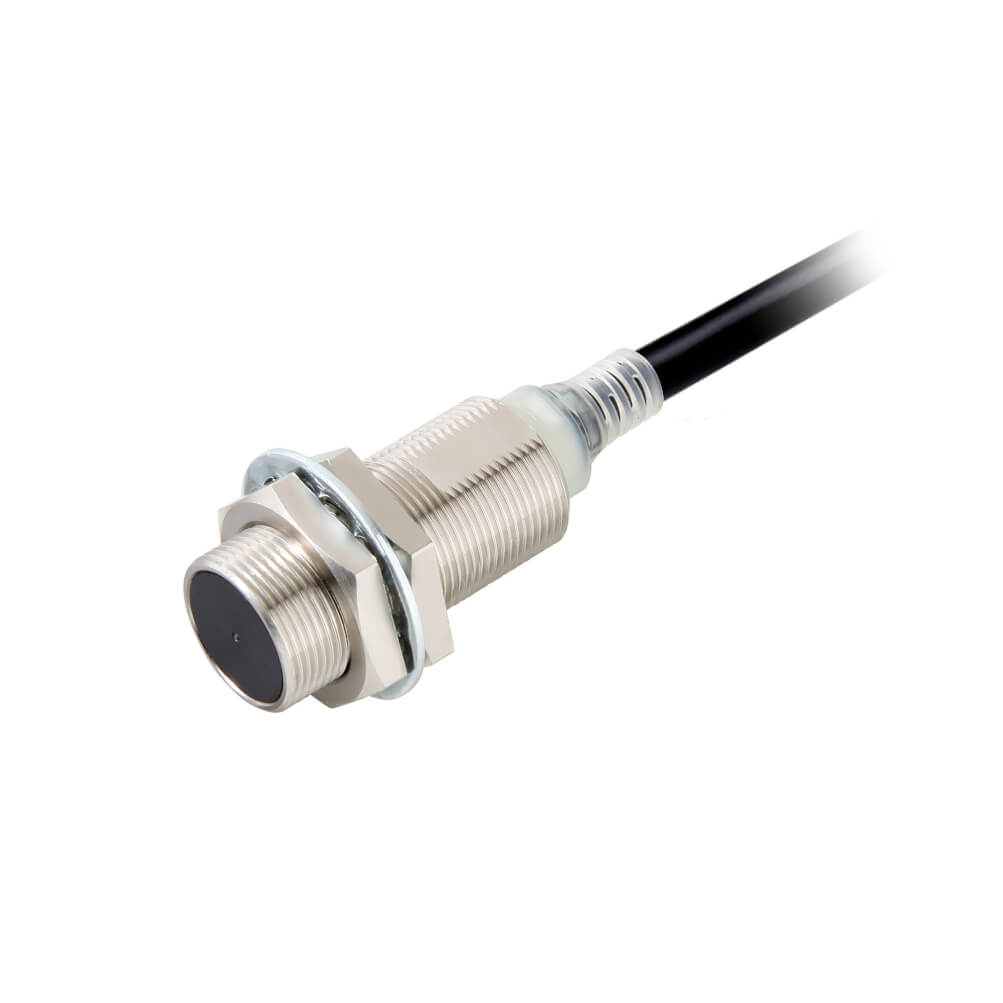

Omron E2E-X5D1-T-N 2M Inductive Proximity Sensor

The Omron E2E-X5D1-T-N 2M Inductive Proximity Sensor is designed for non-contact detection of metallic objects in industrial automation systems. As part of the E2E NEXT family, this sensor incorporates a compact M18 threaded housing and a shielded sensing structure that allows flush mounting within metal surfaces. The device is suitable for machinery, material handling equipment, assembly lines, and automated production systems where reliable object detection is required.

The Omron E2E-X5D1-T-N 2M Inductive Proximity Sensor combines a 5 mm sensing distance with a two-wire DC output design, enabling straightforward integration into existing control architectures. Its oil-resistant cable and high environmental protection ratings support operation in demanding industrial environments.

Technical Description

This sensor uses inductive sensing technology to detect ferrous metal targets without physical contact. The sensing element generates an electromagnetic field at the sensor face. When a metallic object enters the sensing zone, the field is disturbed, causing the internal circuitry to switch the output state.

The sensor features a shielded sensing structure, also known as a flush-mount design. This allows the body of the sensor to be mounted directly into metallic machine components while maintaining stable sensing performance. The nickel-plated brass housing provides mechanical durability and resistance to industrial contaminants.

Working Principle

The Omron E2E-X5D1-T-N 2M Inductive Proximity Sensor operates using a high-frequency oscillator. The sensor continuously emits an electromagnetic field from its sensing face. When a conductive metal object approaches the sensing area, eddy currents are induced in the target material.

These eddy currents absorb energy from the oscillator circuit. Once the change reaches a predetermined threshold, the output stage switches and signals the presence of the target to a PLC, relay, controller, or other automation device.

Because no physical contact occurs during operation, wear-related mechanical failures are minimized. This characteristic contributes to long service life in repetitive industrial applications.

Typical Applications

• Position monitoring of machine components
• Metal part detection on conveyor systems
• Automated assembly equipment
• Packaging machinery
• Industrial transfer systems
• Production line indexing mechanisms
• Factory automation control systems
• Presence detection in manufacturing cells

The Omron E2E-X5D1-T-N 2M Inductive Proximity Sensor is frequently used where reliable detection of metallic workpieces is necessary without introducing mechanical contact points.

Industrial Applications

Automotive Manufacturing

Automotive assembly plants use inductive proximity sensors to verify the presence of metal parts, monitor fixture positions, and confirm mechanical movement during production processes.

Packaging Systems

Packaging machinery often relies on sensors to track metallic machine components and synchronize operational sequences. The sensor’s compact design simplifies installation within confined machine frames.

Omron E2E-X5D1-T-N 2M Material Handling Equipment

Conveyor systems, lift mechanisms, and transfer stations use proximity sensing devices to detect pallet positions, moving carriers, and actuator locations.

Machine Tool Industry

Machine tools frequently employ inductive sensors to monitor clamp positions, tool carriers, and machine status conditions. The oil-resistant cable design supports operation in environments exposed to cutting fluids.

Advantages

• Non-contact metal detection
• Flush mounting capability
• IP67, IP67G, and IP69K protection ratings
• Oil-resistant PVC cable
• Compact M18 housing
• Wide operating temperature range
• No polarity wiring design
• Stable switching performance in industrial environments

Additional information about Omron sensor products can help engineers identify compatible sensing technologies for broader automation projects.

Omron E2E-X5D1-T-N 2M Industry-Specific Usage Examples

• Detecting stamped steel components in automotive press lines
• Monitoring metal carriers in logistics automation systems
• Verifying machine guard positions in production equipment
• Tracking indexing tables in assembly stations
• Confirming actuator end positions in industrial machinery
• Detecting metallic containers in packaging operations

Considerations When Selecting a Proximity Sensor

Engineers should evaluate several factors before selecting an inductive sensor. The required sensing distance, available installation space, environmental conditions, output configuration, and connection method all influence product selection.

For installations involving metal mounting surfaces, shielded sensors such as the Omron E2E-X5D1-T-N 2M Inductive Proximity Sensor provide predictable sensing performance. Environmental protection requirements should also be reviewed when sensors are exposed to washdown processes, oils, or dust.

Frequently Asked Questions

What type of sensor is the Omron E2E-X5D1-T-N 2M?

It is a shielded inductive proximity sensor designed for non-contact detection of metallic objects.

What is the sensing distance?

The rated sensing distance is 5 mm.

Does the sensor require direct contact with the target?

No. Detection occurs through an electromagnetic field without physical contact.

Omron E2E-X5D1-T-N 2M What output configuration does it use?

The sensor uses a normally open (NO) DC 2-wire output.

Can it be mounted flush in metal?

Yes. Its shielded construction supports flush mounting applications.

What protection ratings are available?

The sensor is rated IP67, IP67G, and IP69K.

What industries commonly use this sensor?

Automotive, packaging, machine building, logistics, and factory automation industries commonly use it.

What is the operating temperature range?

The sensor is designed to operate from -25°C to +70°C.

What cable length is included?

The standard model is supplied with a 2-meter oil-resistant PVC cable.

What objects can the sensor detect?

It is primarily designed to detect ferrous metal targets, although other conductive metals may also be detected with varying sensitivity.
