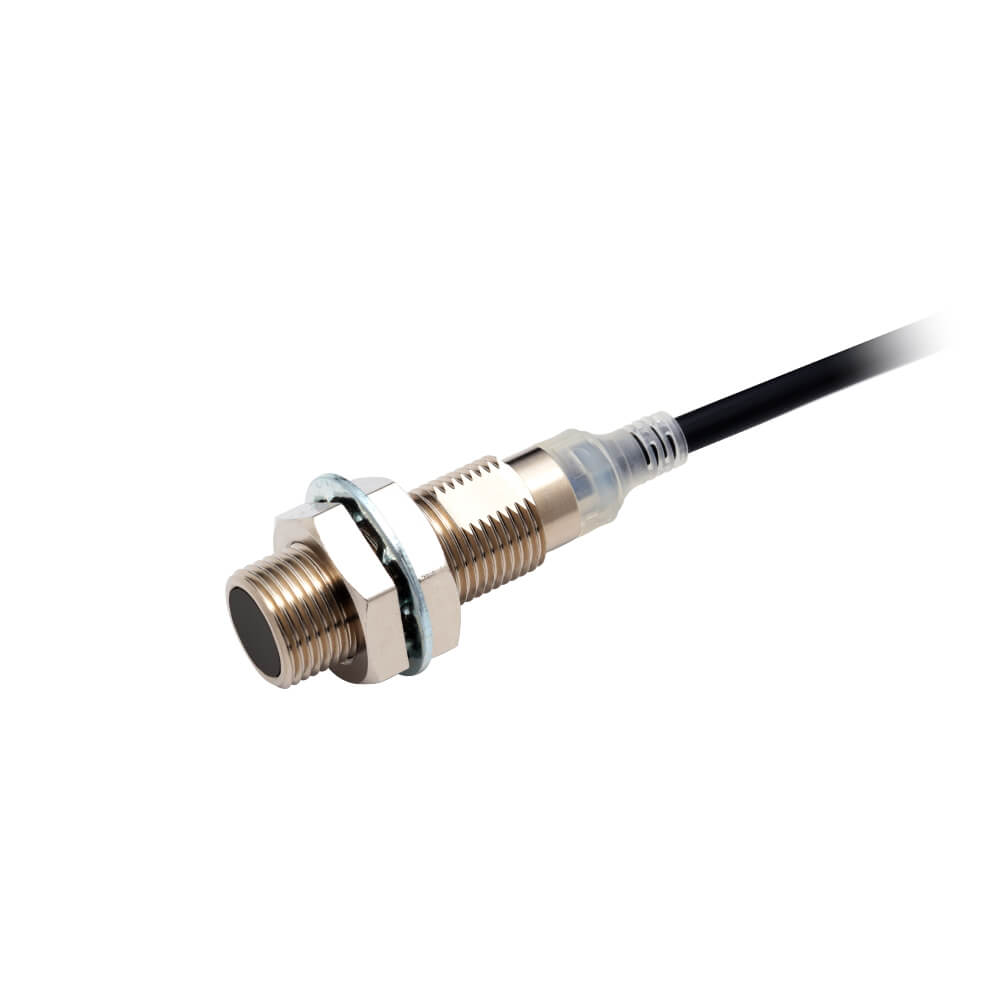

Omron E2E-X5D1-T-N 5M Inductive Proximity Sensor

Industrial automation systems often require reliable object detection devices that can operate continuously in demanding environments. The Omron E2E-X5D1-T-N 5M Inductive Proximity Sensor is designed to detect metallic objects without physical contact while providing stable switching performance across a wide range of industrial applications.

As a member of the E2E NEXT series, this sensor combines a shielded sensing structure, robust mechanical construction, and an extended 5-meter cable for installations where control panels or input modules are positioned far from the sensing point. The sensor is commonly integrated into machinery, assembly equipment, material transport systems, and automated production lines.

Technical Description

The Omron E2E-X5D1-T-N 5M Inductive Proximity Sensor utilizes electromagnetic induction to identify metallic targets within a rated sensing distance of 5 mm. The sensor features a cylindrical M18 threaded housing that supports flush mounting in metal surfaces without significantly affecting detection performance.

The DC two-wire output configuration simplifies installation in control systems where wiring space is limited. The longer cable length provides flexibility in machine design by reducing the need for additional extension cables and connection points.

The sensor housing is manufactured from nickel-plated brass to provide resistance against mechanical impact, vibration, and exposure to industrial contaminants. The sensing surface is constructed from durable PBT material suitable for long-term operation.

Working Principle

The sensing mechanism is based on an oscillator circuit that generates a high-frequency electromagnetic field at the front sensing face. When a conductive metal target enters this field, eddy currents develop inside the target material.

The formation of these currents absorbs energy from the oscillator circuit. The sensor continuously monitors this energy variation and activates the output stage once the switching threshold is reached.

This non-contact operating method eliminates mechanical wear associated with traditional limit switches. As a result, the sensor can maintain consistent operation even in applications involving frequent switching cycles.

Applications in Automation Systems

• Metal component detection on production lines
• Position sensing in automated machinery
• Presence verification of machine elements
• Conveyor tracking systems
• Packaging and filling equipment
• Robotic transfer stations
• Industrial indexing mechanisms
• Assembly line monitoring

The Omron E2E-X5D1-T-N 5M Inductive Proximity Sensor is particularly useful in installations where long cable runs are required between sensing locations and control cabinets.

Omron E2E-X5D1-T-N 5M Industrial Applications

Assembly Automation

Manufacturing facilities frequently use inductive sensors to verify part positioning and monitor automated assembly sequences. Reliable target detection supports repeatable production processes.

Logistics and Conveying Systems

Conveyor systems utilize proximity sensors to detect carriers, pallets, and moving mechanical components. Extended cable lengths simplify installation across large transport lines.

Packaging Equipment

Packaging machinery depends on accurate position monitoring of moving assemblies. The sensor can provide switching signals for sequence control and machine synchronization.

Process Machinery

Industrial process equipment often requires position confirmation of actuators, valves, and moving machine elements. The sensor can support these functions while operating in environments exposed to vibration and contaminants.

Advantages

• 5 mm sensing distance for metallic targets
• Extended 5-meter cable for flexible installation
• Flush-mount shielded design
• DC two-wire wiring configuration
• Protection ratings up to IP69K
• Oil-resistant cable construction
• Durable metal housing
• Stable operation in industrial environments

Engineers evaluating automation components can explore additional Omron sensor series for applications requiring alternative sensing distances, mounting styles, or output configurations.

Sector-Specific Usage Examples

• Detecting steel fixtures in automotive welding cells
• Monitoring pallet transfer positions in warehouse automation
• Verifying actuator travel limits in machine tools
• Tracking carriers in automated assembly systems
• Position sensing in industrial lifting equipment
• Metal object detection in packaging machinery

Important Selection Considerations

When selecting an inductive proximity sensor, engineers should evaluate sensing distance requirements, installation constraints, target material properties, environmental exposure, and wiring architecture.

The Omron E2E-X5D1-T-N 5M Inductive Proximity Sensor offers advantages in applications requiring flush mounting and extended cable routing. Environmental protection requirements should also be considered when equipment operates in washdown or contamination-prone areas.

System designers should verify electrical compatibility with PLC inputs, relay interfaces, and machine control systems before implementation.

Frequently Asked Questions

What is the sensing range of this sensor?

The rated sensing distance is 5 mm for standard ferrous metal targets.

Omron E2E-X5D1-T-N 5M What type of output does the sensor provide?

It uses a DC 2-wire normally open output configuration.

Can the sensor be mounted inside metal surfaces?

Yes. Its shielded design allows flush mounting in metallic structures.

What is the cable length of this model?

This version is supplied with a permanently attached 5-meter cable.

Which materials can be detected?

The sensor is optimized for metallic targets and is particularly suitable for ferrous metals.

Omron E2E-X5D1-T-N 5M What protection standards does the sensor meet?

It is rated IP67, IP67G, and IP69K for demanding industrial environments.

Is the sensor suitable for automated machinery?

Yes. It is commonly used in automated production, assembly, and material handling systems.

What temperature range supports operation?

The sensor operates between -25°C and +70°C.

How does the sensor detect metal objects?

It generates an electromagnetic field and monitors changes caused by eddy currents induced in nearby metal targets.

Why would an application require the 5-meter cable version?

The longer cable simplifies installations where sensors are located far from control cabinets or PLC input modules.
