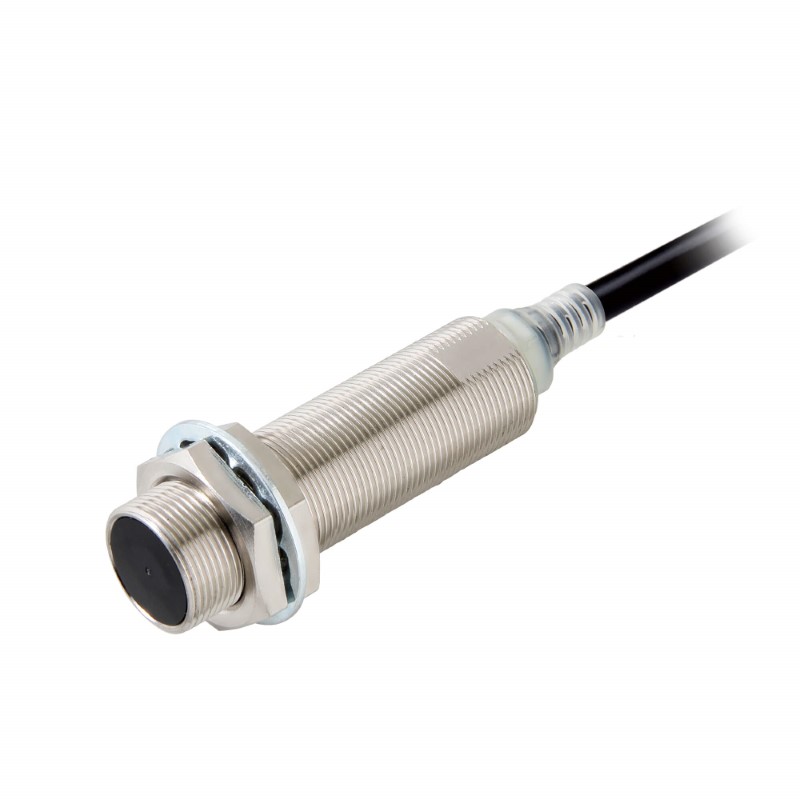

Omron E2E-X5C2L18 2M Inductive Proximity Sensor

Industrial automation systems often require reliable metal detection devices capable of operating continuously under demanding environmental conditions. The Omron E2E-X5C2L18 2M Inductive Proximity Sensor is designed to fulfill this role by providing non-contact sensing of metallic targets while maintaining stable performance across a wide range of operating environments.

Technical Description

The Omron E2E-X5C2L18 2M Inductive Proximity Sensor belongs to the E2E NEXT family of cylindrical inductive sensors. It features an M18 threaded housing with a nominal sensing distance of 5 mm and a flush-mounted design that enables installation within metallic machine structures.

The sensor incorporates an NPN open-collector output configured for normally closed operation. A permanently attached 2-meter cable simplifies installation in machinery where connector-based wiring may not be preferred.

Its rugged construction includes a nickel-plated brass housing and environmental protection ratings of IP67 and IP69K, making the sensor suitable for industrial locations exposed to water, dust, vibration, and cleaning procedures.

Working Principle

The sensor generates an oscillating electromagnetic field at the sensing surface. When a conductive metallic object enters the detection zone, energy losses occur through induced eddy currents inside the target material.

These changes alter the oscillator characteristics within the sensor. Internal signal processing electronics evaluate the variation and activate the output when the detection threshold is reached.

This method allows the Omron E2E-X5C2L18 2M Inductive Proximity Sensor to perform object detection without physical contact, minimizing wear and maintenance requirements.

Common Usage Areas

• Automated manufacturing equipment
• Assembly stations
• Material transfer systems
• Conveyor control applications
• Metalworking machinery
• Packaging equipment
• Pneumatic actuator monitoring

Industrial Applications

In metal fabrication facilities, the sensor can be used to detect workpiece positioning before machining operations begin. Reliable position verification helps improve process consistency.

In logistics systems, sensors of this type are commonly installed on transfer units and conveyor mechanisms to confirm movement and positioning of metallic carriers.

The Omron E2E-X5C2L18 2M Inductive Proximity Sensor is also suitable for automated assembly environments where repetitive detection of metallic fixtures and machine components is required.

Advantages

• Reliable non-contact metal detection
• Flush mounting capability
• Integrated 2-meter cable connection
• Wide operating temperature range
• Resistance to dust and water ingress
• High switching frequency for dynamic applications
• Mechanical durability for industrial installations

Sector-Specific Use Cases

Machine Building

Used to monitor moving machine components and confirm operating positions during production cycles.

Automated Warehousing

Supports metallic pallet positioning and transfer equipment control.

Packaging Industry

Provides reliable detection of metallic mechanisms used in filling, sealing, and transport equipment.

Factors to Consider During Selection

• Target material composition should be suitable for inductive sensing.
• Available installation space should match M18 dimensions.
• Required sensing distance should be verified against application requirements.
• Control system compatibility should be confirmed.
• Environmental conditions should be evaluated before installation.

Engineers evaluating alternative sensing solutions may also review Omron sensor series for related automation applications.

Frequently Asked Questions

What is the sensing range of this sensor?

The nominal sensing distance is 5 mm.

What type of output does the sensor provide?

It provides an NPN open-collector output.

Does the sensor use a cable connection?

Yes. It includes a permanently attached 2-meter cable.

Can it be mounted inside metal surfaces?

Yes. Its shielded construction supports flush mounting.

What voltage range is supported?

The operating voltage range is 10 to 30 VDC.

What environmental protection ratings are available?

The sensor is rated IP67 and IP69K.

Where is the Omron E2E-X5C2L18 2M Inductive Proximity Sensor commonly used?

It is frequently used in machinery, conveyors, robotics, and industrial automation systems.

How does the Omron E2E-X5C2L18 2M Inductive Proximity Sensor detect objects?

It detects metallic objects by monitoring changes in an electromagnetic field generated at the sensing surface.
