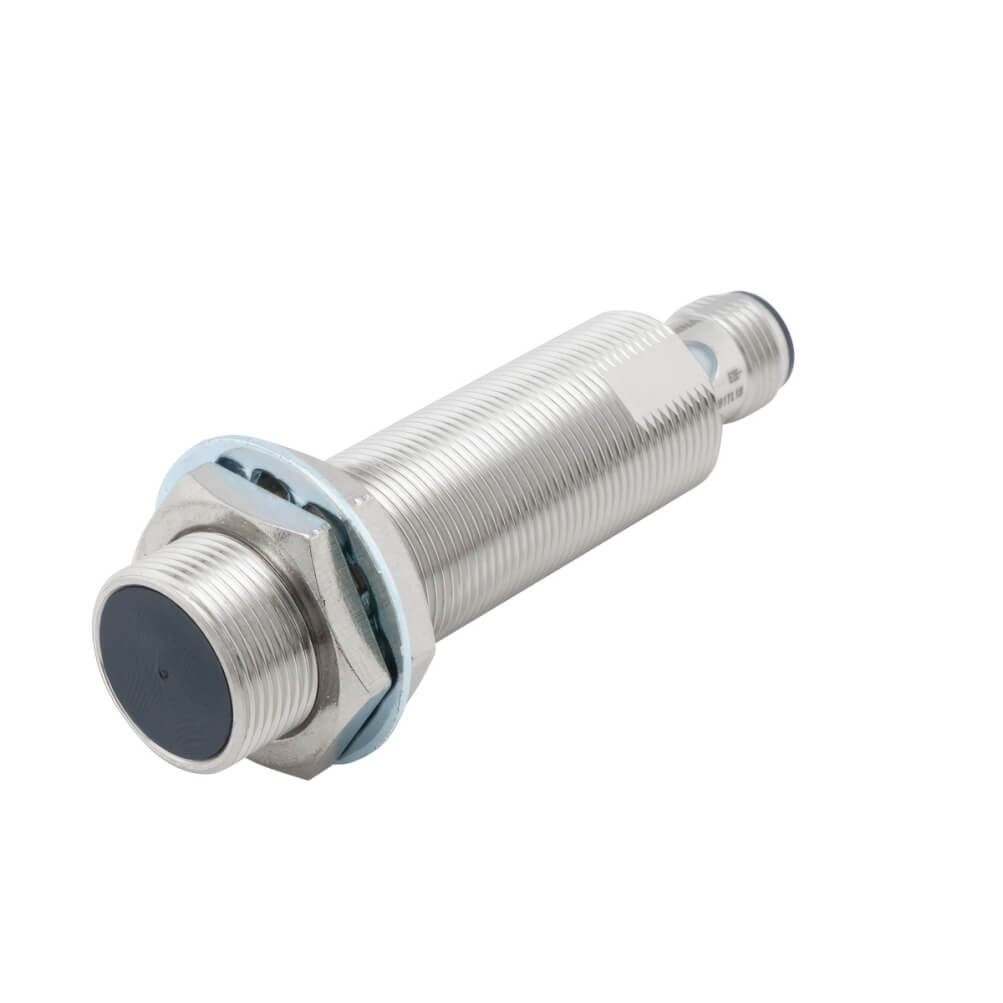

Omron E2E-X5C2L18-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Diameter | M18 |
| Mounting Type | Flush Shielded |
| Sensing Distance | 5 mm |
| Output Type | NPN Open Collector |
| Operation Mode | Normally Closed (NC) |
| Supply Voltage | 10 to 30 VDC |
| Connection | M12 Connector |
| Response Frequency | 600 Hz |
| Protection Rating | IP67 / IP69K |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Nickel-Plated Brass |
The Omron E2E-X5C2L18-M1 Inductive Proximity Sensor is engineered for dependable detection of metallic objects in automated industrial systems. Its compact M18 housing, standardized M12 connector, and shielded sensing structure make it suitable for equipment requiring consistent proximity detection in demanding environments.
Omron E2E-X5C2L18-M1 Technical Description
The sensor employs inductive sensing technology to detect conductive metal targets without physical contact. A 5 mm sensing distance allows precise position monitoring while maintaining installation flexibility.
The Omron E2E-X5C2L18-M1 Inductive Proximity Sensor features an NPN normally closed output configuration and operates from a 10 to 30 VDC supply. The integrated M12 connector supports fast installation and simplified maintenance procedures.
Omron E2E-X5C2L18-M1 Working Principle
An oscillator circuit creates a high-frequency electromagnetic field at the sensor face. When a metal object enters this field, induced currents alter the oscillator characteristics. The internal processing circuitry recognizes this change and switches the output accordingly.
Applications
- Robotic work cells
- Production line automation
- Industrial conveyors
- Machine tools
- Assembly equipment
- Material handling systems
- Automated transport units
Omron E2E-X5C2L18-M1 Industrial Benefits
- Non-contact operation
- Reduced mechanical wear
- Fast switching performance
- Connector-based maintenance
- Stable detection accuracy
- Protection against water and dust ingress
Frequently Asked Questions
What objects can this sensor detect?
It is designed primarily for metallic targets.
What is the sensing distance?
The nominal sensing distance is 5 mm.
What connector is used?
An industrial M12 connector is provided.
Can it operate in wet environments?
Yes, IP67 and IP69K ratings support demanding conditions.
What output type is available?
NPN open collector, normally closed.
What voltage is required?
10 to 30 VDC.
Where is the Omron E2E-X5C2L18-M1 Inductive Proximity Sensor used?
It is commonly used in automation, robotics, and machinery applications.
How does the Omron E2E-X5C2L18-M1 Inductive Proximity Sensor work?
It detects metallic objects through changes in an electromagnetic field.
