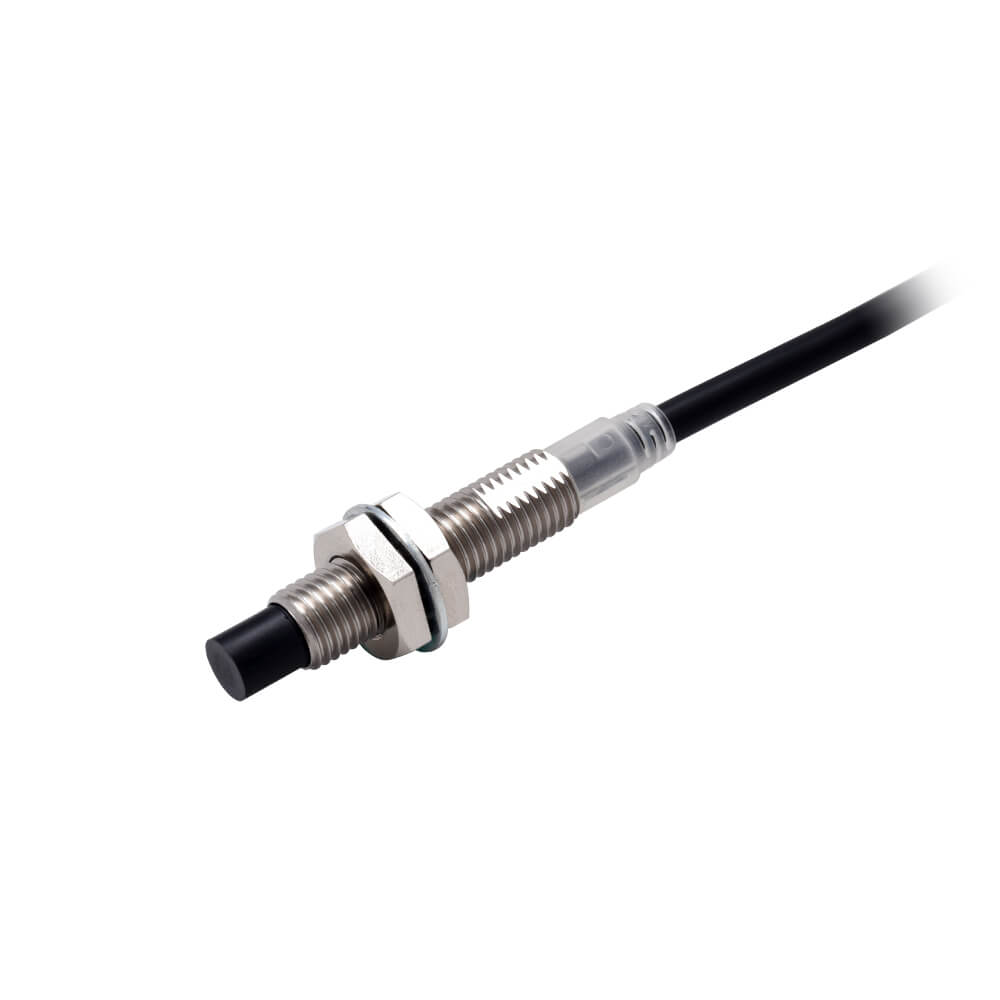

Omron E2E-X4MC2L8 2M Inductive Proximity Sensor

Reliable object detection is a critical requirement in industrial automation systems where process continuity depends on accurate position monitoring. The Omron E2E-X4MC2L8 2M Inductive Proximity Sensor is developed for non-contact detection of metallic targets in machinery, production equipment, and automated handling systems. Its integrated 2-meter cable allows direct installation without the need for separate connector assemblies, simplifying wiring in many industrial environments.

Technical Description

The Omron E2E-X4MC2L8 2M Inductive Proximity Sensor is part of the E2E NEXT family, a series engineered for enhanced environmental durability and dependable sensing performance. This model provides a 4 mm sensing distance and incorporates an NPN normally open output suitable for a wide range of PLC and automation control systems.

The compact M8 cylindrical housing is manufactured from SUS303 stainless steel, offering resistance to mechanical stress and harsh environmental conditions. The sensor is designed for industrial installations where reliable metallic object detection is required over extended operating periods.

Working Principle

The sensor operates using an electromagnetic induction principle. An internal oscillator generates a high-frequency electromagnetic field at the sensing face. When a conductive metallic object enters this field, eddy currents are generated inside the target.

These currents absorb energy from the oscillation circuit, resulting in a detectable change in amplitude. The internal circuitry evaluates this variation and activates the output once the specified sensing threshold is reached. This method allows accurate detection without physical contact between the sensor and the target object.

Areas of Application

The Omron E2E-X4MC2L8 2M Inductive Proximity Sensor is suitable for numerous automation and machinery applications.

• Conveyor positioning systems
• Automated assembly equipment
• Industrial robotics
• Packaging machines
• Machine tool monitoring
• Transfer and indexing mechanisms
• Material handling equipment
• Automated storage systems

The cable-connected design is particularly useful in installations where connector access is limited or where direct cable routing is preferred.

Industrial Applications

Manufacturing facilities often use inductive sensors to monitor moving machine elements and verify the presence of metallic workpieces. In automated assembly lines, the sensor can confirm component positioning before subsequent operations are initiated.

Within packaging machinery, the sensor may detect actuator positions, guide rail locations, or machine component movements. Warehousing and logistics systems can utilize the device to monitor shuttle positions, transfer equipment, and automated transport mechanisms.

Advantages

• Compact M8 housing for restricted installation spaces
• Integrated 2-meter cable connection
• 4 mm sensing distance
• NPN normally open output
• High environmental protection ratings
• Stainless-steel construction
• Wide operating temperature range
• Non-contact sensing minimizes wear

Industry-Specific Use Cases

Automated Warehousing

The sensor can monitor the position of transfer shuttles and storage retrieval systems.

Machine Building

Equipment manufacturers frequently integrate inductive sensors into moving assemblies and safety-related positioning functions.

Packaging Production

Packaging equipment can use the sensor to verify mechanical positions during product handling cycles.

Metalworking Operations

The sensor may be used to confirm part presence before machining, drilling, or inspection processes begin.

Considerations When Selecting the Sensor

Several factors should be evaluated when selecting an inductive proximity sensor, including target material properties, mounting clearances, sensing distance requirements, environmental conditions, and electrical compatibility.

The Omron E2E-X4MC2L8 2M Inductive Proximity Sensor is particularly suitable for installations where direct cable wiring is preferred over connector-based connections. Proper installation distances should be maintained to achieve consistent sensing performance.

Engineers seeking additional sensing technologies can review Omron sensor products for related automation solutions.

The Omron E2E-X4MC2L8 2M Inductive Proximity Sensor combines compact dimensions, environmental protection, and reliable non-contact sensing capabilities. These characteristics make the Omron E2E-X4MC2L8 2M Inductive Proximity Sensor suitable for industrial systems that require dependable metal detection and position monitoring.

Frequently Asked Questions

What is the sensing distance of this sensor?

The rated sensing distance is 4 mm.

What output type does the sensor provide?

It features an NPN normally open output.

What is the cable length?

The sensor is supplied with a 2-meter integrated cable.

Can it operate in wet environments?

Yes. The IP67 and IP69K protection ratings support operation in demanding industrial environments.

What supply voltage is required?

The sensor operates from 10 to 30 VDC.

What materials can it detect?

It is designed to detect conductive metallic targets.

Is the housing corrosion resistant?

The stainless-steel housing offers resistance to many industrial environmental conditions.

Can the sensor be used in cold environments?

Yes. It supports operation down to -40°C.

What industries commonly use this sensor?

Packaging, logistics, machinery manufacturing, automotive production, and metalworking industries commonly use inductive sensors.

Why use a cable-connected sensor?

Integrated cable designs can simplify installation and eliminate the need for separate connector assemblies.
