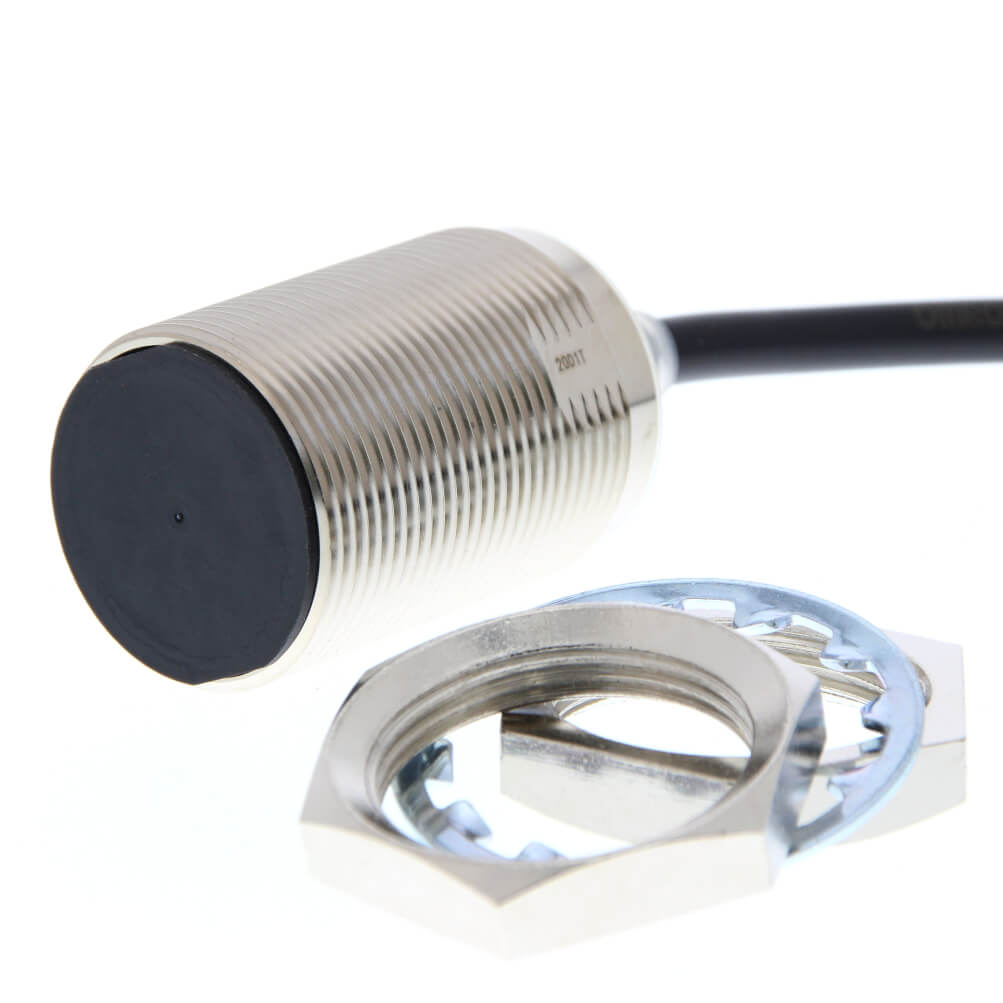

h1>Omron E2E-X22C230 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M30 |
| Sensing Distance | 22 mm |
| Mounting Type | Quasi-flush |
| Output Type | PNP |
| Operation Mode | Normally Open (NO) |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | 2 m PVC Cable |
| Response Frequency | 200 Hz |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP69K |
| Operating Temperature | -25°C to +70°C |
| Overall Length | 80 mm |
| Thread Diameter | M30 |
Technical Description
Reliable object detection is essential in modern automation systems where production equipment must continuously monitor the position and presence of metallic components. The Omron E2E-X22C230 2M Inductive Proximity Sensor is engineered to perform this task through non-contact sensing technology while maintaining stable operation in demanding industrial environments.
Belonging to the E2E NEXT family, this sensor offers a 22 mm sensing distance and a PNP normally open output. The integrated 2-meter cable allows direct wiring into control panels, junction boxes, and machine control systems without requiring a separate connector assembly. Its rugged M30 nickel-plated brass housing is designed to withstand mechanical stress and environmental exposure commonly found in industrial facilities.
Working Principle
The Omron E2E-X22C230 2M Inductive Proximity Sensor generates a high-frequency electromagnetic field from its sensing face. When a metallic object enters the detection zone, eddy currents are produced within the target material. These currents alter the field characteristics, allowing the sensor electronics to identify the target and switch the output signal.
This sensing method eliminates physical contact with moving components and provides dependable detection regardless of surface color, transparency, or ambient lighting conditions.
Main Characteristics
- 22 mm sensing distance for extended detection capability
- PNP normally open switching output
- Integrated 2-meter cable connection
- M30 cylindrical housing design
- IP67 and IP69K environmental protection
- Nickel-plated brass construction for mechanical durability
- Suitable for industrial automation and machine control systems
- Stable performance across a wide operating temperature range
Application Areas
The Omron E2E-X22C230 2M Inductive Proximity Sensor can be integrated into a broad range of industrial processes requiring metallic target detection.
- Automated conveyor systems
- Packaging and labeling equipment
- Transfer and indexing mechanisms
- Metalworking machinery
- Automated storage systems
- Production line monitoring equipment
- Assembly automation stations
Industrial Applications
Warehouse Automation
Distribution facilities use inductive sensors to confirm the position of metallic carriers, transfer mechanisms, and automated handling equipment.
Food Processing Equipment
Machines containing metallic actuators and positioning assemblies can benefit from reliable non-contact monitoring while operating in washdown environments.
Metal Fabrication Facilities
Presses, feeders, and positioning systems frequently employ inductive sensors to verify workpiece movement and equipment status.
Packaging Production
Machine builders integrate the Omron E2E-X22C230 2M Inductive Proximity Sensor into packaging equipment to monitor moving metal machine elements and synchronized mechanical actions.
Advantages in Automation Systems
The Omron E2E-X22C230 2M Inductive Proximity Sensor provides a combination of extended sensing distance and robust environmental protection. Because there are no moving parts involved in the sensing process, wear-related issues are minimized. This characteristic contributes to consistent operation in systems that require continuous monitoring throughout extended production cycles.
The cable connection configuration can simplify installation in applications where connectors may not be preferred or where wiring is routed directly through machine frames and cable channels.
Selection Considerations
When selecting the Omron E2E-X22C230 2M Inductive Proximity Sensor, engineers should evaluate target dimensions, sensing distance requirements, controller input compatibility, and available installation space. The PNP output architecture should match the receiving control system specifications.
Mechanical mounting requirements should also be reviewed to ensure adequate clearance around the M30 housing and sensing surface.
Additional sensor families and related solutions can be explored through Omron sensor series.
Frequently Asked Questions
What output type does this sensor provide?
The sensor provides a PNP normally open output configuration.
What is the sensing distance?
The rated sensing distance is 22 mm.
Can the sensor detect aluminum and steel?
Yes. Inductive sensors detect conductive metallic materials, although sensing performance may vary depending on the target material.
What connection method is used?
The unit is supplied with a permanently attached 2-meter cable.
Is the sensor suitable for washdown environments?
Its IP67 and IP69K protection ratings support operation in environments exposed to water and cleaning processes.
Where is the Omron E2E-X22C230 2M Inductive Proximity Sensor commonly used?
It is widely used in conveyor systems, machinery, packaging equipment, and automated manufacturing lines.
Does ambient light affect detection?
No. Inductive sensing technology is not influenced by lighting conditions.
Can it be connected directly to a PLC?
Yes, provided the PLC input configuration is compatible with a PNP output signal.
What housing material is used?
The sensor uses a nickel-plated brass housing.
What maintenance is typically required?
Periodic inspection of mounting stability and cable condition is generally sufficient.
