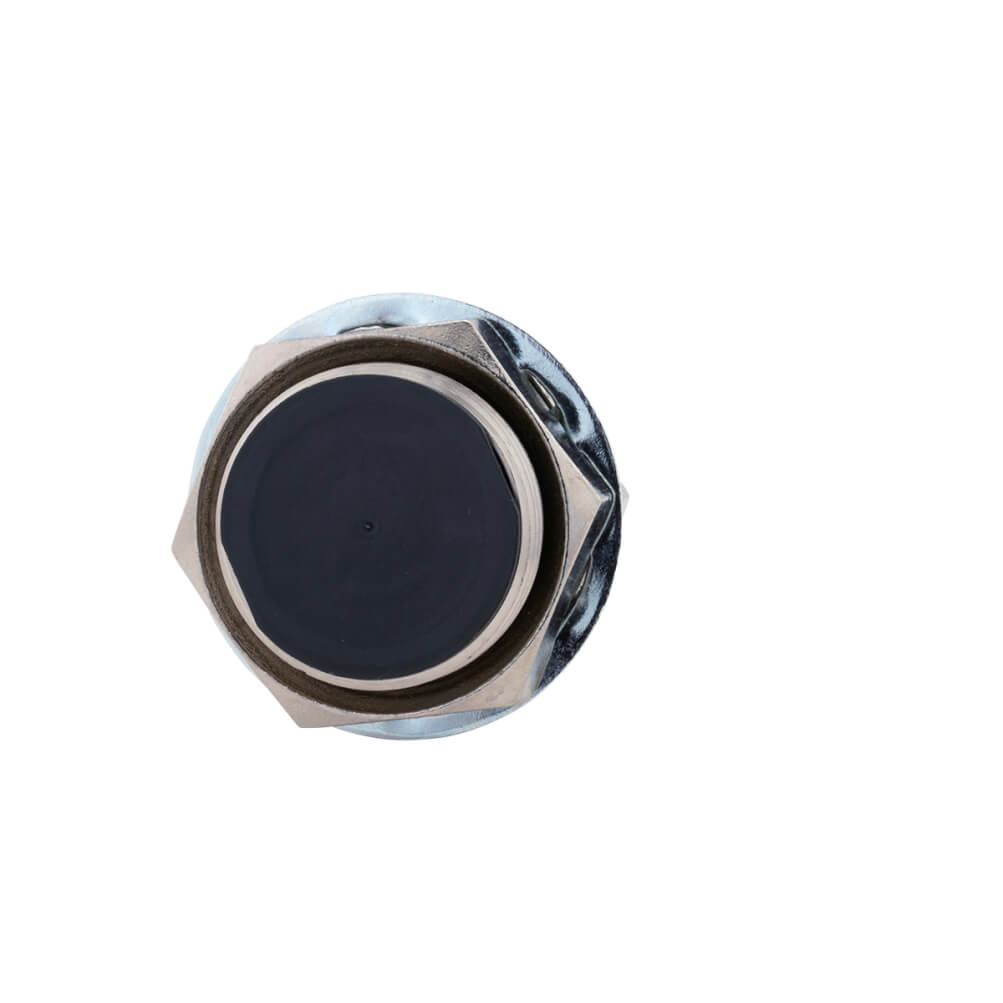

Omron E2E-X22B3D30-M1 Inductive Proximity Sensor

Industrial automation systems often require reliable detection of metallic objects without physical contact. The Omron E2E-X22B3D30-M1 Inductive Proximity Sensor is engineered for this purpose, offering stable sensing performance in environments where mechanical switches may be exposed to wear, contamination, or vibration. Its robust M30 housing and extended sensing distance make it suitable for a broad range of machine automation tasks.

Technical Description

The Omron E2E-X22B3D30-M1 Inductive Proximity Sensor belongs to the E2E NEXT series and provides a nominal sensing distance of 22 mm. The sensor incorporates advanced detection circuitry designed to maintain stable operation under varying environmental conditions.

Its NPN normally open output allows integration with many industrial control architectures. The sensor is powered by a 10 to 30 VDC supply and connects through a standard M12 connector, simplifying installation and maintenance procedures.

The Omron E2E-X22B3D30-M1 Inductive Proximity Sensor is commonly deployed alongside PLCs, remote I/O stations, industrial controllers, safety monitoring systems, and automated machine equipment.

Working Principle

The sensing face of the device generates an electromagnetic field through an internal oscillator circuit. When a metallic object enters this field, eddy currents are induced within the target material. These currents influence the oscillation amplitude and frequency characteristics.

The sensor continuously evaluates these changes and activates its output once the switching threshold is reached. Because the process relies on electromagnetic interaction rather than physical contact, the sensor can operate for long periods without mechanical degradation.

Typical Areas of Use

• Machine position monitoring
• Metal part detection
• Conveyor automation
• Automated production lines
• Industrial assembly stations
• Material transfer systems
• Robotic manufacturing cells
• Packaging machinery

Industrial Applications

Assembly Automation

Production equipment often requires verification of component presence before initiating assembly sequences. The sensor can detect metallic workpieces and fixtures used throughout automated assembly operations.

Machine Building

Machine manufacturers use proximity sensors to monitor actuator positions, tooling locations, and moving machine components. The long sensing range provides flexibility when designing machine layouts.

Warehouse Automation

Automated storage systems employ proximity sensing technology for carrier tracking, lift positioning, and shuttle movement verification. Non-contact operation reduces maintenance requirements.

Food and Beverage Equipment

Where equipment is regularly cleaned, IP67 and IP69K protection ratings support reliable operation under demanding washdown conditions.

Advantages

• 22 mm sensing distance for flexible installation
• NPN normally open output configuration
• Compact M30 threaded design
• High resistance to moisture and dust
• IP67 and IP69K environmental protection
• Connector-based wiring for easier replacement
• Stable detection of metallic objects
• Durable nickel-plated brass construction

For additional detection technologies and automation components, engineers can review Omron sensor series suitable for industrial sensing applications.

Considerations Before Selecting a Sensor

• Target material characteristics
• Required sensing distance
• Electrical interface compatibility
• Control system input requirements
• Environmental protection needs
• Mounting constraints
• Connector or cable preferences
• Required switching frequency

Sector-Based Usage Examples

• Detecting metal carriers on automated conveyor systems
• Monitoring fixture positions in production machinery
• Verifying metal pallet presence in logistics facilities
• Position confirmation in robotic transfer systems
• Monitoring moving machine elements in processing equipment
• Detecting tooling positions in automated manufacturing cells

The Omron E2E-X22B3D30-M1 Inductive Proximity Sensor is particularly suitable for applications where repeatable metal detection and environmental durability are essential. The Omron E2E-X22B3D30-M1 Inductive Proximity Sensor supports reliable automation processes through non-contact sensing technology.

Frequently Asked Questions

1. What does the Omron E2E-X22B3D30-M1 Inductive Proximity Sensor detect?

The sensor is designed to detect metallic objects without physical contact.

2. What is the nominal sensing distance?

The sensing distance is 22 mm.

3. Which output type does the sensor provide?

It features an NPN normally open output.

4. What voltage range is supported?

The operating voltage range is 10 to 30 VDC.

5. Which protection ratings are available?

The sensor is rated IP67 and IP69K.

6. How is the sensor connected to the control system?

An M12 connector is used for electrical connection.

7. Can the sensor be installed near moving machinery?

Yes. Its non-contact operating principle makes it suitable for monitoring moving machine components.

8. Is the sensor suitable for industrial automation systems?

Yes. It is widely used in machine automation, material handling, robotics, and manufacturing applications.
