Omron E2E-X22B3DL30-M1 Inductive Proximity Sensor

Accurate metal detection is a fundamental requirement in modern industrial systems where equipment status, material flow, and machine positioning must be continuously monitored. The Omron E2E-X22B3DL30-M1 Inductive Proximity Sensor is designed to perform these tasks using non-contact sensing technology, allowing reliable operation in environments where conventional mechanical switches may be exposed to vibration, contamination, or repetitive movement.

Technical Description

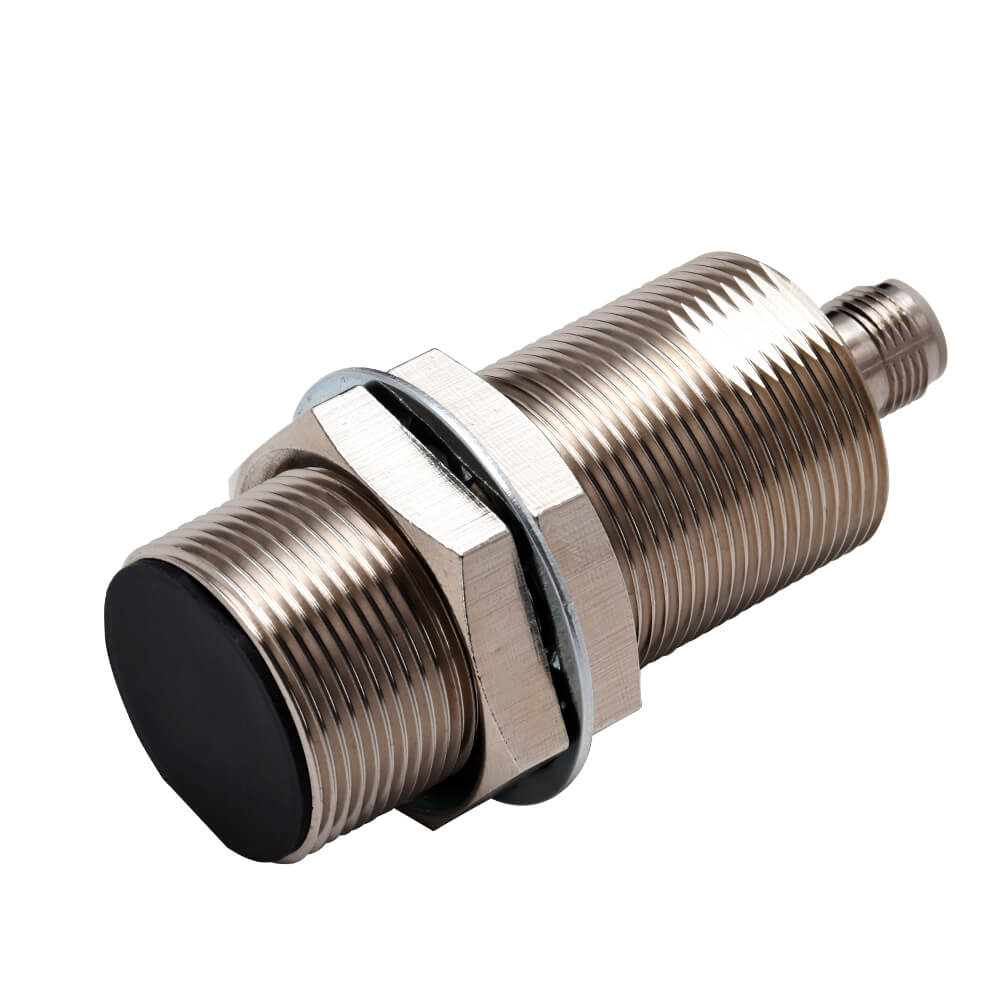

The Omron E2E-X22B3DL30-M1 Inductive Proximity Sensor is part of Omron’s E2E NEXT product family. It features a 22 mm sensing distance and an M30 threaded housing suitable for installation on industrial equipment, conveyors, production machinery, and automated systems.

This model utilizes an NPN normally closed output configuration and operates from a 10 to 30 VDC power supply. The integrated M12 connector simplifies electrical installation while supporting quick replacement during maintenance procedures.

The nickel-plated brass housing provides durability in demanding industrial environments and supports long-term operation in applications exposed to oils, moisture, dust, and mechanical stress.

How the Sensor Works

The sensor generates a high-frequency electromagnetic field at its sensing face. When a conductive metal target enters the sensing zone, eddy currents are created within the target material. These currents absorb energy from the oscillator circuit inside the sensor.

The internal electronics monitor this change and switch the output when the detection threshold is reached. This process enables precise metallic object detection without physical contact between the sensor and the target.

Because there are no moving mechanical parts involved in the sensing process, maintenance requirements are reduced and consistent performance can be achieved over extended operating periods.

Primary Applications

• Position detection in automated machinery
• Metal object presence verification
• Conveyor system monitoring
• Actuator position sensing
• Machine tool automation
• Production line sequencing
• Industrial handling equipment
• Automated storage systems

Industrial Applications

Automated Manufacturing Lines

Production equipment often relies on accurate position feedback from moving mechanical assemblies. The sensor can monitor fixtures, transfer mechanisms, and machine positions throughout manufacturing processes.

Robotics and Motion Control

Robotic cells use proximity sensors to confirm component presence and verify mechanical positions before executing programmed movement sequences.

Packaging Equipment

Packaging systems frequently contain metallic guides, actuators, and tooling components that require reliable detection. Inductive sensing helps maintain process consistency and equipment synchronization.

Industrial Logistics

Automated transport systems and warehouse equipment can use the sensor to detect carrier positions, shuttle locations, and metal transport structures within material flow systems.

Advantages

• 22 mm sensing distance
• NPN normally closed output configuration
• Durable nickel-plated brass housing
• IP67 and IP69K protection ratings
• Suitable for harsh industrial environments
• Connector-based installation with M12 interface
• Non-contact sensing technology
• Stable operation in automation systems

Additional industrial sensing technologies can be explored through Omron sensor products designed for factory automation and machine control applications.

Important Selection Considerations

• Target material composition
• Required sensing distance
• Available mounting space
• Electrical interface requirements
• Environmental protection requirements
• Machine operating conditions
• Maintenance accessibility
• Control system compatibility

Industry Usage Examples

• Monitoring metal carriers on conveyor systems
• Detecting tooling positions in CNC equipment
• Confirming workpiece presence before robotic handling
• Verifying machine component positions in assembly systems
• Tracking metal pallets in logistics centers
• Monitoring actuator movement in industrial machinery

The Omron E2E-X22B3DL30-M1 Inductive Proximity Sensor provides a practical solution for metallic object detection in automated environments. The Omron E2E-X22B3DL30-M1 Inductive Proximity Sensor can be integrated into machine control systems where dependable sensing and environmental durability are required.

Frequently Asked Questions

1. What type of objects can this sensor detect?

The sensor is designed to detect metallic targets through inductive sensing technology.

2. What is the nominal sensing distance?

The sensor offers a sensing distance of 22 mm.

3. Which output configuration is used?

The model provides an NPN normally closed output.

4. What supply voltage is required?

The operating voltage range is 10 to 30 VDC.

5. What environmental protection ratings are available?

The sensor is rated IP67 and IP69K.

6. How is electrical connection achieved?

An M12 connector is used for connection to the control system.

7. Can the sensor operate in demanding industrial environments?

Yes. Its housing construction and protection ratings support use in harsh industrial conditions.

8. Is the sensor suitable for automated production systems?

Yes. It is commonly used in manufacturing, robotics, logistics, and machine automation applications.
