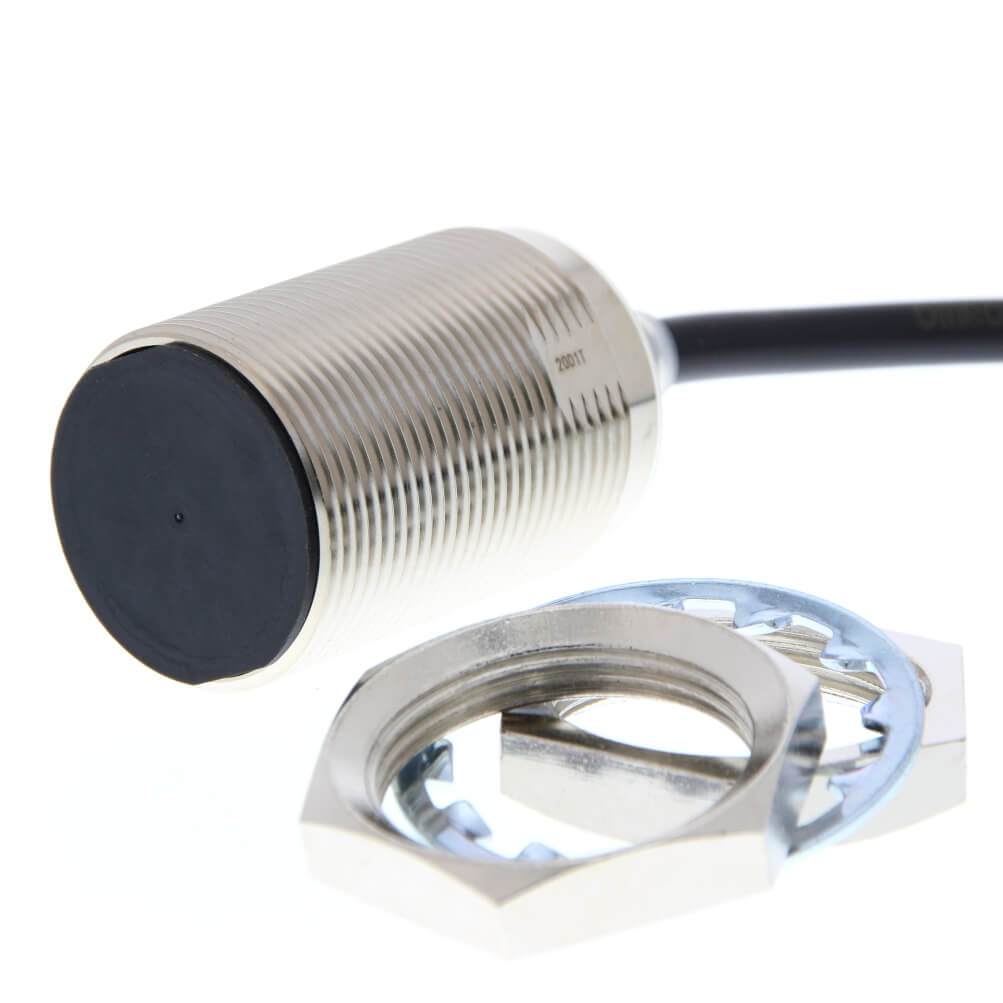

Omron E2E-X22B230 10M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M30 |
| Sensing Distance | 22 mm |
| Mounting Type | Quasi-flush (Shielded) |
| Output Type | PNP |
| Operation Mode | Normally Closed (NC) |
| Connection Method | 10 m PVC Oil-Resistant Cable |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 200 Hz |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Operating Temperature | -25°C to +70°C |
| Sensor Length | 60.3 mm |
The Omron E2E-X22B230 10M Inductive Proximity Sensor is designed for non-contact detection of metallic targets in industrial automation systems. As part of the E2E NEXT series, this model combines extended sensing distance, robust environmental protection, and a compact M30 threaded housing suitable for demanding operating conditions.
Technical Description
The Omron E2E-X22B230 10M Inductive Proximity Sensor utilizes electromagnetic field generation to detect the presence of ferrous and conductive metal objects. The sensor features a shielded construction with a 22 mm sensing distance, allowing installation in applications where accurate target detection and controlled sensing zones are required.
The nickel-plated brass housing provides mechanical durability while the oil-resistant PVC cable supports installation in machinery, production equipment, and automated handling systems.
Operating Principle
An internal oscillator generates a high-frequency electromagnetic field at the sensing face. When a metallic object enters the sensing zone, eddy currents are induced within the target material. These currents alter the oscillator amplitude, enabling the sensor electronics to switch the PNP normally closed output.
This operating method eliminates mechanical contact, reducing wear and enabling reliable operation in high-cycle applications.
Key Features and Functional Characteristics
- 22 mm sensing distance for metal target detection
- M30 threaded cylindrical housing
- Shielded sensing design for controlled detection areas
- PNP normally closed output configuration
- 10 m prewired cable connection
- Oil-resistant PVC cable construction
- IP67, IP67G, and IP69K environmental protection
- Suitable for operation from -25°C to +70°C
- Nickel-plated brass housing for industrial environments
Typical Applications
The Omron E2E-X22B230 10M Inductive Proximity Sensor is commonly used in automated equipment requiring reliable metal object detection without physical contact.
- Conveyor position monitoring
- Packaging machinery
- Automated assembly systems
- Machine tool position feedback
- Material transfer equipment
- Pallet handling systems
- Metal component presence detection
- Industrial production lines
Additional information about related sensing solutions can be found through Omron sensor products.
Industrial Applications
Automotive Manufacturing
The sensor can monitor fixture positions, detect metallic workpieces, and verify machine states throughout vehicle assembly processes.
Food and Beverage Equipment
Its high protection ratings allow deployment in processing and packaging equipment exposed to washdown procedures.
Material Handling Systems
The Omron E2E-X22B230 10M Inductive Proximity Sensor supports conveyor control, transfer stations, and automated storage systems where reliable metal target detection is required.
Metal Processing Facilities
The sensor is suitable for monitoring moving components, tooling positions, and production sequences involving conductive materials.
Advantages
- Non-contact operation minimizes mechanical wear
- Long cable length simplifies installation over larger distances
- High ingress protection for harsh environments
- Stable detection characteristics
- Compact short-body housing design
- Resistance to oil exposure and industrial contaminants
- Suitable for continuous industrial operation
Selection Considerations
When selecting the Omron E2E-X22B230 10M Inductive Proximity Sensor, engineers should verify the required sensing distance, mounting arrangement, output logic, available installation space, cable routing requirements, and environmental conditions.
The shielded sensing structure helps maintain predictable detection performance when the sensor is mounted close to metallic machine structures.
Frequently Asked Questions
What type of sensor is the Omron E2E-X22B230 10M Inductive Proximity Sensor?
It is a shielded inductive proximity sensor designed for non-contact metal detection.
What is the sensing distance?
The rated sensing distance is 22 mm.
What output configuration does it use?
The sensor provides a PNP normally closed output.
What supply voltage is required?
The operating voltage range is 10 to 30 VDC.
Is the sensor suitable for washdown environments?
Yes. It supports IP67, IP67G, and IP69K protection ratings.
What cable length is provided?
This version is supplied with a 10-meter oil-resistant PVC cable.
Can it detect non-metallic materials?
No. The sensing principle is designed for metallic targets.
Where is the Omron E2E-X22B230 10M Inductive Proximity Sensor commonly installed?
It is frequently installed in conveyors, machinery, automated production lines, packaging equipment, and material handling systems.
