Omron E2E-X22B1T30-M1TJ 0.3M Inductive Proximity Sensor

Technical Overview

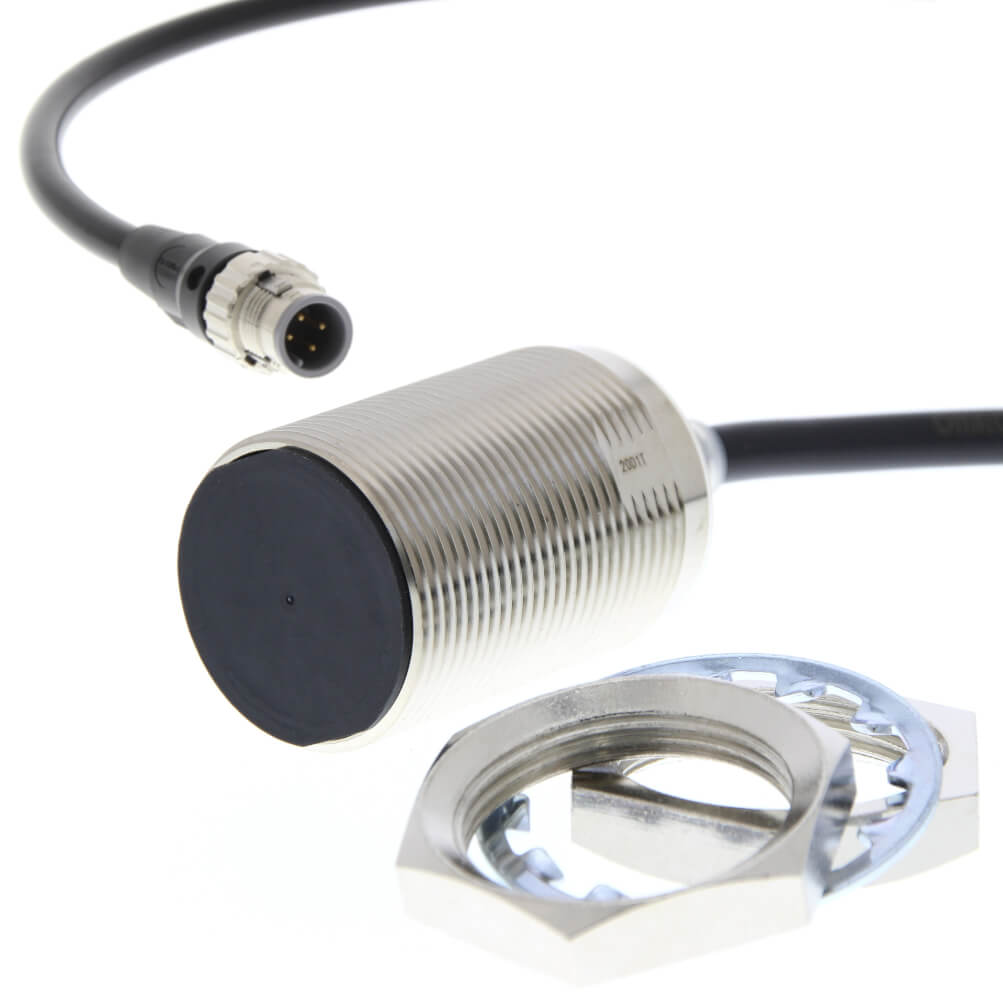

The Omron E2E-X22B1T30-M1TJ 0.3M Inductive Proximity Sensor is part of the E2E NEXT family developed for industrial metal detection applications. Designed with a robust M30 nickel-plated brass housing, this sensor combines a 22 mm sensing distance with IO-Link communication capabilities. The compact cable-integrated M12 Smartclick connection simplifies installation while supporting modern diagnostic and monitoring functions.

The Omron E2E-X22B1T30-M1TJ 0.3M Inductive Proximity Sensor is intended for environments where reliable non-contact detection of metallic objects is required. Its shielded sensing design allows installation in machinery with limited mounting space while maintaining stable detection performance.

Working Principle

The sensor operates by generating a high-frequency electromagnetic field at its sensing face. When a conductive metal target enters this field, eddy currents are induced within the target material. These currents alter the oscillation characteristics of the sensor circuit.

The internal electronics continuously monitor these changes and switch the PNP normally open output when the target reaches the specified sensing range. Through IO-Link communication, additional operating data can be transmitted to higher-level control systems, enabling advanced diagnostics and process visibility.

Key Technical Characteristics

IO-Link Integration

The integrated IO-Link COM3 interface enables bidirectional communication with compatible IO-Link masters. This functionality supports parameterization, condition monitoring, device identification, and maintenance planning within digital manufacturing environments.

Industrial Protection

With IP67, IP67G, and IP69K ratings, the sensor can withstand demanding industrial conditions involving dust, moisture, washdown procedures, and exposure to industrial contaminants.

Mechanical Construction

The nickel-plated brass housing provides mechanical durability while maintaining resistance against corrosion and industrial wear. The oil-resistant PVC cable supports installations near lubricated equipment and automated machinery.

Applications and Usage Areas

This sensor is suitable for a wide range of automation tasks involving metal object detection, positioning, and presence verification.

• Automated assembly stations
• Robotic handling systems
• Automotive body manufacturing
• Machine tool equipment
• Material transfer conveyors
• Packaging machinery
• Metal component verification systems
• Automated storage and retrieval systems

For additional industrial sensing solutions, explore Omron sensor product ranges.

Industrial Applications

In automotive manufacturing, the sensor can verify the presence of metal brackets before robotic welding operations. In packaging lines, it can monitor metal carrier positions to synchronize machine movements. Within machine tools, it can confirm fixture positions and detect metal workpiece placement before machining cycles begin.

Warehousing and logistics facilities often use the sensor to monitor transfer mechanisms, lift systems, and shuttle positioning equipment where reliable metallic target detection is required.

Advantages

• 22 mm sensing distance for larger detection zones
• Integrated IO-Link communication capabilities
• Compact M30 short-body construction
• Durable nickel-plated brass housing
• Oil-resistant cable design
• High ingress protection ratings
• Suitable for predictive maintenance architectures
• Reliable non-contact metal detection

Omron E2E-X22B1T30-M1TJ 0.3M Industry-Specific Examples

Automotive Production

Used for verifying metal panel positioning before automated fastening operations.

Food Packaging Equipment

Monitors stainless-steel machine components and transfer mechanisms during packaging cycles.

Metal Processing Facilities

Detects workpiece arrival and positioning before forming, cutting, or machining operations.

Robotic Cells

Provides confirmation signals for gripper positions and fixture alignment systems.

Selection Considerations

When selecting an inductive proximity sensor, engineers should evaluate sensing distance requirements, mounting configuration, communication protocol compatibility, environmental conditions, and connection style. The availability of IO-Link diagnostics may be particularly important in facilities implementing Industry 4.0 monitoring strategies.

The Omron E2E-X22B1T30-M1TJ 0.3M Inductive Proximity Sensor is particularly suitable where a shielded M30 design, 22 mm sensing range, and advanced communication capabilities are required within a compact installation footprint.

Omron E2E-X22B1T30-M1TJ 0.3M Frequently Asked Questions

1. What type of objects can this sensor detect?

It is designed primarily for detecting metallic objects through inductive sensing technology.

2. What is the nominal sensing distance?

The sensor provides a nominal sensing distance of 22 mm.

3. Does the device support IO-Link communication?

Yes, it supports IO-Link COM3 communication at 230.4 kbps.

4. What output configuration does it use?

It features a PNP normally open (NO) output configuration.

5. Is it suitable for washdown environments?

Yes, the IP69K rating supports use in demanding washdown applications.

6. What is the housing material?

The housing is manufactured from nickel-plated brass.

7. Can it be used in robotic automation systems?

Yes, it is commonly used for positioning, presence detection, and machine status verification in robotic systems.

8. What connection method is provided?

The sensor uses an M12 pigtail Smartclick connector with a 0.3-meter oil-resistant cable.
