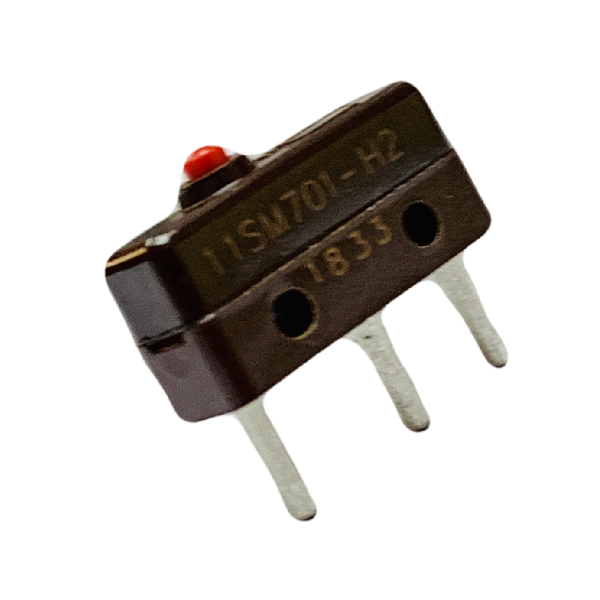

Honeywell 11SM701-H2 Basic Switch Details
The 11SM701-H2 basic switch is a compact SM Series electromechanical switch designed for applications where precise contact change and installation efficiency both matter. In many engineering environments, the Honeywell 11SM701-H2 basic switch is evaluated not only for electrical rating, but also for its PCB-oriented connection style and consistent pin plunger actuation. That makes the 11SM701-H2 electromechanical switch especially relevant in tightly integrated control assemblies and compact OEM hardware.
Technical Highlights of the Honeywell 11SM701-H2 Basic Switch
The Honeywell 11SM701-H2 basic switch is commonly associated with an SPDT configuration and a 5 A at 30 VDC class rating, while listings also connect the wider series to 250 VAC switching capability depending on variant context. This model uses a pin plunger actuator and is known for a low operating force around 0.55 N, which supports light and controlled mechanical triggering.
What makes the 11SM701-H2 basic switch particularly useful is its PC pin termination style. For designers building boards or board-adjacent assemblies, that detail can simplify integration and help maintain clean, repeatable wiring layouts. Instead of treating the switch as a generic replacement part, many engineers assess it as a purposeful fit for compact electromechanical architecture.
Where the 11SM701-H2 Electromechanical Switch Is Commonly Used
The Honeywell 11SM701-H2 basic switch can be relevant in industrial controls, compact instrumentation, test systems, access devices, and position-sensing mechanisms. Because it supports snap-action operation with a defined actuation point, it can help reduce ambiguity in systems where a clean change of state is necessary for safety, feedback, or sequencing logic.
Another reason this Honeywell basic switch remains technically interesting is that engineers often need board-compatible switch solutions without moving to more complex sensor arrangements. In that context, the 11SM701-H2 offers a direct and proven electromechanical option.
Why Engineers Look Up 11SM701-H2 Basic Switch Information
Searches for Honeywell 11SM701-H2 basic switch, Honeywell 11SM701-H2 switch datasheet, and Honeywell 11SM701-H2 electromechanical switch are often driven by replacement planning, PCB layout considerations, or actuator compatibility checks. Buyers and engineers want to verify whether the switch can maintain the expected mechanical feel and electrical response in an existing product or a new build.
For more information about Honeywell, it is useful to compare related SM Series variants when selecting between PCB pins, turret terminals, or other connection formats.
FAQ About the Honeywell 11SM701-H2 Basic Switch
What is the main advantage of the Honeywell 11SM701-H2 basic switch?
Its main advantage is the combination of compact snap-action performance with PC pin termination, which can be helpful in board-oriented or tightly packaged electromechanical systems.
Does the Honeywell 11SM701-H2 use a pin plunger actuator?
Yes. The switch is associated with a pin plunger design, making it suitable for direct mechanical triggering where precise and repeatable contact transfer is required.
Why is operating force important for the Honeywell 11SM701-H2?
Operating force affects how easily a moving part can actuate the switch. A lower actuation force can be beneficial in compact mechanisms, lighter linkages, and designs where mechanical load must be controlled carefully.
Who typically searches for the Honeywell 11SM701-H2 electromechanical switch?
It is commonly searched by design engineers, sourcing specialists, maintenance teams, and technicians who need to confirm fit, function, and electrical suitability before specifying or replacing a switch.
