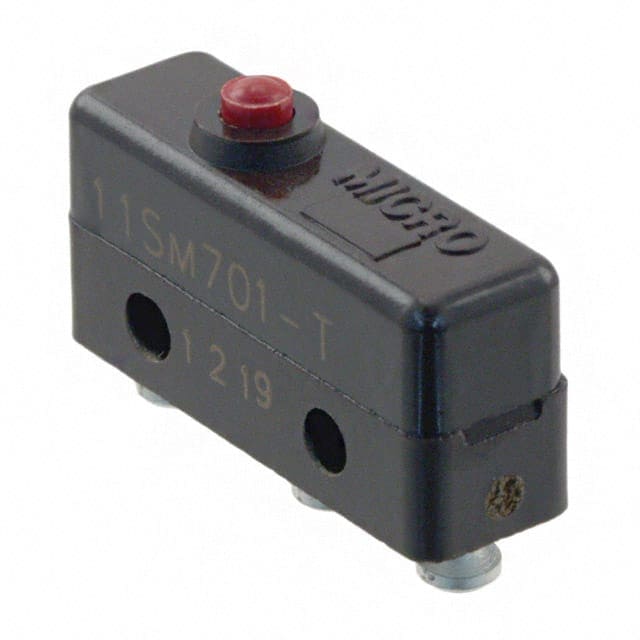

Honeywell 11SM701-T Basic Switch Guide
The 11SM701-T basic switch is a compact snap-action component intended for applications that need dependable electromechanical response in limited installation space. As an SM Series product, the Honeywell 11SM701-T basic switch is often considered for industrial controls, machine subassemblies, and equipment that relies on clear mechanical actuation. When engineers look for a 11SM701-T electromechanical switch, they are usually focused on consistency, mounting practicality, and a familiar switching profile rather than promotional claims.
Technical Overview of the Honeywell 11SM701-T Basic Switch
The Honeywell 11SM701-T basic switch is typically described as an SPDT subminiature basic switch with a 4 A at 250 VAC rating and a 30 VDC class electrical profile. It uses a pin plunger actuator and is associated with an operating force around 0.56 N. One of its defining details is the single turret or wire-wrap style termination, which makes it relevant in applications where wiring method and installation access are important selection criteria.
This makes the Honeywell 11SM701-T basic switch a useful option when a design calls for a compact housing, a direct mechanical input point, and a termination format that supports structured point-to-point wiring or specific assembly practices.
Application Value of the Honeywell 11SM701-T Electromechanical Switch
The Honeywell 11SM701-T basic switch may be used in control panels, electromechanical devices, compact automation systems, instrumentation, and equipment that requires travel detection or position confirmation. In these environments, fast snap-action behavior can help provide a clear signal transition while reducing uncertainty at the switching point.
Its compact format also supports installations where space is constrained but switch reliability still matters. That is one reason searches for Honeywell 11SM701-T basic switch often come from technical users trying to match both performance and physical integration requirements.
Why 11SM701-T Remains Relevant in Technical Search
Queries such as Honeywell 11SM701-T switch datasheet, Honeywell 11SM701-T basic switch, and Honeywell 11SM701-T electromechanical switch usually reflect a need for specification confirmation. Users want to validate actuator format, termination style, rating, and suitability for a particular mechanical layout. That makes documentation clarity more important than generic product language.
For more information about Honeywell, comparing the 11SM701-T with nearby SM Series variants can help determine whether the chosen termination style best matches the assembly method.
FAQ About the 11SM701-T Basic Switch
What distinguishes the 11SM701-T basic switch from similar variants?
One of the main distinctions is its termination style. Engineers often evaluate it specifically because the wiring method needs to align with an existing harness, assembly process, or maintenance standard.
Is the 11SM701-T suitable for compact control systems?
Yes. Its subminiature format and snap-action design make it a strong candidate for compact control assemblies where precise electromechanical switching is required.
Why does actuator type matter on the 11SM701-T?
The pin plunger actuator defines how the switch interacts with moving mechanical parts. It affects trigger consistency, mounting approach, and the overall feel of the switching event within the mechanism.
What should engineers confirm before selecting a Honeywell 11SM701-T electromechanical switch?
They should confirm the contact arrangement, voltage and current ratings, actuation method, operating force, termination format, and compatibility with the equipment’s mechanical envelope.
