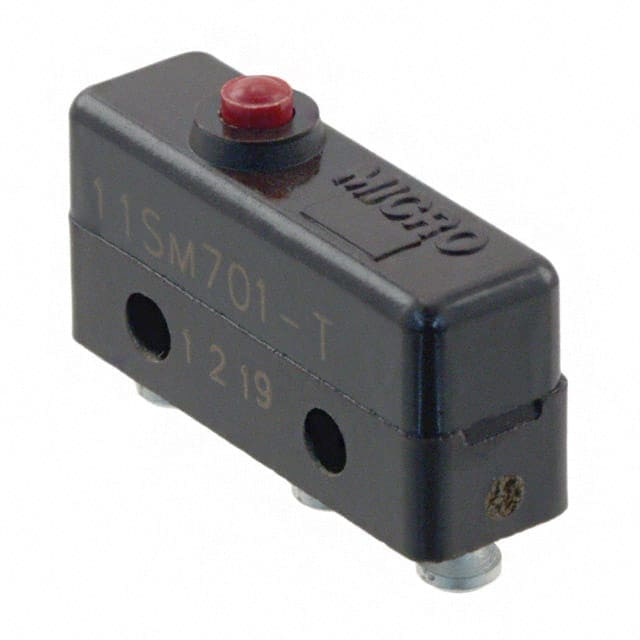

Honeywell 11SM701 Basic Switch Overview
The Honeywell 11SM701 basic switch is a compact electromechanical component developed for accurate snap-action performance in space-sensitive assemblies. As part of the SM Series, the Honeywell 11SM701 basic switch is relevant for designers who need a durable switching solution for industrial controls, appliances, instrumentation, and machine feedback systems. It combines compact construction with a practical electrical rating, which is one reason the Honeywell 11SM701 electromechanical switch continues to be searched and specified in design and replacement workflows.
Technical Profile of the Honeywell 11SM701 Basic Switch
The Honeywell 11SM701 basic switch is generally recognized as an SPDT subminiature snap-action switch. It is commonly associated with a 4 A rating at 250 VAC and a 30 VDC class specification, making it suitable for a wide range of low-voltage and control-level switching tasks. The model uses a pin plunger actuator, a format widely used when a direct mechanical input is needed for a fast, reliable change of contact state.
One of the most useful aspects of the Honeywell 11SM701 basic switch is its balance between small footprint and dependable electrical switching. In practice, that means it can support repeatable actuation inside compact equipment where installation room is limited but consistent performance still matters.
Typical Applications for the 11SM701 Electromechanical Switch
The 11SM701 basic switch is often relevant in equipment that depends on end-of-travel detection, door position monitoring, lever-triggered switching, or mechanical state confirmation. Examples include industrial machinery, test devices, commercial equipment, compact control modules, and electromechanical subsystems where dependable snap-action operation is preferred over softer switching behavior.
Because the switch belongs to a broader family of Honeywell basic switches, it is also useful in replacement projects where buyers need a proven footprint and established performance history rather than experimenting with unfamiliar alternatives.
What Makes 11SM701 a Practical Search Term
Searches for Honeywell 11SM701 basic switch, Honeywell 11SM701 switch datasheet, and Honeywell 11SM701 electromechanical switch are usually driven by technical comparison rather than casual browsing. Users typically want to confirm electrical ratings, actuator style, compatibility with existing assemblies, and whether the switch matches their mounting and wiring requirements.
For more information about Honeywell, reviewing the wider switch family can help clarify how the 11SM701 differs from variants with alternative terminations or similar mechanical formats.
FAQ About the Honeywell 11SM701 Basic Switch
What kind of switch is the Honeywell 11SM701?
It is a subminiature snap-action basic switch with SPDT functionality, designed for compact control and sensing tasks in electromechanical systems.
Why is the Honeywell 11SM701 basic switch used in compact equipment?
It offers a useful combination of controlled actuation, practical electrical capacity, and small physical size. That makes it well suited to assemblies where both space efficiency and switching accuracy are important.
Is the 11SM701 basic switch only for new designs?
No. It is also relevant for maintenance, service, and retrofit projects. Engineers often look for it when they need to match an existing switch family or preserve expected system behavior.
What should be checked before selecting a 11SM701 electromechanical switch?
Important checks include contact configuration, actuator style, mounting compatibility, voltage and current ratings, and whether the termination style matches the intended wiring method.
