Telemecanique ZCY54 Limit Switch Operating Head: Steel Square Rod Lever Explained

The Telemecanique ZCY54 limit switch operating head is a mechanical actuator accessory designed for selected Telemecanique XC Standard limit switch systems. It is used when a rod-style lever is required to detect movement, position, or travel in industrial machinery. Unlike compact roller levers, the ZCY54 uses a steel square rod format, making it suitable for applications where a longer reach or wider actuation path is needed.

This component is part of the ZCY series and is commonly listed as a limit switch lever or operating head accessory. It is designed for use with Telemecanique limit switch ranges including XCKT, XCKD, XCMD, and XCKP, depending on the configuration. Its practical value comes from the way it allows the switch to be actuated by a moving part that may not be positioned directly in front of the switch body.

Telemecanique ZCY54 Technical Characteristics

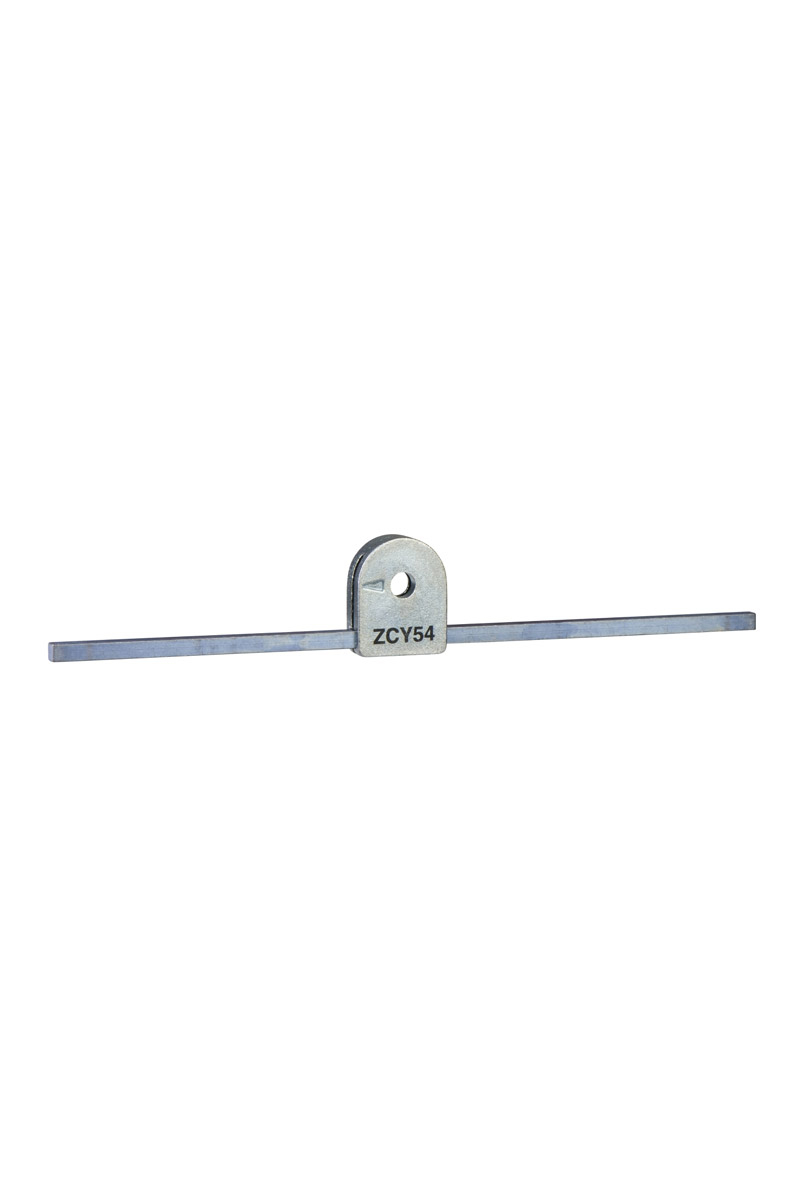

The ZCY54 is described as a steel square rod lever with a 3 mm rod diameter and a 125 mm length. This long, slim lever profile helps create a larger sensing reach compared with shorter operators. In industrial machines, that can be useful when the target is offset from the switch body or when the switch must be mounted in a protected position away from direct mechanical impact.

As a limit switch accessory, the ZCY54 does not perform electrical detection on its own. It must be combined with the correct limit switch body. The electrical switching function depends on the paired switch, while the ZCY54 provides the mechanical interface that transfers movement to the operating head. This makes correct product matching essential for dependable machine operation.

Why a Steel Square Rod Lever Matters

The steel rod design gives the lever a practical balance of reach and rigidity. In many industrial environments, actuators are exposed to repeated contact from moving machinery. A steel lever can help maintain mechanical form under normal operating loads, while the square rod geometry provides a defined contact profile. The 125 mm length also gives installers more flexibility when positioning the switch relative to the moving target.

The Telemecanique ZCY54 limit switch operating head is especially useful in equipment where the target path is broad or slightly variable. Examples include transfer systems, packaging machines, conveyors, lifting equipment, cam-operated mechanisms, and mechanical sequencing stations. In these environments, the rod lever can detect travel without requiring the switch body to be placed directly in the impact zone.

Application Guidance

When installing the ZCY54, the lever should be aligned so the moving target actuates it smoothly. The rod should not be struck with excessive force or used as a structural stop. A limit switch actuator is intended to signal movement, not absorb the full energy of a machine component. Where impact is expected, mechanical stops or guards should be designed separately.

Mounting position also affects service life. The lever should have enough free movement for reliable actuation and reset. If the rod is permanently loaded or bent during operation, switching accuracy can decline over time. For maintenance teams, routine inspection should include checking the rod for deformation, confirming proper movement, and verifying that the switch resets consistently after actuation.

For more Telemecanique details, visit Telemecanique automation components.

Telemecanique ZCY54 Frequently Asked Questions

What is the Telemecanique ZCY54 used for?

It is used as a limit switch operating head or lever accessory for compatible Telemecanique XC Standard limit switch assemblies.

What are the main physical features of the ZCY54?

The ZCY54 is a steel square rod lever with a 3 mm rod diameter and a 125 mm length, designed for mechanical actuation in industrial position detection.

Is the ZCY54 suitable for long-reach detection?

Yes. Its 125 mm lever length makes it useful where the target is not directly beside the switch body or where extra actuation reach is required.

Can the ZCY54 be used alone?

No. It is a mechanical accessory and must be installed with a compatible Telemecanique limit switch body to create a working detection device.

What should be checked before installation?

The switch series, operating head compatibility, target movement path, actuation angle, and available reset travel should all be checked before installation.

Is the ZCY54 designed for harsh industrial use?

It is intended for industrial limit switch assemblies, but final suitability depends on the complete switch configuration, mounting method, mechanical load, and environmental conditions.
