Telemecanique ZCY49 Limit Switch Lever: Technical Guide for Industrial Position Detection

The Telemecanique ZCY49 limit switch lever is an operating accessory designed for use with selected Telemecanique XC Standard limit switch bodies. In industrial automation, limit switch levers play a practical role: they translate mechanical movement into reliable switch actuation. The ZCY49 is especially relevant where a roller lever is needed to detect moving machine parts, passing objects, guards, cams, or mechanical travel points.

This part belongs to the ZCY limit switch lever family and is commonly associated with Telemecanique limit switches such as XCKT, XCKP, and XCKD models. Its operating style is based on rotary movement, making it suitable for applications where the actuator must be approached from a moving surface rather than pressed directly. The roller lever format helps reduce friction during contact and can support smoother mechanical engagement in repetitive-use environments.

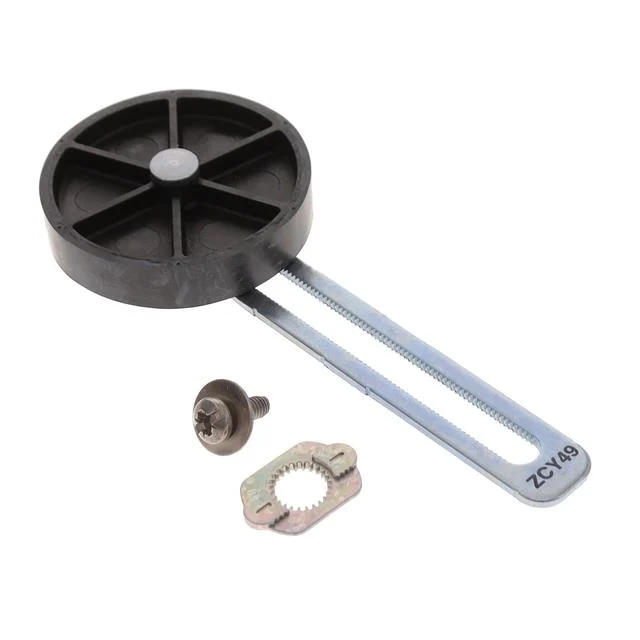

One of the key characteristics of the Telemecanique ZCY49 limit switch lever is its thermoplastic roller. The roller has a 50 mm diameter and is used with a variable-length lever arrangement. This makes the component useful when alignment, contact angle, or approach distance must be adapted during machine setup. In real installations, this flexibility can make a meaningful difference, especially on conveyors, packaging lines, handling systems, and mechanical indexing equipment.

Telemecanique ZCY49 Technical Profile

The ZCY49 is identified as a limit switch lever for Telemecanique XC Standard limit switches. It is connected with the ZCY device short name and is designed for spring-return roller lever operation. The actuator movement is rotary, which means the lever returns after the operating force is removed. This behavior is important for repeatable detection cycles because the switch can reset naturally after the moving object passes the actuation point.

Compatibility is a central selection factor. The ZCY49 is intended for specific Telemecanique limit switch platforms rather than being a universal mechanical part. It is used with compatible XCKT, XCKP, and XCKD limit switch assemblies, and it may be associated with operating heads such as ZCE01 and ZCE05 depending on the switch configuration. Before replacement or installation, the existing switch body and head should always be checked against the product data sheet.

Where the ZCY49 Is Used

In automation systems, this lever can be used wherever physical position feedback is required. Typical examples include end-of-travel detection, machine door monitoring, conveyor object sensing, lift mechanisms, material transfer stations, and equipment reset positions. Because the roller makes contact with moving parts, it helps reduce sliding wear compared with a fixed arm or plunger-style contact.

The Telemecanique ZCY49 limit switch lever is not an electronic sensor by itself. It is a mechanical actuator accessory that works as part of a complete limit switch assembly. This distinction matters because the electrical rating, contact type, enclosure rating, and wiring depend on the switch body used with it. The lever provides the mechanical interface; the switch body provides the electrical switching function.

Installation Considerations

Correct alignment is essential. The roller should meet the moving target at a controlled angle, without shock loading or excessive side force. The lever should have enough travel to actuate the switch clearly, but it should not be forced beyond the recommended operating range. In dusty or high-cycle environments, periodic visual checks are useful to confirm that the roller remains free to rotate and that the lever has not been bent or misaligned.

For more Telemecanique details, visit Telemecanique industrial components.

Telemecanique ZCY49 Frequently Asked Questions

What is the Telemecanique ZCY49 used for?

It is used as a limit switch lever for compatible Telemecanique XC Standard limit switch assemblies. Its main job is to provide a roller-based mechanical actuation point for position detection.

Is the ZCY49 a complete limit switch?

No. The ZCY49 is a lever accessory, not a full electrical limit switch. It must be used with a compatible limit switch body and operating head.

What type of operator does the ZCY49 use?

It uses a roller lever arrangement with spring return. The roller helps the actuator engage moving objects more smoothly during repeated mechanical contact.

Which applications are suitable for this lever?

It is suitable for conveyors, machine travel detection, guarded equipment, packaging machinery, handling equipment, and other systems where physical position feedback is needed.

Why is compatibility important?

Limit switch levers are designed for specific switch bodies and heads. Using the wrong lever can affect actuation distance, reset behavior, mechanical fit, and long-term reliability.
