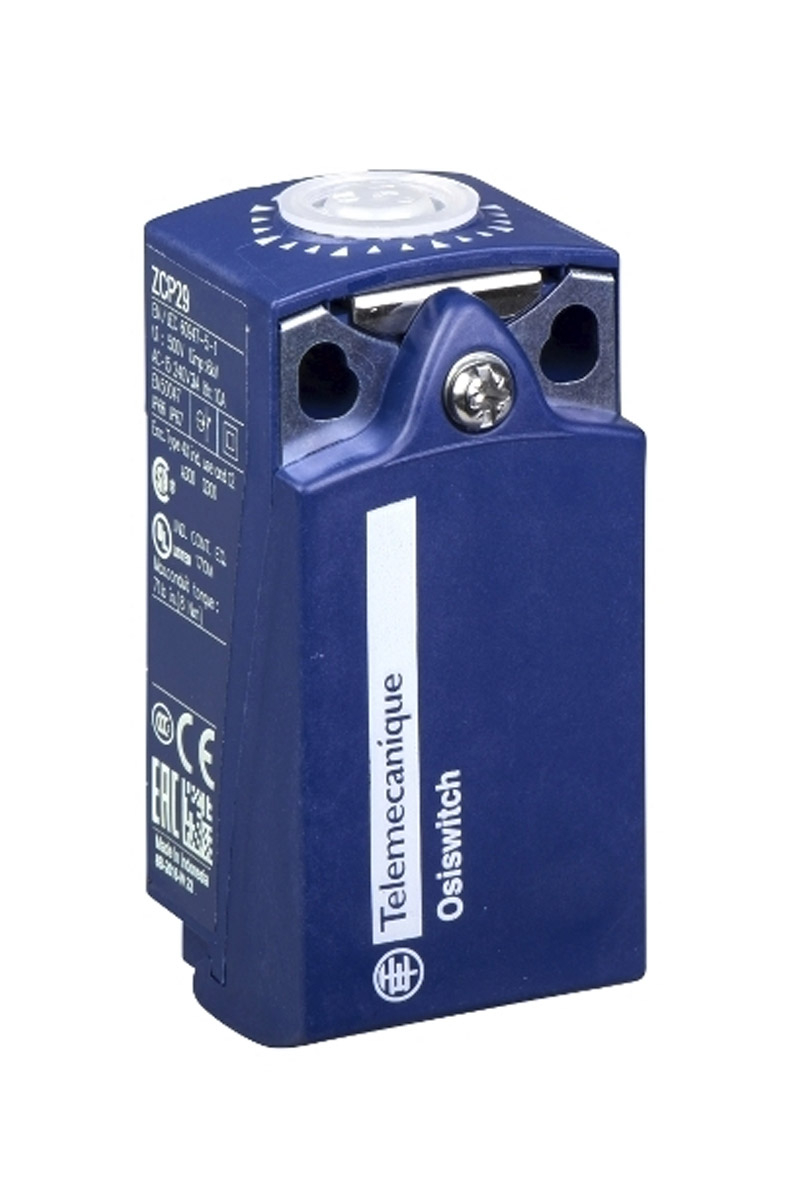

Telemecanique ZCP29 Limit Switch Body Technical Guide
The Telemecanique ZCP29 limit switch body is designed for industrial automation systems that require accurate mechanical position detection and reliable switching performance. As part of the well-known XC Standard product family, this compact switch body is frequently used in machinery, conveyor systems, industrial access control equipment, packaging lines, and automated manufacturing environments.
Reliable position detection is essential for safe and efficient machine operation. Industrial automation systems depend on durable switching devices capable of operating continuously under demanding conditions. The Telemecanique ZCP29 limit switch body was developed to meet these requirements while maintaining compact dimensions and flexible installation capabilities.
Main Features of the Telemecanique ZCP29 Limit Switch Body
The Telemecanique ZCP29 limit switch body features a compact housing designed for industrial use. It is commonly associated with snap-action contacts that deliver fast and repeatable electrical switching. This type of switching mechanism is widely preferred in industrial automation because it improves signal reliability and helps reduce switching inconsistencies.
The switch body supports modular assembly with compatible actuator heads. Engineers can select different head types according to machine movement, including roller levers, plungers, or rotary actuators. This flexibility allows the same switch body platform to be adapted for multiple industrial applications.
The housing is engineered to provide strong resistance against industrial contamination and mechanical stress. With proper assembly, the device can achieve high environmental protection suitable for demanding factory conditions.
Industrial Applications
The Telemecanique ZCP29 limit switch body is commonly used in industrial production lines where machine movement and equipment positioning must be monitored continuously. Conveyor systems use these switches to confirm travel limits and product positions. Packaging machines rely on mechanical limit switches to synchronize machine sequences and improve operational accuracy.
Automated access systems also use compact limit switch bodies to detect gate movement and safety door positioning. Material handling systems frequently integrate mechanical switches to monitor lift positions, transfer systems, and mechanical stops.
Because of its compact dimensions, the Telemecanique ZCP29 limit switch body can be installed in restricted machine layouts where larger industrial switches would be impractical.
Advantages of Modular Limit Switch Systems
One of the major advantages of modular limit switch systems is adaptability. Engineers can replace actuator heads independently from the switch body, simplifying maintenance and allowing fast configuration changes when machine requirements evolve.
The Telemecanique ZCP29 limit switch body also supports long operational life when installed correctly. Industrial automation environments require switching components capable of handling repetitive movement over extended periods without performance degradation.
Installation and Maintenance
Correct mounting alignment is important for reliable switch operation. The actuator should contact the moving machine component smoothly without excessive force. Poor alignment may reduce mechanical life or create inconsistent switching behavior.
Electrical installation should comply with local industrial standards. Cable routing, sealing, and environmental protection should also be verified during installation to maintain reliable long-term performance.
For more industrial automation solutions, visit Telemecanique automation components.
Frequently Asked Questions
What is the Telemecanique ZCP29 limit switch body?
The Telemecanique ZCP29 limit switch body is a compact industrial switching component used for machine position detection and automation control applications.
Where is the ZCP29 commonly used?
This switch body is commonly used in conveyors, packaging equipment, automated production lines, machine guarding systems, and industrial material handling applications.
Can the ZCP29 operate in industrial environments?
Yes. The switch body is designed for industrial environments and supports reliable operation when properly installed with compatible actuator heads and sealing components.
Why are modular switch bodies beneficial?
Modular systems allow engineers to combine different actuator heads with the same switch body, improving flexibility and simplifying maintenance.
Does the Telemecanique ZCP29 require a separate actuator?
Yes. The switch body is generally combined with a compatible actuator head selected according to the machine movement and application requirements.
