Telemecanique XUKT1KSML2 Photoelectric Sensor Technical Guide

The Telemecanique XUKT1KSML2 photoelectric sensor is a compact reflex sensor developed for reliable detection in packaging and industrial automation applications. It is especially relevant where transparent or semi-transparent materials must be detected, such as bottles, trays, film, clear packaging, and plastic containers.

Product Overview

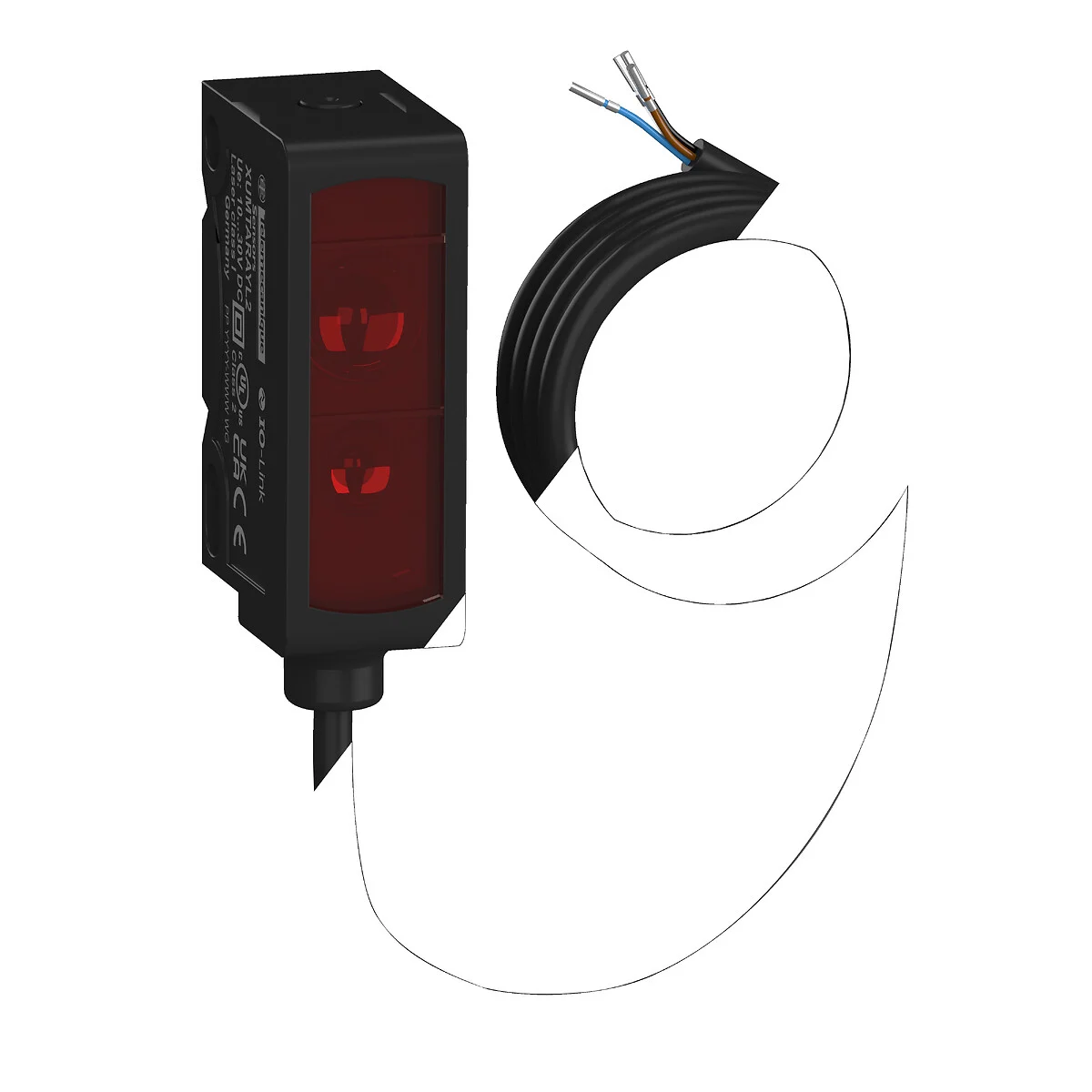

The XUKT1KSML2 belongs to the Telemecanique OsiSense XU range and is part of an application packaging series. It uses a reflex detection system and has a compact 50 x 50 sensor design. The sensor is built with a plastic body and provides a discrete DC output signal.

This model has a nominal sensing distance of 1.5 m and operates on a 12 to 24 V DC supply. It is supplied with a 2 m cable, making it practical for direct wiring into packaging machines, conveyor systems, inspection stations, and automated process equipment.

Technical Specifications

The Telemecanique XUKT1KSML2 photoelectric sensor uses a 3-wire wiring technique and supports PNP or NPN discrete output types. The output function is programmable as normally open or normally closed, giving automation engineers flexibility when integrating the device with different PLC input configurations.

The sensor is designed for reflex detection and is commonly associated with transparent material sensing. This makes it different from general object detection sensors, because transparent objects can allow light to pass through and may be harder to detect reliably with standard photoelectric devices.

Why Transparent Material Detection Matters

Transparent objects are often difficult for ordinary sensors because they may not block enough light to create a strong detection signal. In packaging lines, this can lead to missed bottles, incorrect counts, rejected products, or machine timing problems. The XUKT1KSML2 is designed for these kinds of applications, where reliable sensing of clear or translucent items is important for stable production.

Typical examples include clear PET bottles, plastic containers, glass products, transparent trays, blister packs, and clear wrapping film. In these situations, choosing the correct sensor type can have a major impact on process reliability.

Industrial Applications

The XUKT1KSML2 is a strong fit for packaging machines, bottling lines, filling systems, labeling machines, sealing equipment, and conveyor-based inspection points. It can be used to confirm product presence, check container flow, support counting operations, and help prevent machine cycles from starting when a product is missing.

Because the sensor uses a compact 50 x 50 design, it can be installed in areas where machine space is limited. This is useful in modern packaging equipment, where multiple sensors, guards, actuators, and mechanical components often share the same working area.

For more details about related products, visit Telemecanique industrial sensors.

Integration and Setup

The XUKT1KSML2 gives integrators useful flexibility through its PNP or NPN output capability and programmable NO or NC operation. This helps maintenance teams replace or standardize sensors across machines with different control architectures. Before installation, the wiring diagram and PLC input type should always be checked carefully.

Sensor alignment is also important. Since the device works on a reflex principle, the reflector should be installed opposite the sensor, and the sensing path should be adjusted according to the object material and process layout. Transparent material detection can require careful commissioning because different materials, wall thicknesses, curves, and surface finishes can influence signal strength.

Operational Benefits

The main benefit of the Telemecanique XUKT1KSML2 photoelectric sensor is dependable detection in packaging applications where standard sensors may struggle. By supporting transparent material sensing, compact installation, DC operation, and flexible output selection, it provides a practical solution for production environments that need stable object recognition without excessive mechanical complexity.

For maintenance teams, the 2 m cable version can simplify replacement in machines where connector space is limited or where fixed cable routing is preferred. For machine builders, the compact format helps create repeatable sensor layouts across packaging platforms.

Telemecanique XUKT1KSML2 Frequently Asked Questions

What type of sensor is the Telemecanique XUKT1KSML2?

It is a compact reflex photoelectric sensor from the Telemecanique OsiSense XU range. It is designed for industrial sensing applications, especially in packaging environments.

Is the XUKT1KSML2 suitable for transparent materials?

Yes. This model is commonly used for transparent material detection, including clear packaging, bottles, containers, trays, and plastic films.

What is the sensing distance of the XUKT1KSML2?

The nominal sensing distance is 1.5 m. This range is suitable for many packaging machine and conveyor detection points.

What supply voltage does the XUKT1KSML2 require?

The sensor operates on a 12 to 24 V DC supply, which is standard in many industrial automation systems.

Does the XUKT1KSML2 support both PNP and NPN outputs?

Yes. The sensor supports PNP or NPN discrete output types, and its output function can be programmed as normally open or normally closed.

Does this version use a cable or connector?

The XUKT1KSML2 is supplied with a 2 m cable. This supports direct wiring where a fixed cable sensor is preferred.

Where is the XUKT1KSML2 commonly installed?

It is commonly installed on packaging machines, bottling lines, conveyors, filling systems, labeling stations, and inspection areas where transparent object detection is required.
