Omron Y92E-MM08PVC4Sconf-L Field Assembly Connector

Reliable electrical connections are essential for maintaining stable communication between industrial sensors and automation equipment. The Omron Y92E-MM08PVC4Sconf-L Field Assembly Connector is designed for applications where customized cable termination is required directly on-site. Its field-assembly construction allows technicians to prepare cables without relying on pre-assembled cordsets while maintaining compatibility with standard M8 sensor interfaces.

The Omron Y92E-MM08PVC4Sconf-L Field Assembly Connector is suitable for machine builders, maintenance teams, and automation engineers who require flexible installation while preserving dependable electrical performance. The product follows the M8 industrial connector standard commonly used with compact sensors and control devices. Technical specifications are based on the manufacturer’s published documentation.

Omron Y92E-MM08PVC4Sconf-L Technical Description

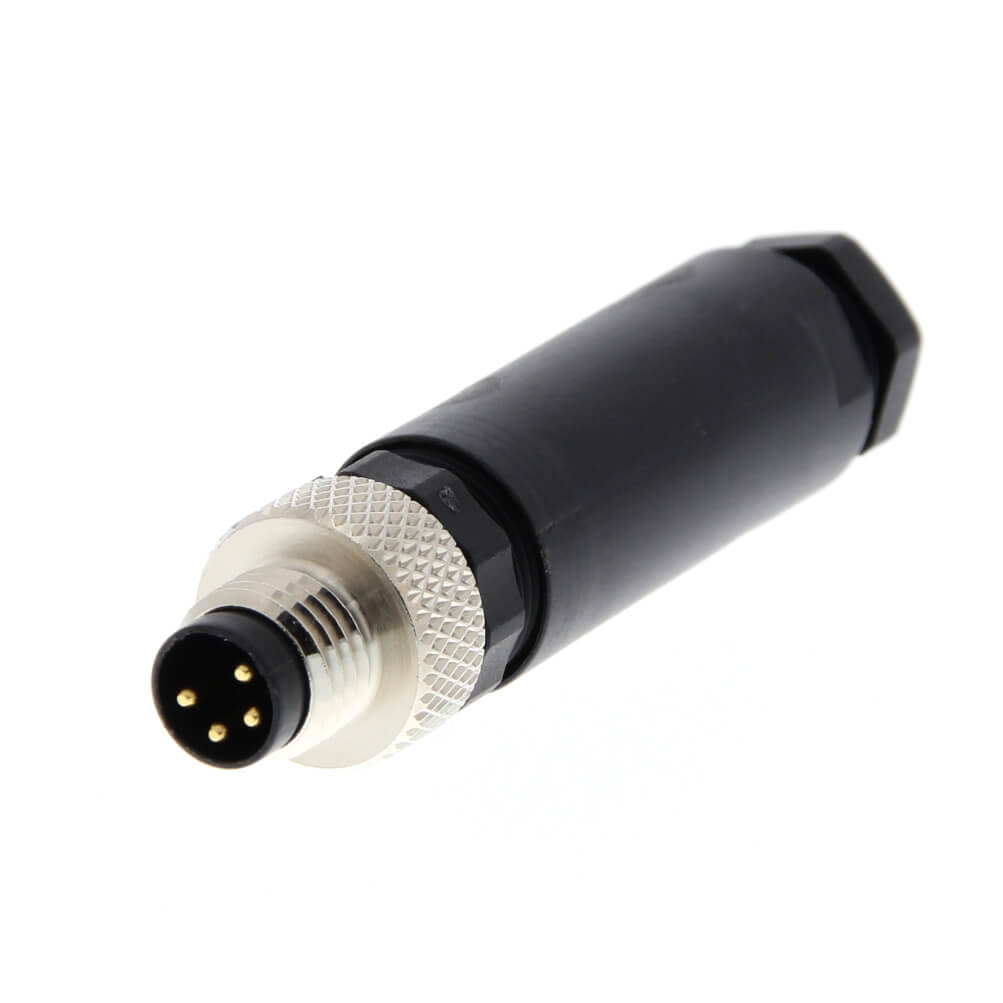

This connector features a straight M8 male plug with four electrical contacts. The internal screw terminal design enables field wiring using cables with an outer diameter between 3.5 mm and 5 mm. The housing is intended for industrial environments where reliable mechanical retention and stable signal transmission are important.

The connector uses a CuSn coupling nut and is supplied without an integrated LED indicator. When properly assembled, the connection provides an IP67 protection rating, helping protect electrical contacts against dust ingress and temporary water immersion under specified installation conditions.

Working Principle

The connector establishes both power and signal transmission between a field device and the associated control system. Individual conductors are secured inside the connector using screw terminals, creating a mechanical and electrical connection without specialized crimping equipment.

After assembly, the threaded M8 locking mechanism secures the connector to the mating device. This threaded interface minimizes accidental disconnection caused by vibration or repeated machine movement while maintaining consistent electrical continuity throughout normal operation.

Omron Y92E-MM08PVC4Sconf-L Typical Applications

• Photoelectric sensor connections
• Inductive proximity sensor wiring
• Compact automation equipment
• Machine tool installations
• Packaging machinery
• Assembly systems
• Material handling equipment
• Factory automation cabinets

Additional Omron sensor products can be used alongside this connector when designing complete sensing and connection systems.

Industrial Applications

Manufacturing facilities frequently require connector solutions that simplify cable replacement without replacing complete cable assemblies. Field-assembly connectors support this approach by allowing technicians to terminate cables directly during installation or maintenance.

In automotive production lines, compact sensors are commonly installed around fixtures, positioning stations, and inspection equipment where limited installation space favors M8 connectors. Food processing machinery may also utilize similar connector systems where equipment requires periodic servicing while maintaining appropriate environmental protection.

Warehouse automation systems benefit from field-configurable connectors during conveyor modifications and equipment expansion projects. They also support maintenance operations by reducing downtime associated with replacing damaged connector assemblies.

Advantages

• Field assembly eliminates dependence on factory-terminated cables.
• Standard M8 interface supports many industrial sensor platforms.
• Screw terminal connection allows straightforward cable installation.
• IP67 protection supports demanding industrial environments.
• Compact design fits installations with limited mounting space.
• Suitable for cable diameters from 3.5 mm to 5 mm.
• Rated for 36 V and 4 A according to manufacturer specifications.
• Mechanical threaded locking improves connection stability.

Industry Examples

Machine Manufacturing

OEM machine builders can terminate custom cable lengths during final assembly while maintaining standardized M8 sensor interfaces.

Packaging Equipment

Sensor replacement becomes simpler because damaged connectors can often be rebuilt on-site instead of replacing an entire cable assembly.

Omron Y92E-MM08PVC4Sconf-L Material Handling Systems

Conveyor-mounted sensors often require customized cable routing where field assembly offers installation flexibility.

General Factory Automation

Maintenance departments may keep field connectors in inventory to quickly restore damaged sensor connections during scheduled or emergency maintenance.

Considerations Before Selecting the Product

• Verify that the mating device uses a standard M8 interface.
• Confirm that four electrical contacts meet application requirements.
• Ensure cable diameter falls within the supported 3.5–5 mm range.
• Check environmental requirements against the IP67 protection level.
• Confirm rated voltage and current are suitable for the connected equipment.
• Follow manufacturer assembly recommendations to maintain sealing performance.

Omron Y92E-MM08PVC4Sconf-L Frequently Asked Questions

1. What type of connector is this product?

It is a field assembly M8 straight male connector with four contacts.

2. How many pins are available?

The connector provides four electrical contacts.

3. Which cable diameters are supported?

The connector accepts cables with an outer diameter between 3.5 mm and 5 mm.

4. What connection method is used?

The conductors are terminated using screw terminals.

5. Does the connector include an LED indicator?

No. The manufacturer specifies that this model does not include an integrated LED.

6. Where is this connector commonly used?

It is frequently installed with industrial sensors, automation equipment, conveyors, packaging machines, and compact control systems.

7. What protection rating is provided?

When correctly assembled and mounted, the connector provides IP67 environmental protection.

8. Why would a field assembly connector be selected instead of a pre-assembled cable?

Field assembly connectors allow customized cable lengths and on-site termination, which can simplify installation and maintenance in industrial automation projects.
