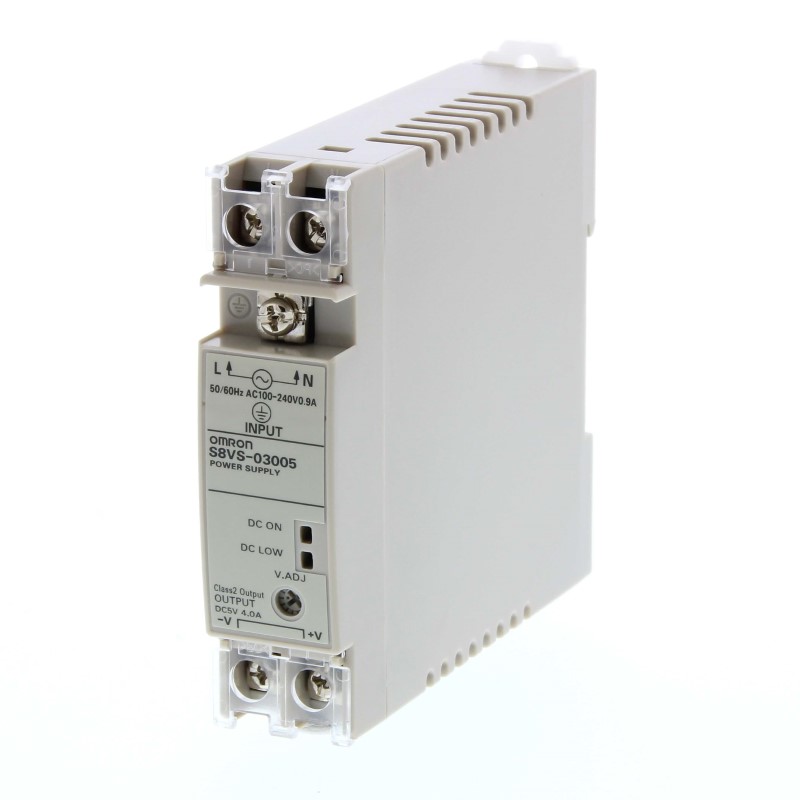

Omron S8VS-03005 Switching Power Supply

The Omron S8VS-03005 is a compact switching power supply designed to deliver 5 VDC power for industrial automation and electronic control equipment. It provides a rated output current of 4 A, resulting in an applicable 20 W output capacity for this 5 V model. Its narrow 22.5 mm housing supports space-efficient installation in control cabinets. Contact Emaconn for current pricing, availability, delivery information and technical product selection support.

Low-Voltage Power for Industrial Electronics

Industrial electronic devices operating at 5 VDC require a power supply that can maintain a suitable output under changing load conditions. The S8VS-03005 converts the available input supply into low-voltage DC power for compatible control modules, indicators, interface devices and other electronic loads.

The model has a rated input voltage of 100 to 240 VAC at 50 Hz. Its allowable AC input range is 85 to 264 VAC, while the allowable DC input range is 80 to 370 VDC. These characteristics enable engineers to assess the unit for equipment intended to operate under different industrial supply conditions.

Technical Specifications

Application Areas

The 5 VDC output differentiates this model from the more common 12 VDC and 24 VDC industrial power supplies. It should only be used with loads specifically designed for a 5 VDC supply. Applying an unsuitable voltage can prevent correct operation or damage connected equipment.

Potential applications include:

• Industrial electronic control modules
• Machine-interface circuits
• Low-voltage indication equipment
• Testing and measurement assemblies
• Compact automation panels
• Electronic subassemblies in OEM machinery
• Replacement power supplies for compatible systems

The model has one output branch and does not include an integrated communication port or alarm function. Applications requiring status monitoring, network diagnostics or several separately protected circuits may need external monitoring and circuit-distribution components.

Understanding the Output Rating

The S8VS-03005 belongs to the 30 W frame class within the S8VS product range. However, the 5 V version supplies 4 A, corresponding to an effective output capacity of 20 W. Engineers should therefore use the verified 5 V and 4 A output values when calculating the available power for connected loads.

The total continuous current requirement of all connected devices must remain within the applicable output limit. Starting currents, transient demand, cable voltage drop and future circuit expansion should also be considered. An appropriate operating margin can help avoid continuous operation at maximum capacity.

If the application requires more than 4 A at 5 VDC, a higher-capacity supply should be selected. A model with the same physical appearance but a different voltage rating is not automatically compatible with the existing equipment.

Installation and Electrical Integration

The narrow housing is designed for DIN rail installation and may also be considered for direct panel mounting where supported by the applicable mounting arrangement. Panel designers should verify available space, wiring access, ventilation and the required distance from adjacent heat-producing devices.

The screw-terminal connections require properly prepared conductors and the specified tightening torque. Input protection, grounding and cable sizing should follow the panel design and relevant electrical standards. Input and output wiring must be clearly identified to reduce errors during installation and future maintenance.

The specified operating temperature range extends from -10°C to 60°C. Output availability can be affected by ambient temperature, mounting orientation and ventilation. The manufacturer’s derating requirements should be checked when the power supply is installed in a warm or densely populated enclosure.

Before connecting sensitive 5 VDC equipment, commissioning personnel should confirm output polarity and measure the output voltage. The load should then be introduced in a controlled manner while the current demand and system behaviour are monitored.

Selection and Replacement Checks

Before ordering, confirm the output voltage, current requirement, input supply and available mounting space. The S8VS-03005 should not replace a 12 VDC or 24 VDC model, even if the mechanical format appears similar.

For an existing installation, check the full product code on the nameplate and review the current load. Machinery modifications may have increased the connected demand since the original power supply was selected. In this situation, replacing the unit with the same capacity without reviewing the total load may not resolve an existing power problem.

Environmental conditions, terminal type and required approvals should also be reviewed. If the model does not satisfy the electrical or mechanical requirements, an alternative power supply should be evaluated before the purchase order is issued.

Industrial Purchasing Support from Emaconn

Emaconn can support industrial customers sourcing the S8VS-03005 for machine-building projects, control-panel production, maintenance inventory and replacement requirements. Commercial support can include current pricing, stock checks, estimated lead times, quotation preparation and international product supply.

Customers should provide the full model number, required quantity, delivery destination and requested schedule. Sharing the operating voltage and connected load can also help with technical suitability checks and alternative model evaluation.

Explore the Omron industrial automation product range for related power supplies and control components. Confirm the complete electrical and installation requirements before placing an order.

Omron S8VS-03005 Conclusion

The Omron S8VS-03005 supplies 5 VDC at 4 A for compatible industrial electronic loads, providing an applicable output capacity of 20 W. Its narrow 22.5 mm housing, DIN rail format and screw terminals support integration into compact control cabinets. Correct selection requires verification of load current, input voltage, temperature, mounting and wiring conditions. Contact Emaconn to request current pricing, confirm availability or discuss an alternative model.

Frequently Asked Questions

What output voltage does the S8VS-03005 provide?

It provides a rated output voltage of 5 VDC.

What is the rated output current?

The rated output current is 4 A.

What is the applicable output capacity of this model?

The 5 VDC and 4 A ratings correspond to an applicable output capacity of 20 W.

Which AC input range does it support?

It has a rated input of 100 to 240 VAC and an allowable AC range of 85 to 264 VAC.

Can this power supply accept a DC input?

Yes. The allowable DC input range is specified as 80 to 370 VDC, subject to the manufacturer’s conditions.

How is the S8VS-03005 mounted?

It is intended for DIN rail installation and can support direct panel mounting with the appropriate arrangement.

Does it have an alarm or communication function?

No. This model does not include an integrated alarm function or communication port.

How can current pricing be requested?

Submit the full model number, quantity and delivery destination to receive an up-to-date quotation.

Can stock status be checked before ordering?

Yes. Availability should be confirmed during the enquiry because stock conditions may change.

Is quantity-based purchasing support available?

Yes. Quotations can be prepared for project quantities, maintenance stock and repeated purchasing requirements.

How can the estimated lead time be confirmed?

Lead time is confirmed according to current availability, required quantity and delivery location.

Can an alternative 5 VDC model be evaluated?

Yes. Alternatives can be reviewed according to current capacity, dimensions, mounting and project requirements.
