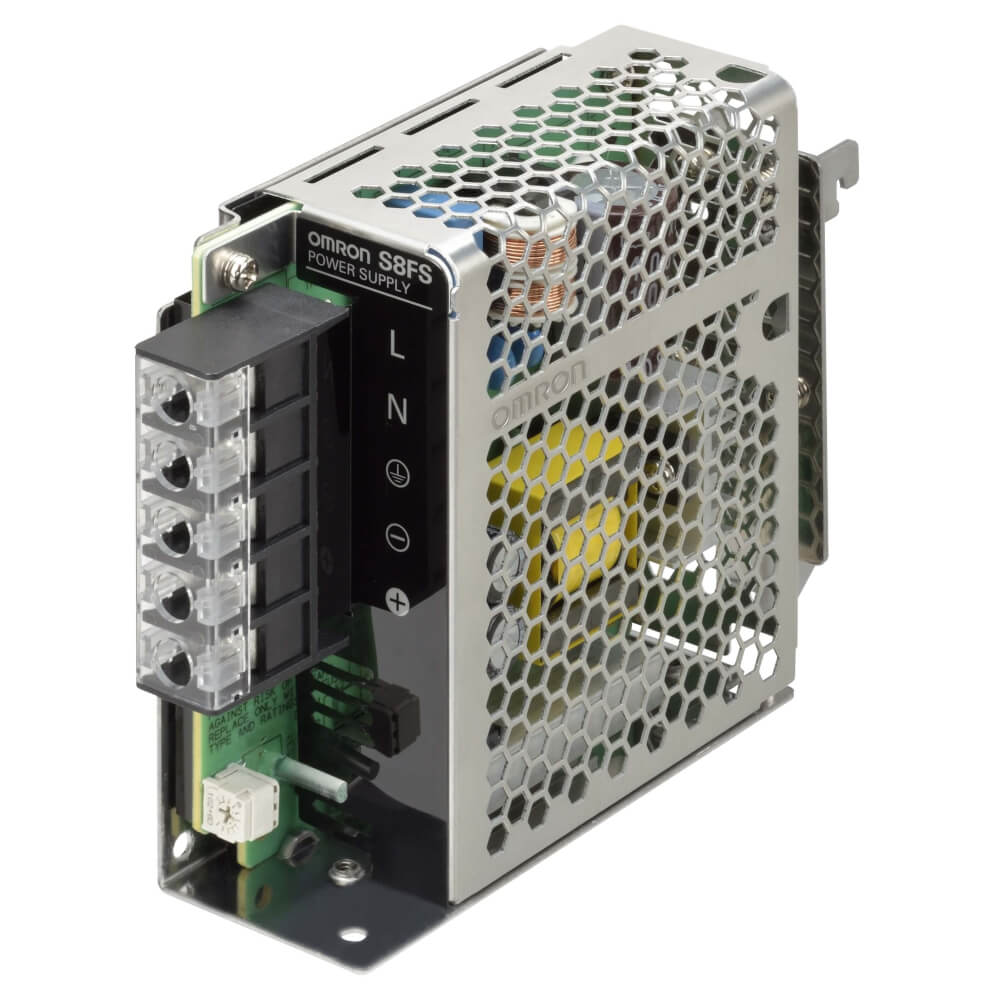

Omron S8FS-G05012CD 50 W 12 VDC DIN Rail Power Supply
The Omron S8FS-G05012CD DIN rail power supply is an enclosed switch-mode unit developed to supply regulated 12 VDC power within industrial machinery and control panels. It provides 50 W of output power with a rated current of 4.3 A, making it relevant to compatible control circuits, interface equipment, indicators, relays, and electronic modules. Buyers can contact Emaconn for current pricing, stock information, delivery estimates, and technical product selection support.
Power Supply Configuration and Performance
This single-phase model operates with a rated input of 100 to 240 VAC at 50 Hz. Its allowable AC input range extends from 85 to 264 VAC, supporting equipment intended for different regional power networks. An allowable input range of 80 to 370 VDC is also specified. Any DC-input installation should be reviewed against the manufacturer’s documentation, upstream protection requirements, and applicable electrical regulations.
The 12 VDC output is suitable for industrial devices designed to operate at this voltage. Its rated output current of 4.3 A must be considered together with the 50 W power limit. Engineers should calculate continuous consumption, temporary startup demand, cable losses, and an appropriate design margin instead of selecting the unit only by nominal voltage.
Verified Technical Characteristics
- Product type: Enclosed switch-mode power supply
- Phase: Single phase
- Rated input voltage: 100 to 240 VAC
- Allowable AC input: 85 to 264 VAC
- Allowable DC input: 80 to 370 VDC
- Output voltage: 12 VDC
- Rated output current: 4.3 A
- Output power: 50 W
- Efficiency: 86%
- Mounting method: DIN rail
- Connection: Forward-facing screw terminal block
- Temperature range: -20 to 70°C
- Dimensions: 97 × 36 × 99 mm
- Number of output branches: One
The 86% efficiency rating contributes to controlled energy losses within the power conversion process. However, enclosure temperature, airflow, adjacent heat-producing components, installation spacing, and actual load remain important considerations when designing a reliable control panel.
Where Can the Omron S8FS-G05012CD Be Used?
The power supply can be integrated into industrial automation cabinets, packaging equipment, assembly machinery, inspection systems, production monitoring installations, and material-handling equipment. It may also support OEM electrical assemblies requiring a dedicated 12 VDC power source.
Suitable connected loads can include compatible relays, interface circuits, indicators, control electronics, and communication accessories. Compatibility cannot be determined by voltage alone. The combined current demand of every connected component must remain within the available output capacity under normal operation and startup conditions.
Its DIN rail mounting format simplifies integration alongside circuit protection, terminal blocks, relays, and control components. The forward-facing terminal block can also improve wiring access during panel assembly and scheduled maintenance, particularly where enclosure depth and component spacing have been planned correctly.
Selection Checks Before Ordering
Confirm that every connected device is designed for a 12 VDC source and that the total load does not exceed 4.3 A or 50 W. Allowance should be made for inrush current, future panel expansion, and operating conditions that may affect available output.
The physical dimensions of 97 mm in width, 36 mm in height, and 99 mm in depth should be compared with the available panel space. Engineers should also verify DIN rail orientation, terminal accessibility, cable bending space, ventilation, and separation from high-temperature components.
For replacement work, the complete code S8FS-G05012CD should be checked against the machine documentation. Similar S8FS-G models can differ in output voltage, current capacity, mounting arrangement, or terminal configuration. Replacing the unit with a model selected only by series name could result in electrical or mechanical incompatibility.
Omron S8FS-G05012CD Installation and Commissioning Guidance
Installation should be completed by qualified personnel with the power isolated. The unit must be secured to a compatible DIN rail inside a suitable industrial enclosure. Input and output conductors should be selected according to load current, cable length, terminal specifications, and applicable panel-building standards.
Because the output is 12 VDC, voltage drop along extended conductors may affect connected equipment. Correct conductor sizing and practical cable routing help maintain the required voltage at the load. Signal wiring should also be separated from power circuits where necessary to reduce electrical interference.
During commissioning, verify input voltage, output polarity, terminal tightness, measured output voltage, and current demand. Maintenance teams should periodically inspect the unit for loose wiring, abnormal heating, dust accumulation, discoloration, and restricted ventilation.
Order the Omron S8FS-G05012CD Through Emaconn
Emaconn supports industrial customers sourcing the Omron S8FS-G05012CD for new installations, planned maintenance, machine upgrades, and replacement requirements. Commercial support can include current price information, availability checks, estimated lead time, quotation preparation, and international supply coordination.
When requesting a quotation, provide the complete part number, quantity, destination country, and required delivery schedule. Application information can also help confirm whether the 12 VDC, 4.3 A configuration is appropriate. For project-based or volume orders, Emaconn can assess procurement options and help investigate technically suitable alternatives when required.
Additional automation components and power supply models are available through the Emaconn Omron product portfolio. Verify the electrical configuration and mechanical installation requirements before finalising an order.
Omron S8FS-G05012CD Conclusion
The Omron S8FS-G05012CD DIN rail power supply provides a 50 W, 12 VDC output for compatible industrial control and automation loads. Its 4.3 A rating, broad allowable input range, enclosed design, screw terminals, and DIN rail mounting support structured panel integration. Selection should include load calculations, temperature assessment, dimensional checks, voltage-drop evaluation, and confirmation of the complete model code. Contact Emaconn to obtain current pricing, check stock status, request a quotation, or discuss an alternative power supply.
Frequently Asked Questions
What is the Omron S8FS-G05012CD?
It is a single-phase enclosed switch-mode power supply designed for DIN rail installation in industrial control panels.
What output voltage does this model provide?
The power supply provides a rated output of 12 VDC.
What is its rated output current?
The rated output current is 4.3 A, with a total output power rating of 50 W.
Which AC input voltages are supported?
The rated input is 100 to 240 VAC, while the allowable AC input range is 85 to 264 VAC.
Can the S8FS-G05012CD accept a DC input?
An allowable DC input range of 80 to 370 VDC is specified. The complete installation requirements should be verified before using this option.
How is this power supply connected?
It uses a forward-facing screw terminal block for input and output wiring.
Can it replace another S8FS-G model?
Only after confirming output voltage, current, power, dimensions, mounting format, terminals, and the complete part number.
How can buyers request the current price?
Provide the part number, required quantity, and delivery destination to request up-to-date pricing and a formal quotation.
Is the S8FS-G05012CD currently in stock?
Availability changes according to supply conditions and order volume. Stock status should therefore be checked when placing an enquiry.
Can Emaconn support international orders?
International supply requirements can be evaluated based on the destination, quantity, requested schedule, and applicable order conditions.
Is volume procurement support available?
Yes. Project and volume enquiries can include quantity planning, delivery requirements, and quotation preparation.
Can an alternative model be recommended?
A technically suitable alternative may be investigated after reviewing the required voltage, current, input range, mounting method, dimensions, and application conditions.
