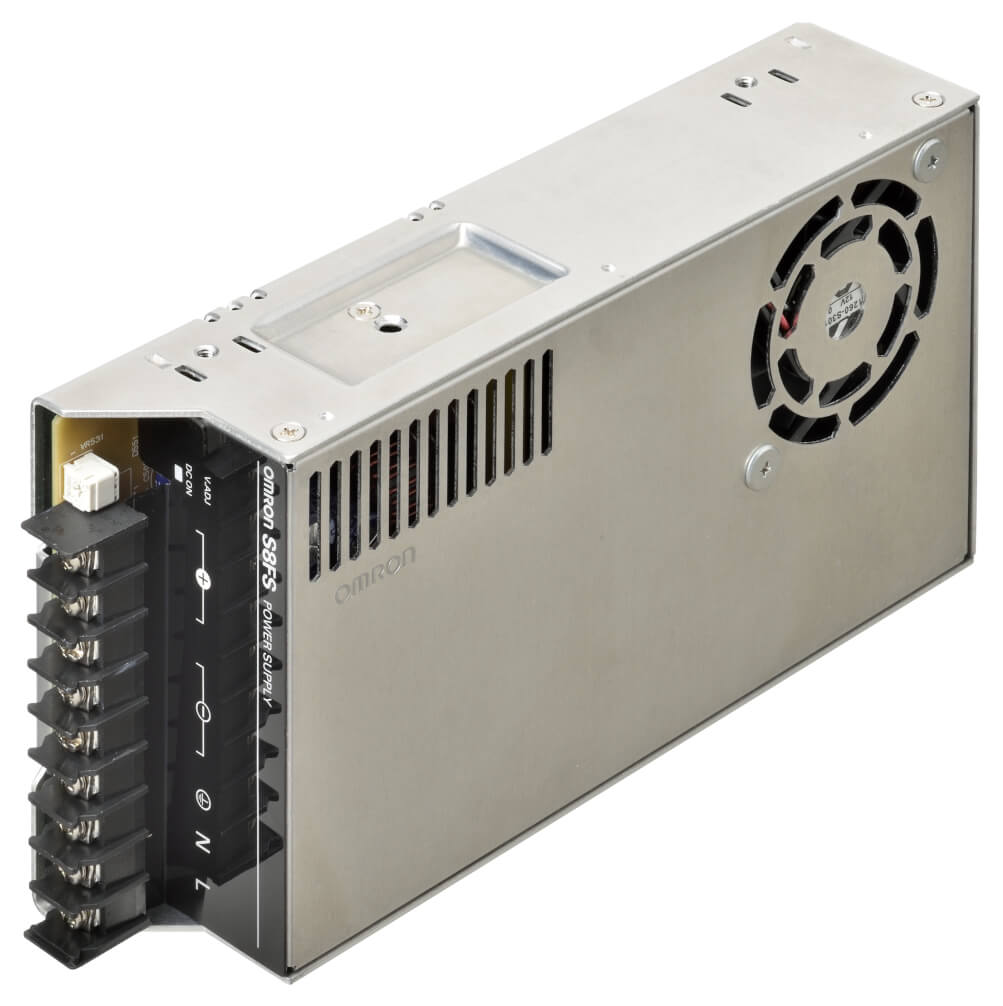

Omron S8FS-C35024J 350 W 24 VDC Power Supply
The Omron S8FS-C35024J power supply is an enclosed, single-phase switch mode power supply developed to deliver 24 VDC to industrial control equipment. With a rated output of 350 W and 14.6 A, it can be considered for control panels, production machinery, material-handling systems, and factory automation installations. Engineering and procurement teams can contact Emaconn to request current pricing, product availability, lead-time information, and support before placing an order.
Electrical Performance for Industrial DC Loads
The unit accepts a rated input of 100 to 240 VAC at 50 Hz, while its allowable AC input range extends from 90 to 264 VAC. This broad operating range supports installation in industrial systems used across different electrical supply environments. The model also specifies an allowable DC input range of 254 to 373 VDC, although the suitability of DC input operation should always be checked against the complete system design and applicable installation requirements.
Its 24 VDC output is commonly suited to industrial devices such as PLC systems, relays, sensors, operator interfaces, control circuits, and other compatible automation components. The rated current of 14.6 A must be evaluated against the combined steady-state and start-up demand of all connected loads. Designers should retain an appropriate capacity margin instead of operating the power supply continuously at the limit of its rating.
Verified Product Specifications
- Product type: Enclosed switch mode power supply
- Rated power: 350 W
- Output voltage: 24 VDC
- Rated output current: 14.6 A
- Rated AC input: 100 to 240 VAC
- Allowable AC input: 90 to 264 VAC
- Allowable DC input: 254 to 373 VDC
- Efficiency: 88%
- Operating temperature range: -20°C to 60°C
- Mounting method: Direct mounting
- Terminal arrangement: Front-facing screw terminals
- Dimensions: 112.5 mm wide, 50 mm high, and 212 mm deep
These values are based on the published official Omron S8FS-C35024J specifications. Engineers should also review the current manufacturer datasheet for derating conditions, wiring instructions, safety precautions, and applicable standards before integration.
Applications and System Integration
The S8FS-C35024J can support machinery that requires a central 24 VDC supply with a relatively high current capacity. Possible applications include packaging equipment, assembly stations, conveyor systems, machine control panels, warehouse automation, and production-line control systems. Actual suitability depends on the load profile, enclosure environment, cooling conditions, and required system availability.
The enclosed construction and direct-mounting format make the model suitable for integration into equipment assemblies where the installation layout has been designed around its physical dimensions. Its front-facing screw terminals can simplify access during panel wiring and scheduled maintenance. A compatible S82Y-FSC350DIN mounting bracket may be evaluated when DIN-rail installation is required, but the accessory and mounting configuration should be confirmed before ordering.
Selection Checks Before Ordering
Selection should begin with a complete 24 VDC load calculation. Add the rated consumption of connected controllers, sensors, relays, interface devices, and actuators, then examine peak currents that may occur during start-up or simultaneous switching. If the expected demand is close to 14.6 A, a higher-capacity model or a revised power distribution arrangement may be more appropriate.
The installation team should also verify available panel space, mounting orientation, airflow, ambient temperature, conductor size, terminal accessibility, and protective devices. The stated -20°C to 60°C temperature range does not remove the need to assess load derating and enclosure temperature. The temperature measured around the power supply may be considerably higher than the general room temperature.
This model does not include a communication port or integrated alarm function. Projects that require remote condition reporting, advanced diagnostics, redundant power architecture, or communication-based monitoring may need a different power supply configuration. Sharing these requirements during the quotation process helps prevent an unsuitable model from being selected solely on voltage and wattage.
Installation and Maintenance Considerations
The power supply should be installed by qualified personnel according to the manufacturer’s instructions and applicable electrical regulations. Correct input protection, grounding, output conductor sizing, terminal torque, separation of power and signal wiring, and sufficient ventilation are essential considerations. Before commissioning, technicians should confirm input voltage, output polarity, terminal security, and the total connected load.
Routine inspections can include checking for loose connections, blocked ventilation paths, contamination, unusual heating, and visible component damage. Power must be safely isolated before inspection or wiring work. For critical machinery, recording load levels and operating temperature can support preventive maintenance and more accurate replacement planning.
Source the S8FS-C35024J Through Emaconn
Emaconn can assist international industrial buyers with price requests, stock enquiries, lead-time checks, project quotations, and order preparation for the S8FS-C35024J. Providing the required quantity, delivery country, desired delivery schedule, and application details allows the commercial team to prepare a more relevant quotation.
Technical selection support may also cover part-number verification, mounting requirements, load suitability, and comparison with alternative models. For additional products and purchasing options, review the Omron industrial automation portfolio from Emaconn. The complete part number and required documentation should be confirmed before the purchase order is issued.
Conclusion
The Omron S8FS-C35024J power supply provides a 350 W, 24 VDC output rated at 14.6 A for compatible industrial control and automation loads. Its wide AC input capability, enclosed construction, direct-mounting design, and front screw terminals make it a practical candidate for machine and panel applications. Final selection should account for load margin, ambient temperature, panel dimensions, mounting method, and the absence of communication or alarm functions. Contact Emaconn to request current pricing, stock information, a project quotation, or an alternative-model assessment.
Frequently Asked Questions
What type of product is the Omron S8FS-C35024J?
It is an enclosed, single-phase switch mode power supply designed to provide regulated DC power for compatible industrial equipment.
What is its rated output?
The model supplies 24 VDC with a rated current of 14.6 A and a rated power capacity of 350 W.
Which AC input voltages are supported?
Its rated input is 100 to 240 VAC, while the published allowable AC input range is 90 to 264 VAC.
Can it be installed on a DIN rail?
The standard mounting method is direct mounting. A compatible S82Y-FSC350DIN bracket may be evaluated for DIN-rail installation.
Does the power supply provide communication or alarm functions?
No communication port or integrated alarm function is specified for this model. Applications needing remote diagnostics may require another solution.
How should the correct power capacity be calculated?
Add the continuous and peak current requirements of every connected 24 VDC load, then retain a suitable engineering margin.
What should be checked during installation?
Verify input protection, grounding, conductor size, terminal torque, airflow, mounting orientation, output polarity, and total connected load.
How can buyers request the current price?
Submit the exact part number, required quantity, delivery destination, and quotation details to receive current commercial information.
Can stock and lead time be confirmed before ordering?
Yes. Availability and estimated delivery conditions should be requested at the time of enquiry because they may change.
Is support available for bulk or project-based orders?
Project quantities can be evaluated through a tailored quotation that considers volume, delivery location, documentation, and scheduling requirements.
Can an alternative model be evaluated?
Yes. Provide the electrical load, input supply, mounting arrangement, environmental conditions, and required functions for a relevant comparison.
