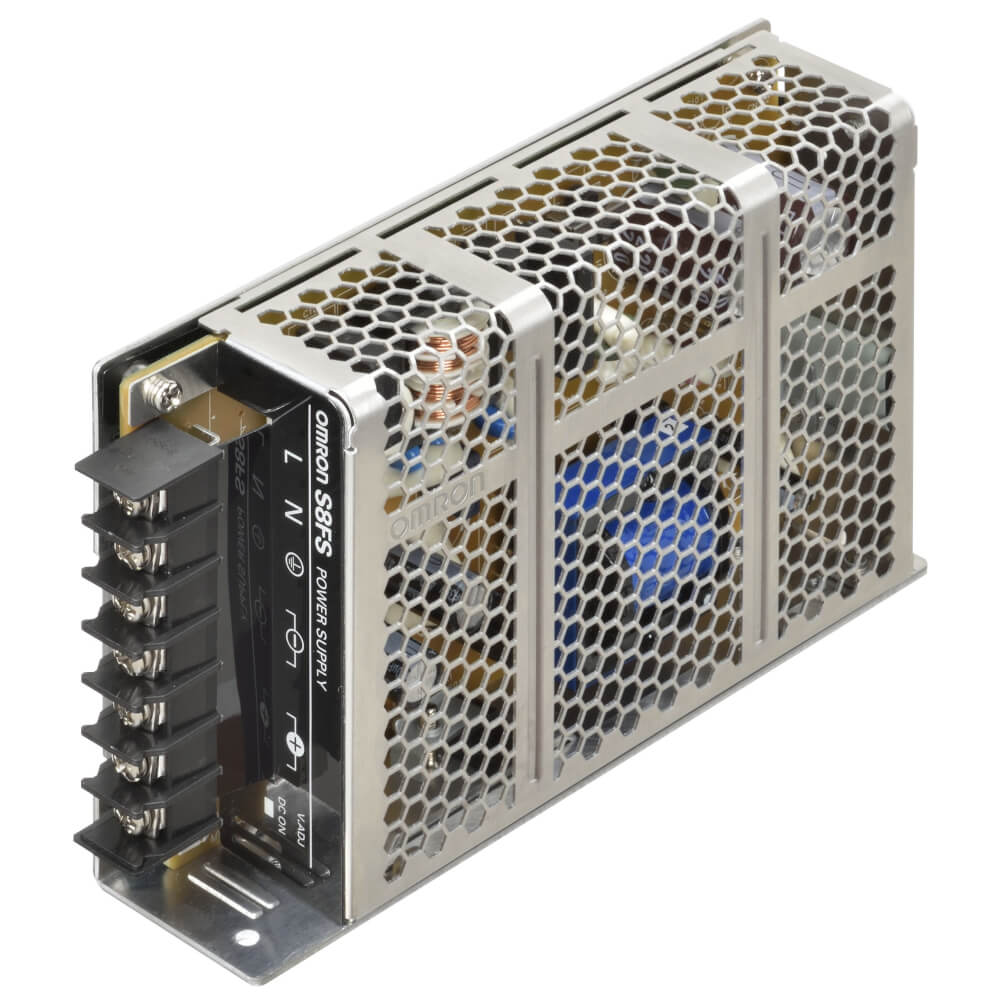

Omron S8FS-C10012J 100W 12VDC 8.5A Switch Mode Power Supply
The Omron S8FS-C10012J is a 100 W switch mode power supply designed to provide a regulated 12 VDC output for industrial equipment, control panels and machine systems. With a rated output current of 8.5 A and a forward-facing terminal block, this model is suitable for installations where practical wiring access and dependable DC power distribution are required. Engineering and procurement teams can contact Emaconn to request current pricing, availability, delivery information and product selection support.
Power Conversion for Industrial Equipment
Industrial controllers, relays, communication devices, indicators and other electronic loads depend on a consistent DC supply. The S8FS-C10012J converts the available AC input into a regulated 12 VDC output, helping connected components operate under stable electrical conditions.
Its 100 W capacity makes the unit relevant to applications with several 12 VDC loads or equipment requiring a higher current level than compact low-power supplies can provide. Before ordering, the total continuous load, starting current and required design margin should be calculated. Operating a power supply with sufficient unused capacity can support thermal management and future system expansion.
Key Technical Characteristics
| Manufacturer | Omron |
|---|---|
| Part Number | S8FS-C10012J |
| Product Type | Switch Mode Power Supply |
| Rated Power | 100 W |
| Rated Output Voltage | 12 VDC |
| Rated Output Current | 8.5 A |
| Input Selection | 100–120 VAC or 200–240 VAC |
| Allowable Input Range | 85–132 VAC, 176–264 VAC or 248–373 VDC |
| Terminal Configuration | Forward-facing terminal block |
| Output Indicator | Green LED |
| Cooling Method | Fanless |
The input range must be selected correctly using the unit’s voltage selector before power is applied. This verification is an important commissioning step because an incorrect selector position may affect safe operation. Electrical designers should also confirm that the source voltage, protective devices and wiring arrangements comply with the installation requirements.
Forward-Facing Terminals and Panel Integration
The “J” configuration identifies a model with its terminal block facing forward. This arrangement can simplify wiring when the unit is installed inside an enclosure with limited access from above. It may also improve visibility during installation, testing and scheduled maintenance.
The S8FS-C series supports panel mounting, while separately available brackets may be used where DIN rail installation is required. The intended mounting orientation, available ventilation space and cable routing should therefore be reviewed before purchase. Emaconn can assist customers in checking whether the selected configuration is appropriate for a new panel or a replacement project.
Omron S8FS-C10012J Protection and Operational Reliability
The S8FS-C10012J includes overload protection with automatic reset. It also provides overvoltage protection that shuts down the output when the voltage reaches the specified protection threshold. After the cause has been identified and corrected, input power must be switched off and applied again to restore operation following an overvoltage shutdown.
A green output indicator allows technicians to perform a quick visual status check. However, the indicator does not replace electrical measurements during troubleshooting or preventive maintenance. Output voltage, terminal tightness, load condition, temperature and ventilation should be inspected according to the maintenance policy of the machine or facility.
The fanless design eliminates a rotating cooling component and can reduce routine maintenance requirements. Correct airflow around the enclosure remains necessary, particularly when the power supply operates near its rated capacity or in elevated ambient temperatures. Derating conditions should be reviewed using the official Omron documentation.
Typical Industrial Applications
The Omron S8FS-C10012J can be evaluated for a range of professional 12 VDC systems, including:
- Industrial control cabinets
- Packaging and assembly machinery
- Factory automation equipment
- Material handling installations
- Machine indicators and control circuits
- 12 VDC relays, sensors and interface devices
- OEM electrical and electronic equipment
- Maintenance and replacement projects
Compatibility must be established from the complete system requirements rather than output voltage alone. Engineers should confirm current consumption, inrush characteristics, grounding, conductor size, ambient temperature and mounting conditions. Sensitive loads may also require additional filtering or circuit protection according to the application.
Omron S8FS-C10012J Selection and Ordering Considerations
When comparing this unit with another S8FS-C model, verify the full part number. Models within the same family may differ in output voltage, rated current, power capacity and terminal orientation. The S8FS-C10012J should not be selected solely because another power supply has a similar external appearance.
For replacement orders, record the complete number from the existing product label and check whether the installation uses a forward-facing terminal block. It is also advisable to confirm panel dimensions, input selector position, output polarity and connected load before removing the original unit.
Procurement teams can submit the required quantity, destination and project schedule to Emaconn for a commercial quotation. Providing application details helps the technical sales team review the requested model and identify potential configuration issues before the order is finalized.
Pricing, Availability and Supply Support
Availability and delivery schedules may vary according to order quantity and destination. Contact Emaconn for current information about the Omron S8FS-C10012J, including quotation support, lead time and international supply options. Customers researching other Omron industrial automation components can also visit the Omron product page.
Frequently Asked Questions
What is the rated output of the Omron S8FS-C10012J?
The unit provides a rated 12 VDC output, 8.5 A current and 100 W power capacity.
What does the J suffix indicate?
The J suffix identifies the configuration with a forward-facing terminal block, which can provide convenient wiring access in suitable panel layouts.
Can this power supply be mounted on a DIN rail?
The model is not the dedicated D configuration supplied for DIN rail mounting. Omron specifies that separately sold mounting brackets can be used for DIN rail installation. The required bracket and installation arrangement should be verified before ordering.
Does the S8FS-C10012J include protection functions?
Yes. It includes overload protection with automatic reset and overvoltage protection with output shutdown. The input supply must be cycled after an overvoltage condition has been corrected.
How can buyers request a quotation?
Buyers can contact Emaconn with the full part number, required quantity, delivery country and requested schedule to obtain current pricing and availability information.
