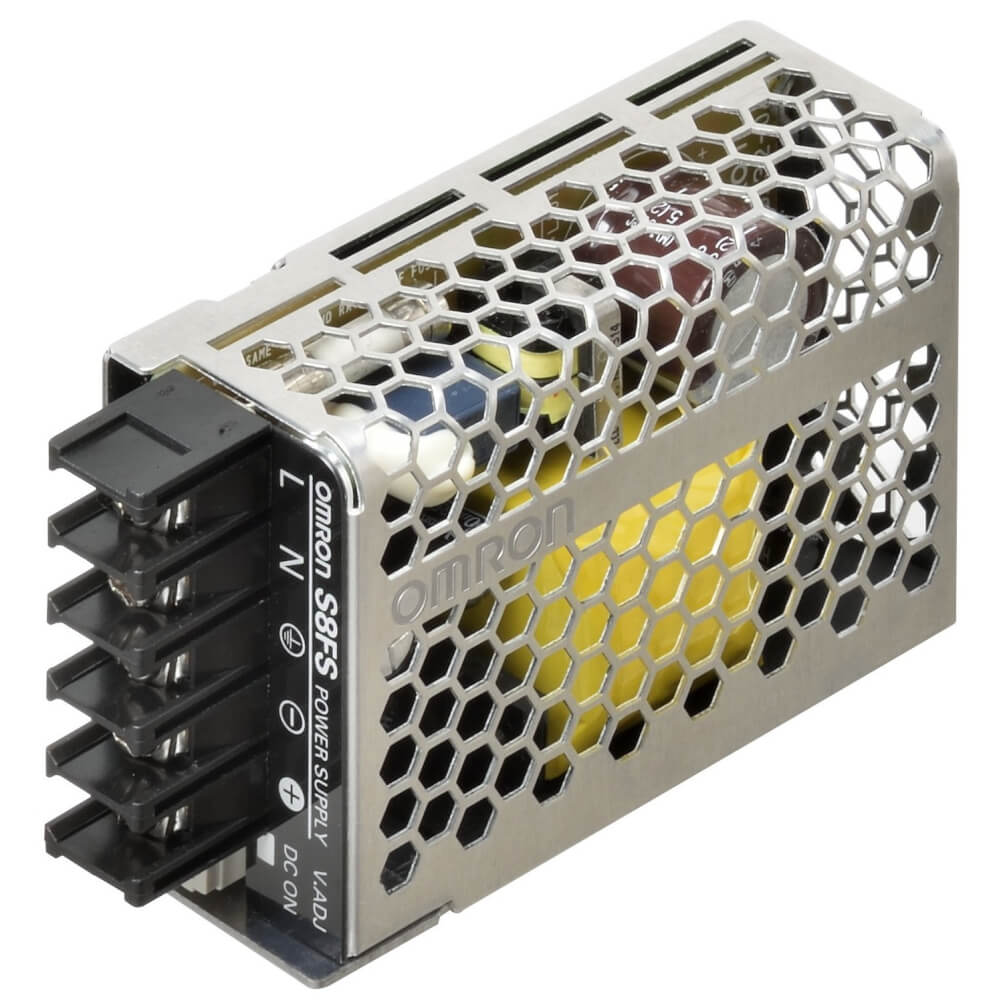

Omron S8FS-C01524J 15W 24VDC 0.7A Switch Mode Power Supply
The Omron S8FS-C01524J is a 15 W switch mode power supply designed to provide a stable 24 VDC output for industrial control equipment and machine systems. With a rated output current of 0.7 A and a terminal block facing forward, it can be evaluated for compact control panels, OEM equipment, monitoring assemblies, and low-power automation applications. Contact Emaconn for current pricing, product availability, lead time information, and technical selection support.
Stable 24 VDC Power for Industrial Equipment
Industrial controllers, relays, sensors, indicators, and monitoring devices require a consistent DC supply for reliable operation. This model converts a compatible AC or DC input into a regulated 24 VDC output, helping engineers establish an appropriate power source for connected control components.
The 15 W rating and 0.7 A output capacity make the unit suitable for applications with limited power demand. Engineers should calculate the total continuous current of every connected device and consider temporary startup or switching loads before confirming the model.
Important Technical Characteristics
- Product type: Switch mode power supply
- Rated power: 15 W
- Rated output voltage: 24 VDC
- Rated output current: 0.7 A
- AC input range: Single-phase 85 to 264 VAC
- DC input range: 120 to 370 VDC under specified conditions
- Output adjustment range: Approximately -10% to +10%
- Terminal arrangement: Terminal block facing forward
- Output indication: Green LED
- Cooling method: Natural air cooling without a fan
- Operating temperature: -20 to 60°C with applicable derating
The wide AC input range supports integration in machines intended for different industrial power environments. If DC input will be used, the applicable polarity, derating requirements, and safety conditions must be reviewed in the official product documentation before installation.
Suitable Industrial Applications
The Omron S8FS-C01524J may be used in compact machine controls, production monitoring equipment, packaging systems, test assemblies, control cabinets, and OEM electrical installations. It can supply compatible 24 VDC components when their combined demand remains within the available power capacity.
Typical connected loads may include relays, indicators, small controllers, signal-processing devices, and sensors. Compatibility should not be determined from voltage alone. The required current, startup characteristics, wiring arrangement, environmental conditions, and available installation space must also be checked.
Protection and Operating Functions
The integrated overload protection uses an automatic reset function. Once the cause of the overload is removed, the power supply can return to normal operation. Repeated overload events should be investigated because they may indicate an undersized power supply, damaged wiring, or a fault in the connected load.
Overvoltage protection shuts down the output when the defined protection threshold is exceeded. Input power must be switched off and then restored to reset the unit. These internal functions improve operational protection but do not replace correctly selected upstream fuses, circuit breakers, or application-specific protective devices.
Series operation is possible with up to two power supplies when suitable external diodes are used. Standard parallel operation is not supported. Backup operation may be considered with external diodes, provided the complete circuit is designed in accordance with Omron instructions.
Installation and Commissioning Considerations
The forward-facing terminal block can support accessible wiring and maintenance within an enclosure. Installers should provide sufficient ventilation, follow the specified mounting orientation, and observe the necessary spacing around the unit. Temperature and input-voltage derating must be considered when the power supply operates in a warm cabinet or under non-standard conditions.
Before commissioning, verify the input source, terminal connections, protective earthing, output polarity, measured output voltage, and total connected current. The green output indicator provides a useful visual reference, but electrical measurements should be used when confirming performance or diagnosing a system problem.
How to Select the Correct Power Supply
This product should be selected only when its 24 VDC output, 0.7 A current capacity, terminal configuration, and physical arrangement match the application. A reasonable capacity margin can support stable operation and planned system expansion. If the calculated load is close to 0.7 A, a higher-rated S8FS-C model may provide a more suitable engineering margin.
Purchasing teams should also verify the complete part number because the S8FS-C family includes different power ratings, output voltages, and mounting or terminal configurations. Replacing the product with a visually similar model without checking these details may result in wiring, installation, or electrical incompatibility.
Source the Omron S8FS-C01524J Through Emaconn
Emaconn can assist international industrial customers with current price information, availability checks, estimated delivery times, and quotation preparation. Support is also available for replacement requirements, planned maintenance purchases, project-based procurement, and bulk orders.
Before ordering, provide the exact product code, required quantity, delivery destination, input source, connected load, and preferred delivery schedule. These details support an accurate commercial and technical evaluation. Buyers can also explore the Omron industrial automation product range for related components and sourcing options.
Conclusion
The Omron S8FS-C01524J is a compact 15 W switch mode power supply for industrial systems requiring a regulated 24 VDC output at up to 0.7 A. Its wide input range, adjustable output, forward-facing terminals, status indicator, and protection functions support integration into suitable control and machine applications.
Final selection should account for total load current, startup demand, panel conditions, wiring access, derating, and required approvals. Contact Emaconn to confirm compatibility and request current pricing, stock information, or a project quotation.
Omron S8FS-C01524J Frequently Asked Questions
What type of product is the Omron S8FS-C01524J?
It is a 15 W switch mode power supply that converts a compatible AC or DC input into a regulated 24 VDC output.
What is the rated output current?
The rated output current is 0.7 A. Connected equipment must remain within this limit after applicable derating is considered.
Which AC input range does the unit support?
It supports a single-phase input range of 85 to 264 VAC, making it suitable for various industrial mains environments.
Can the product operate from a DC input?
It can accept 120 to 370 VDC under specified conditions. Polarity, derating, and relevant safety limitations must be reviewed before use.
What does the J suffix indicate?
The J version has a terminal block facing forward, which affects wiring access and the planned panel arrangement.
Can the output voltage be adjusted?
Yes. The output can be adjusted by approximately -10% to +10%, but the actual voltage must be measured to protect connected devices.
Does it include overload protection?
Yes. It includes automatic-reset overload protection. Recurring overloads should be investigated before continued operation.
Can two units be connected in parallel?
Standard parallel operation is not supported. Backup configurations may require external diodes and an appropriately engineered circuit.
How can buyers request the current price?
Submit the full part number, quantity, delivery country, and project details to receive a current commercial quotation.
How can stock availability be confirmed?
Availability should be checked through a current supplier inquiry because stock levels and estimated lead times may change.
Can a higher-capacity alternative be evaluated?
Yes. Another S8FS-C model may be more suitable if the application requires greater current capacity or future expansion.
Is support available for project and bulk orders?
Technical selection and commercial support can be provided for project requirements, planned replacements, and volume-based purchases.
