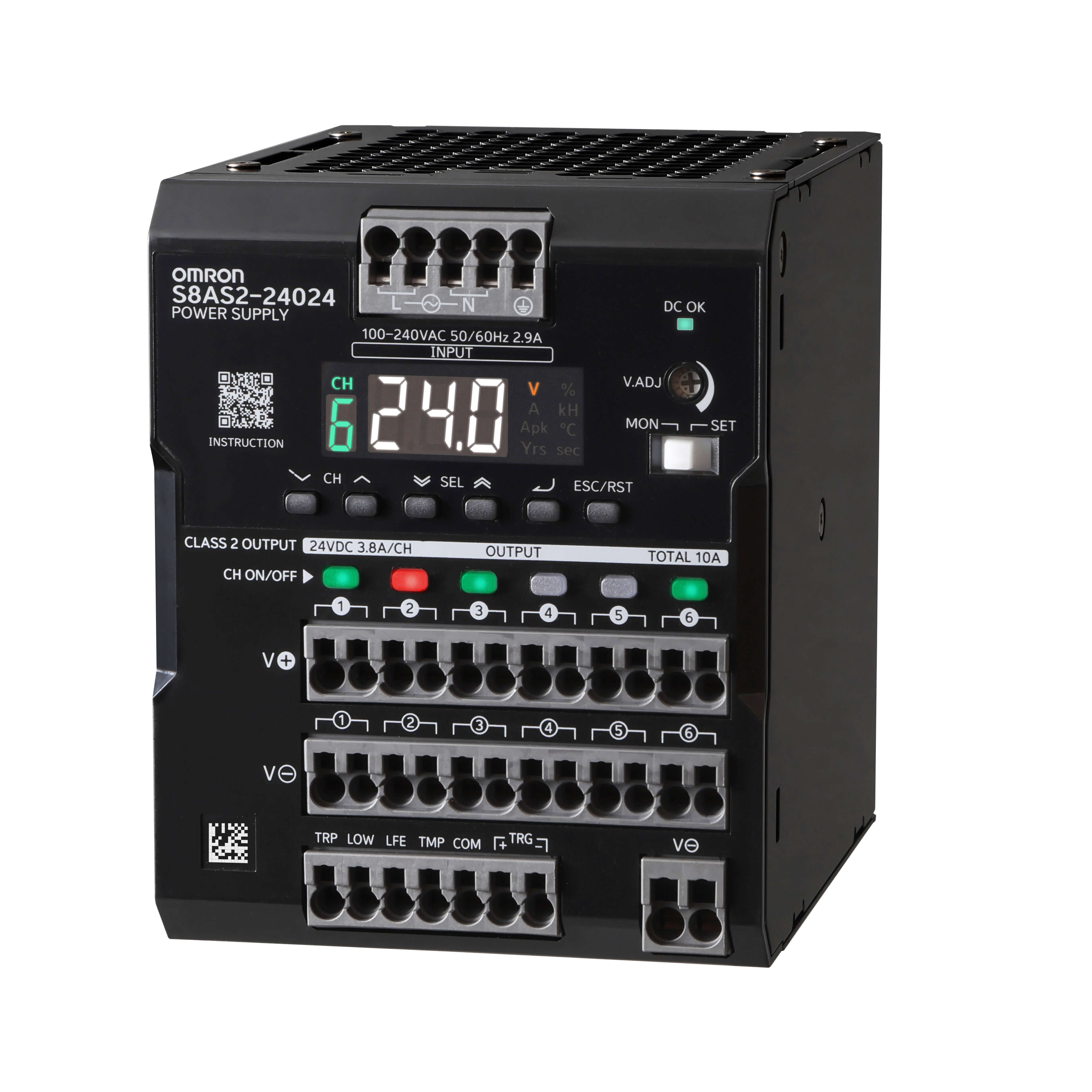

Omron S8AS2-24024-06SN Smart Power Supply
The Omron S8AS2-24024-06SN Smart Power Supply is a 240 W industrial power supply with six protected 24 VDC output branches. It combines AC-to-DC power conversion, branch-level circuit protection, equipment monitoring, and operating-status display in a single control-panel unit. Machine builders, system integrators, and industrial purchasing teams can contact Emaconn to confirm current pricing, availability, delivery time, and suitability for a specific application.
Controlled 24 VDC Distribution Across Six Branches
The S8AS2-24024-06SN is designed for industrial systems where several control devices must receive power from one central 24 VDC source. Its six output branches make it possible to separate connected loads into organised circuits. This structure simplifies fault isolation and helps prevent a problem on one branch from unnecessarily affecting unrelated equipment.
The power supply accepts 85 to 264 VAC at 50 or 60 Hz and provides a total rated output current of 10 A. Its nominal 24 VDC output can be adjusted between 24 and 28 V using the voltage adjustment control. Each output branch has a fixed maximum cutoff current of 3.8 A.
Fixed Protection Parameters for Standardised Operation
The SN variant uses predefined settings for important protection and sequencing functions. Abnormal-current tripping is fixed at 3.8 A per branch, while the abnormal-voltage trip level is fixed at 32.0 V. Its undervoltage alarm threshold is set to 20.0 V.
This fixed-parameter configuration can be advantageous for panel designs that require consistent settings across identical machines. It can reduce the possibility of unauthorised or accidental parameter changes during commissioning and maintenance. However, engineers must confirm that these factory-defined values are appropriate for the connected loads before selecting this model.
The model also uses an extended-time abnormal-current tripping characteristic. This behaviour should be considered when supplying devices that produce temporary startup currents. Load profiles must still remain compatible with the total 10 A output rating and the protection characteristics of each branch.
Integrated Diagnostic and Maintenance Information
The front display enables maintenance teams to review operating information directly at the control panel. Available information includes output voltage, individual branch current, branch peak current, total output current, internal temperature, accumulated running time, and maintenance forecast status.
These monitoring functions support faster troubleshooting. If a machine reports a power-related fault, technicians can inspect individual branch information instead of testing every load from the beginning. Peak-current data can also help identify circuits that experience intermittent current increases during equipment startup or operation.
The maintenance forecast function assists with preventive replacement planning. It does not eliminate the need for routine inspection, but it can provide useful information when maintenance teams are preparing planned shutdowns or reviewing the expected service condition of control-panel components.
Omron S8AS2-24024-06SN Applications in Industrial Automation
The Omron S8AS2-24024-06SN can be used in automation panels that supply multiple low-voltage control circuits. Relevant applications include packaging machines, production lines, material-handling systems, assembly equipment, inspection machinery, and process-control installations.
Its branches may be assigned to PLC equipment, sensors, relays, operator interfaces, communication modules, and other compatible 24 VDC devices. Separating these loads supports structured wiring and allows technicians to identify which part of the machine is associated with a triggered output.
For replacement projects, buyers should confirm that the existing machine uses the same branch count, electrical capacity, terminal arrangement, and fixed protection behaviour. A matching voltage and wattage alone do not establish complete compatibility.
Technical Points to Verify Before Ordering
- 85 to 264 VAC input compatibility
- 24 VDC nominal output requirement
- 10 A total continuous load limit
- Six required output branches
- 3.8 A fixed cutoff current per branch
- Startup and continuous current of each connected device
- Fixed undervoltage and overvoltage protection values
- Available DIN rail and control-panel space
- Required industrial standards and approvals
- Complete S8AS2-24024-06SN part-number suffix
The S8AS2-24024-06SN should not be confused with the S8AS2-24024-06S. Although both models share the same general power and branch configuration, the S model permits adjustment of several protection and sequencing parameters. The SN model uses fixed values. This difference should be reviewed carefully during product selection.
Panel Installation and Operational Checks
The unit is intended for DIN rail installation inside a suitable industrial enclosure. Its IP20 construction does not provide complete protection against water, dust, or unrestricted contact, making the surrounding cabinet and installation environment important parts of the overall system design.
Installation should follow the official Omron instructions regarding mounting clearances, ventilation, conductor selection, protective earth, terminal tightening, and branch wiring. Loads should be assigned according to their electrical function and documented clearly for future maintenance.
During commissioning, technicians should verify input voltage, output polarity, branch currents, total load, and startup behaviour. Series and parallel connections are not supported. If the project requires greater current capacity or additional branches, a properly rated alternative should be evaluated.
Omron S8AS2-24024-06SN International Procurement Support from Emaconn
Emaconn supplies industrial automation components for machine production, maintenance operations, control-panel projects, and replacement requirements. Customers seeking the S8AS2-24024-06SN can request a commercial quotation based on quantity, project schedule, and delivery location.
Support may also include part-number validation, comparison with the adjustable S variant, alternative-model evaluation, and confirmation of key ordering criteria. Since stock status, price, and lead time can change, these commercial details are provided according to the conditions available when the enquiry is received.
Buyers planning recurring or project-based orders can include expected quantities and requested delivery dates in their enquiry. Explore the Omron industrial automation range available through Emaconn or submit the complete application details for technical product selection support.
Conclusion
The Omron S8AS2-24024-06SN Smart Power Supply provides 240 W power conversion, six protected 24 VDC branches, fixed circuit-protection parameters, and integrated operating diagnostics. It is appropriate for standardised machine designs where consistent protection values and branch-level monitoring are required. Verify the load current, startup behaviour, branch arrangement, enclosure conditions, and SN suffix before ordering. Contact Emaconn to request current stock information, pricing, delivery estimates, or an application-based quotation.
Omron S8AS2-24024-06SN Frequently Asked Questions
What is the main purpose of the S8AS2-24024-06SN?
It supplies and distributes 24 VDC power through six protected branches while providing monitoring and diagnostic information for industrial control panels.
What is the rated power of this model?
The unit has a rated capacity of 240 W with a total rated output current of 10 A.
How many output circuits can it manage?
It provides six separate output branches for structured distribution of compatible 24 VDC loads.
Is the branch cutoff current adjustable?
No. On the SN variant, the maximum cutoff output current is fixed at 3.8 A for each branch.
What is the difference between the S and SN variants?
The S variant allows several protection and sequencing parameters to be adjusted. The SN variant uses predefined fixed settings for standardised operation.
Does the unit display individual branch currents?
Yes. Its monitoring functions include branch current, branch peak current, total output current, voltage, temperature, running time, and maintenance information.
Can the S8AS2-24024-06SN be operated in parallel?
No. Parallel and series connections are not supported. A higher-capacity model should be selected when the application requires greater output.
How can buyers obtain a current price?
Send the complete part number, required quantity, delivery country, and project schedule to request a current quotation.
Can availability be checked before an order is placed?
Yes. Stock status and estimated lead time can be confirmed during the enquiry process because availability may vary.
Is support available for selecting between S8AS2 variants?
Yes. Application details such as branch quantity, load currents, required protection settings, and panel conditions can be reviewed to identify the appropriate variant.
