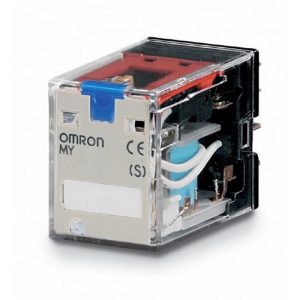

Omron MY2IN1-D2 24VDC (S) Miniature Power Relay
The Omron MY2IN1-D2 24VDC (S) Miniature Power Relay is a 24 VDC plug-in relay designed for industrial control circuits that require dependable switching and built-in coil surge absorption. The D2 designation is important because it indicates a diode feature for coil surge suppression, making this model especially relevant in DC control systems where voltage spikes must be managed carefully.
As part of the Omron MY relay family, this relay is used in automation cabinets, PLC interface circuits, machine control panels, relay logic systems, monitoring circuits, and auxiliary switching applications. For more details about Omron components, visit Omron relay information.
Technical Overview
The Omron MY2IN1-D2 24VDC (S) is generally described as a two-pole miniature power relay with plug-in terminals, DPDT contact form, 24 VDC coil, operation indication, latching lever features, and a built-in diode for coil surge absorption. The DPDT structure allows two independent changeover contacts to be controlled from one coil input.
The built-in diode is a key technical feature. When a DC relay coil is de-energized, the collapsing magnetic field can generate a reverse voltage spike. A diode provides a controlled path for that energy, helping protect driving electronics such as transistor outputs, PLC modules, and control boards. This makes the Omron MY2IN1-D2 24VDC (S) Miniature Power Relay particularly useful where electronic outputs are sensitive to surge voltage.
Application Areas
This relay is suitable for 24 VDC automation systems, PLC output isolation, industrial panel control, signal switching, alarm outputs, interlock circuits, and control systems using semiconductor switching devices. It may also be used where service teams want a socket-mounted relay that can be replaced quickly without disturbing the wiring.
In machine control environments, the diode version is often preferred when the relay coil is driven by a transistor output rather than a mechanical switch. By reducing coil-generated voltage spikes, the relay supports more stable control behavior and helps improve long-term reliability of connected electronics.
Omron MY2IN1-D2 24VDC (S) Engineering Considerations
Because the relay includes a diode, polarity matters. The positive and negative coil connections must be wired correctly. Reversed polarity may prevent proper operation or damage the internal diode. This is one of the most important differences between a standard DC relay and a diode-protected DC relay.
The contact side must also be reviewed carefully. Contact ratings depend on voltage, current, and load type. Inductive loads such as solenoids or small contactor coils may require additional suppression on the load side. The coil diode protects the relay drive circuit, but it does not automatically protect every external load connected to the contacts.
FAQ
What is the Omron MY2IN1-D2 24VDC (S) Miniature Power Relay used for?
It is used in 24 VDC industrial control systems, PLC output circuits, interface panels, machine automation, auxiliary switching, and signal control applications.
What does D2 mean on this relay?
D2 indicates a built-in diode for coil surge absorption. This helps reduce reverse voltage generated when the DC coil is switched off.
Why is a diode useful in a relay coil?
A diode helps protect electronic switching devices from voltage spikes caused by the collapsing magnetic field of the relay coil.
Does polarity matter for this relay?
Yes. Since the relay includes a diode, coil polarity must be connected correctly. Incorrect polarity can prevent operation or damage the internal circuit.
Is this relay suitable for PLC transistor outputs?
Yes, it is often suitable when the PLC output rating matches the relay coil current requirement and the wiring polarity is correct.
Can the relay contacts switch AC and DC loads?
The contacts may switch rated AC or DC loads within the specified limits. The exact voltage, current, and load type should always be checked before use.
What makes this relay different from a standard MY2IN1 24VDC relay?
The built-in diode is the main difference. It provides coil surge absorption, which is valuable for protecting electronic control outputs.
