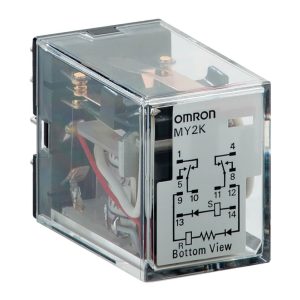

Omron MY2-02-US-SV 24VDC Electromagnetic Relay Guide

The Omron MY2-02-US-SV 24VDC electromagnetic relay is a compact relay for DC control systems, automation equipment, printed circuit boards, and industrial interface circuits. Its 24 VDC coil makes it especially relevant for control panels using standard low-voltage DC power supplies.

Core Technical Features

This model is commonly listed as a DPDT relay with PCB terminals and a 24 VDC coil. DPDT contact configuration allows two independent circuits to be switched simultaneously. The PCB terminal design supports direct board mounting, making it useful in compact equipment where wiring space is limited.

Omron MY series relays are frequently used for general-purpose switching. The 24 VDC versions are often selected in PLC output interfaces, machine control boards, relay modules, signal isolation circuits, and low-voltage automation systems. Distributor and product data commonly identify this part with 5 A class contact capability, although the final usable rating depends on load type and switching conditions.

Why 24 VDC Matters

In industrial automation, 24 VDC is one of the most common control voltages. It offers safer handling than mains voltage control circuits and is widely supported by PLCs, sensors, power supplies, and control modules. The Omron MY2-02-US-SV 24VDC electromagnetic relay fits naturally into this environment when a mechanical contact output is required.

Engineering Considerations

Before choosing this relay, review coil current, contact load, switching frequency, environmental conditions, and mounting method. For DC inductive loads, contact wear can be more severe because DC arcs are harder to extinguish than AC arcs. Protective components such as diodes, varistors, or RC networks may be required depending on the circuit design.

For additional Omron product context, visit Omron product information.

FAQ

What is the Omron MY2-02-US-SV 24VDC relay?

It is a 24 VDC coil electromagnetic relay with DPDT contacts, commonly used for board-level control and switching applications.

Omron MY2-02-US-SV 24VDC Is 24 VDC suitable for PLC systems?

Yes. Many PLC control circuits use 24 VDC, making this relay a practical interface between electronic outputs and switched loads.

Can it switch AC and DC loads?

Relays in this family can switch both AC and DC loads within their rated limits. The allowable current and power depend on voltage and load type.

Is it suitable for high-frequency switching?

Mechanical relays are not ideal for very high-frequency switching. For frequent operation, electrical life and load conditions should be reviewed carefully.

What should be checked before replacement?

Check coil voltage, terminal pattern, contact form, load rating, dimensions, approvals, and whether the original circuit uses suppression components.
