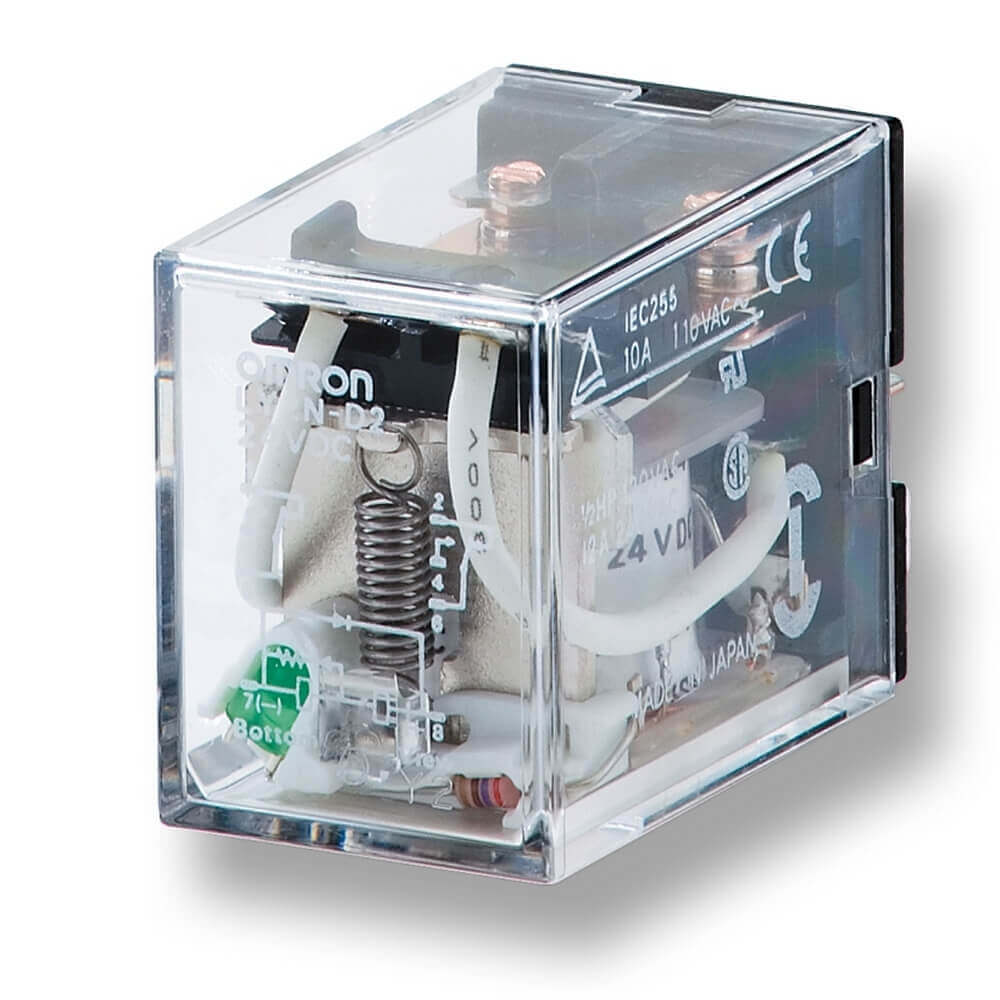

Omron LY2N-D2 12VDC General Purpose Relay: Compact Switching for Low-Voltage Control

The Omron LY2N-D2 12VDC general purpose relay is a plug-in industrial relay built for low-voltage DC control systems. It is part of Omron’s LY relay family, a long-established relay series used in machine control, automation panels, auxiliary switching, power interfaces, and equipment control circuits.

This 12 VDC version is commonly selected when control systems operate from low-voltage DC supplies, battery-backed control circuits, small automation systems, or electronic control equipment. Its combination of DPDT contacts, LED indication, transparent case, and built-in diode protection makes it practical for both new control panel design and maintenance replacement work.

Technical Features

The relay provides two-pole changeover switching through a DPDT contact configuration. This allows one relay coil to operate two independent changeover circuits. In practical terms, it can switch two signal lines, isolate two control paths, or change the state of two related loads at the same time.

The Omron LY2N-D2 12VDC relay has a 10 A carry current rating and silver alloy contacts. This makes it suitable for many general-purpose switching duties when the load characteristics are correctly matched. The plug-in terminal format allows the relay to be used with compatible sockets, helping panel builders maintain neat wiring and allowing technicians to replace the relay quickly during service.

Diode Protection in DC Circuits

One of the most important features of the D2 model is its built-in diode. DC relay coils can generate reverse voltage when power is removed. This voltage spike may affect PLC outputs, transistor drivers, control boards, and other sensitive devices. The built-in diode helps absorb this reverse voltage and supports cleaner switching behavior.

Because the diode is polarity-sensitive, correct wiring is essential. The positive and negative coil terminals must be connected according to the relay and socket markings. This is especially important during replacement work, where an incorrect wiring assumption can lead to non-operation or circuit damage.

Best-Fit Applications

The Omron LY2N-D2 12VDC general purpose relay is well suited for low-voltage automation panels, control interfaces, battery-operated equipment, signal isolation circuits, alarm systems, access control panels, small machine controls, and DC auxiliary switching. It can also be used where a PLC or controller needs to switch a load through relay isolation.

The LED indicator helps users confirm coil energization without immediately reaching for a meter. This simple feature can save valuable time when diagnosing faults in compact panels. The transparent case also helps users visually inspect the relay mechanism and contact movement.

Engineering Considerations

Before using this relay, the designer should confirm the control supply is 12 VDC and that the output device can supply the required coil current. The load side must also be reviewed carefully. Resistive loads, lamps, solenoids, and inductive devices behave differently when switched, so contact rating should not be evaluated by current alone.

Socket selection is equally important. A compatible socket ensures correct terminal alignment, secure mounting, and safe operation inside the control cabinet.

For related relay families and automation components, visit Omron control products.

FAQ

What is the Omron LY2N-D2 12VDC relay mainly used for?

It is mainly used for low-voltage DC control switching, signal isolation, auxiliary control circuits, and automation panel applications.

Does this relay include surge suppression?

Yes. The D2 version includes built-in diode protection for DC coil surge suppression.

Why is polarity important?

The built-in diode works in one direction, so incorrect polarity can stop the relay from operating correctly and may damage the circuit.

What does DPDT mean?

DPDT means double pole double throw. The relay can switch two separate changeover circuits at the same time.

Is the LED indicator useful?

Yes. It gives a quick visual signal when the coil is energized, helping with installation checks and fault diagnosis.

Can this relay be used with PLC outputs?

Yes, provided the PLC output rating, coil current, voltage, and polarity match the relay requirements.

Is this relay designed for direct PCB mounting?

No. It is a plug-in relay intended for use with a compatible relay socket.
