Omron LY2N-D2 100/110VDC General Purpose Relay: Technical Guide for DC Control Systems

The Omron LY2N-D2 100/110VDC general purpose relay is a plug-in electromechanical relay designed for industrial control circuits that require dependable switching with a 100/110 VDC coil. As a member of the Omron LY series, it is widely used in machine control panels, automation cabinets, auxiliary control circuits, signaling systems, and relay logic applications where DC control voltage is part of the system architecture.

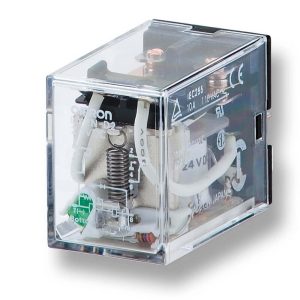

This model is especially useful in environments where clear operating status and coil protection are important. The LY2N-D2 design includes an LED indicator, transparent case, plug-in terminal structure, and built-in diode protection. These features make it practical for maintenance teams, panel builders, and automation engineers who need a relay that is easy to inspect, replace, and integrate into existing control layouts.

Technical Overview

The relay uses a DPDT contact arrangement, also known as two Form C contacts. This means one coil action can switch two independent circuits at the same time. The contact structure is commonly used for signal transfer, interlocking, polarity control, alarm switching, and auxiliary circuit separation.

The Omron LY2N-D2 100/110VDC relay is rated for a 10 A carry current and uses silver alloy contacts. Silver alloy is commonly selected in industrial relays because it supports reliable conductivity and balanced performance for general switching duties. The relay is designed for plug-in socket mounting, which helps reduce downtime when service or replacement is required.

Built-In Diode Protection

The “D2” designation identifies a DC relay version with built-in diode protection. When a DC relay coil is de-energized, stored magnetic energy can generate reverse voltage. The diode helps suppress this reverse voltage and protects surrounding control electronics from unwanted electrical stress.

This makes the relay a suitable choice for circuits connected to PLC outputs, DC control modules, signal interfaces, and electronic control boards. Correct polarity must be observed when wiring DC coil relays with diode protection, because reversing polarity can prevent proper operation or damage the circuit.

Where This Relay Is Used

The Omron LY2N-D2 100/110VDC general purpose relay is often found in industrial automation panels, power distribution control systems, machine safety interfaces, motor control auxiliary circuits, annunciator systems, and process equipment. It is also used where a higher DC control voltage is already available and where a visible relay status indicator helps simplify troubleshooting.

The transparent case gives technicians a direct view of the relay mechanism, while the LED indicator shows whether the coil is energized. In busy electrical panels, these details can reduce diagnostic time and help maintenance teams quickly identify whether a problem is related to control voltage, relay operation, or downstream load wiring.

Selection Notes

Before selecting this relay, engineers should confirm coil voltage, load type, switching current, socket compatibility, operating environment, and panel wiring layout. The relay should be matched carefully with the electrical characteristics of the load. Inductive loads, such as solenoids and contactor coils, may require additional suppression depending on the circuit design.

For more details about related components, visit Omron industrial automation products.

FAQ

What is the Omron LY2N-D2 100/110VDC relay used for?

It is used for switching control signals and loads in DC-based industrial automation circuits, machine panels, alarm systems, and auxiliary control applications.

What does D2 mean on this relay?

D2 indicates a DC coil relay version with built-in diode protection. The diode helps suppress reverse voltage generated when the relay coil is turned off.

Is polarity important for this relay?

Yes. Because this relay has built-in diode protection, correct DC polarity is essential for safe and reliable operation.

Does this relay have an LED indicator?

Yes. The LED indicator helps confirm whether the coil is energized, making maintenance and troubleshooting easier.

What contact form does it use?

It uses DPDT contacts, allowing two separate circuits to be switched from one coil operation.

Can it be replaced easily?

Yes. Its plug-in design allows replacement through a compatible socket without rewiring the entire control circuit.

Is it suitable for PLC output circuits?

It can be suitable when the PLC output rating, coil voltage, current requirements, and polarity are correctly matched.
